STUDEBAKER WIRING DIAGRAMS
ALSO DASH BOARDS PICTURES

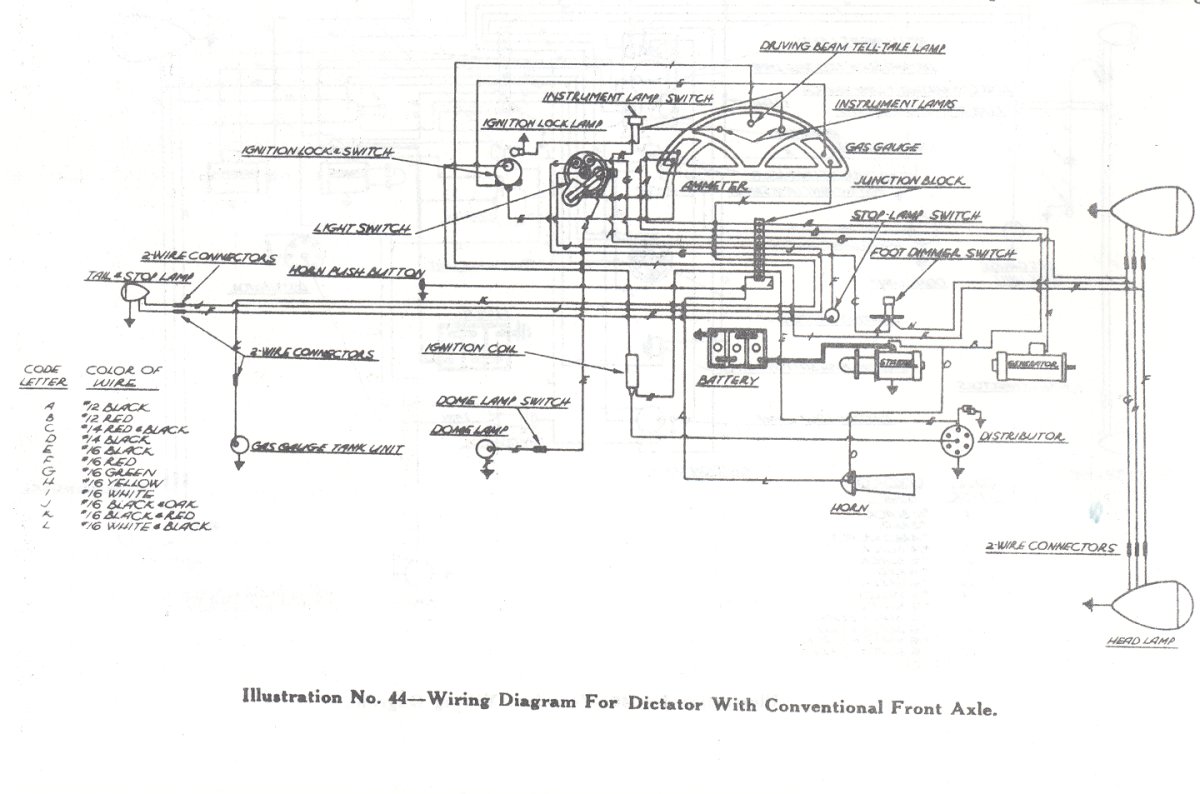

- 1936 Dictator

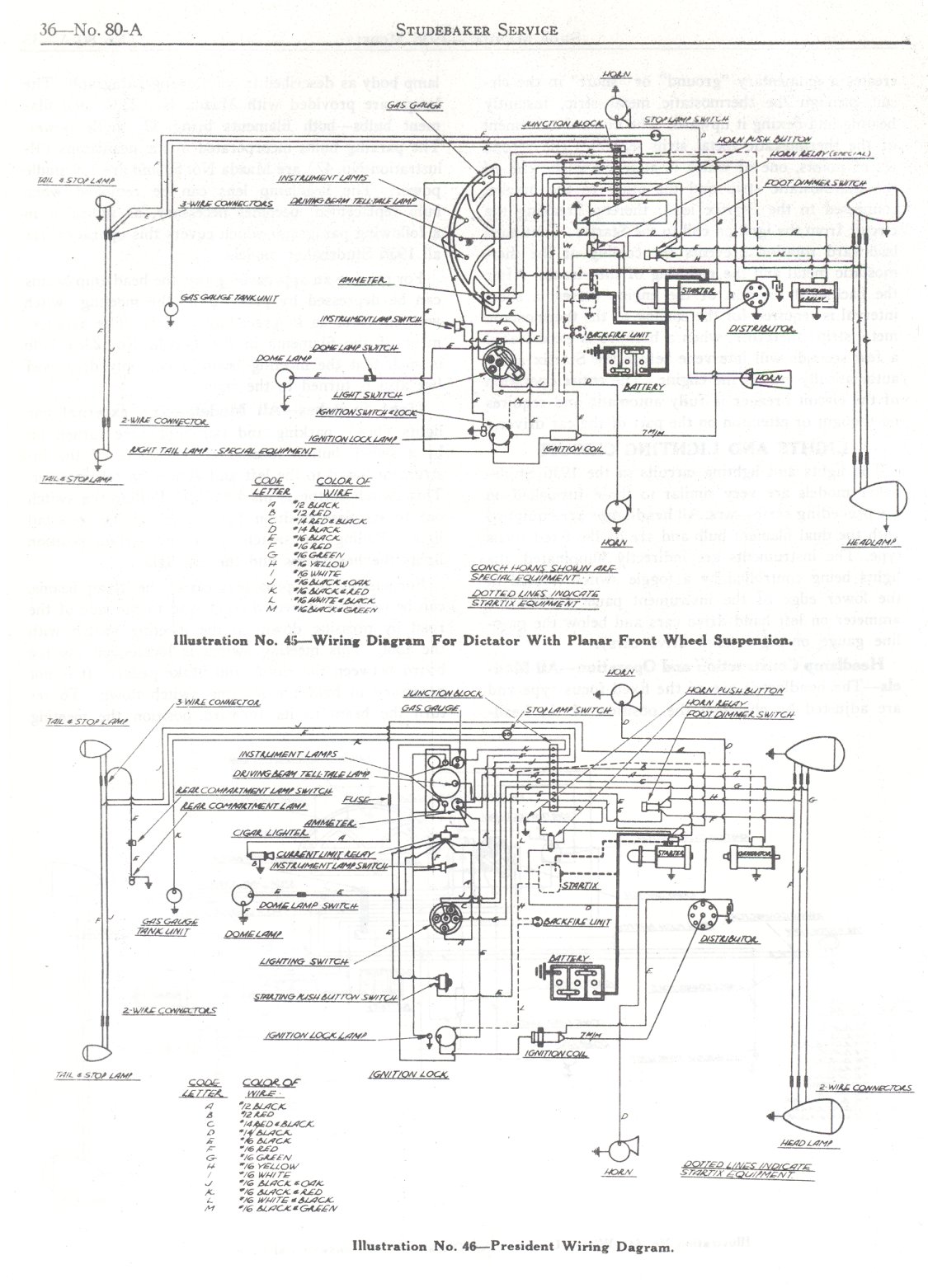

- 1936 Commander and President

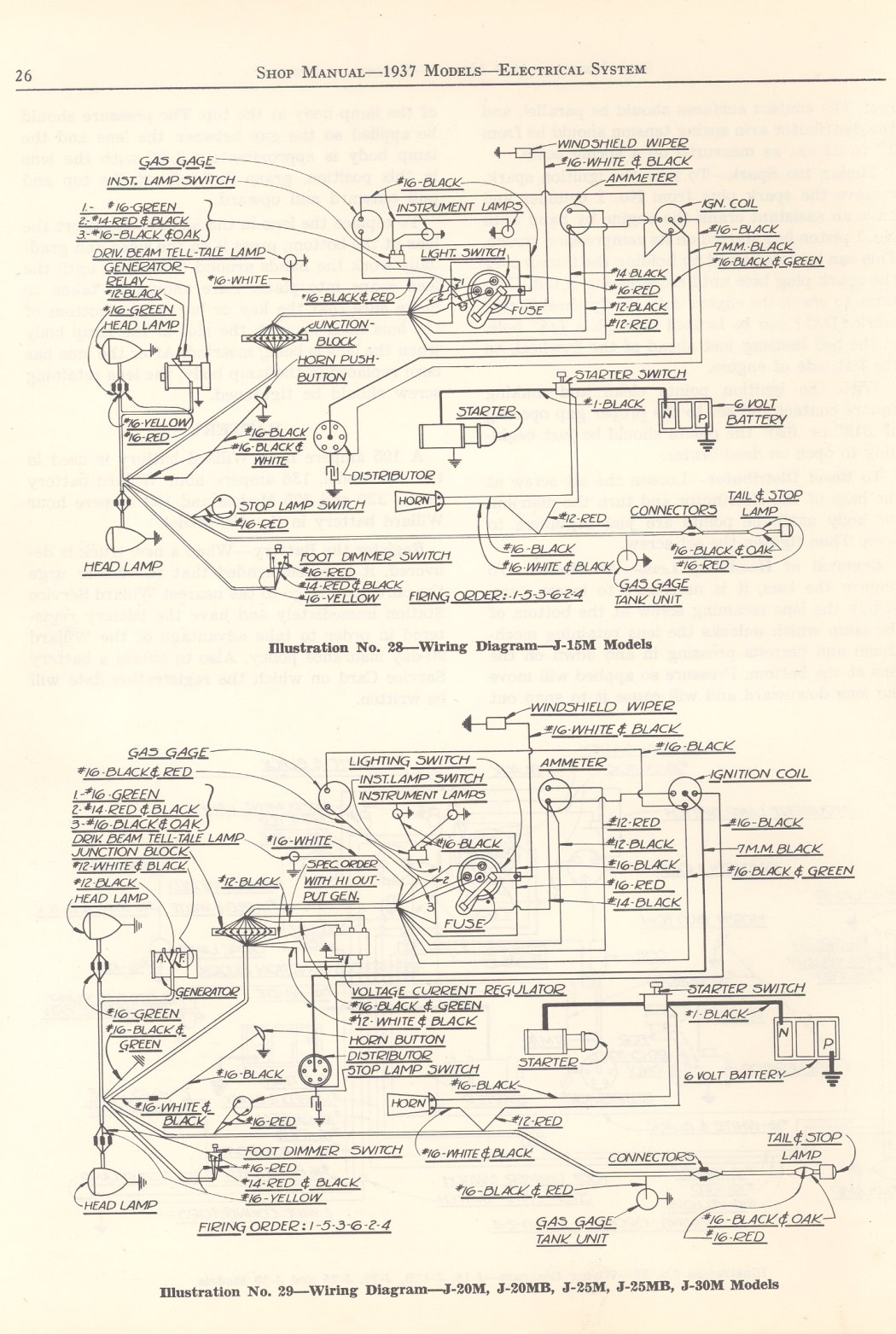

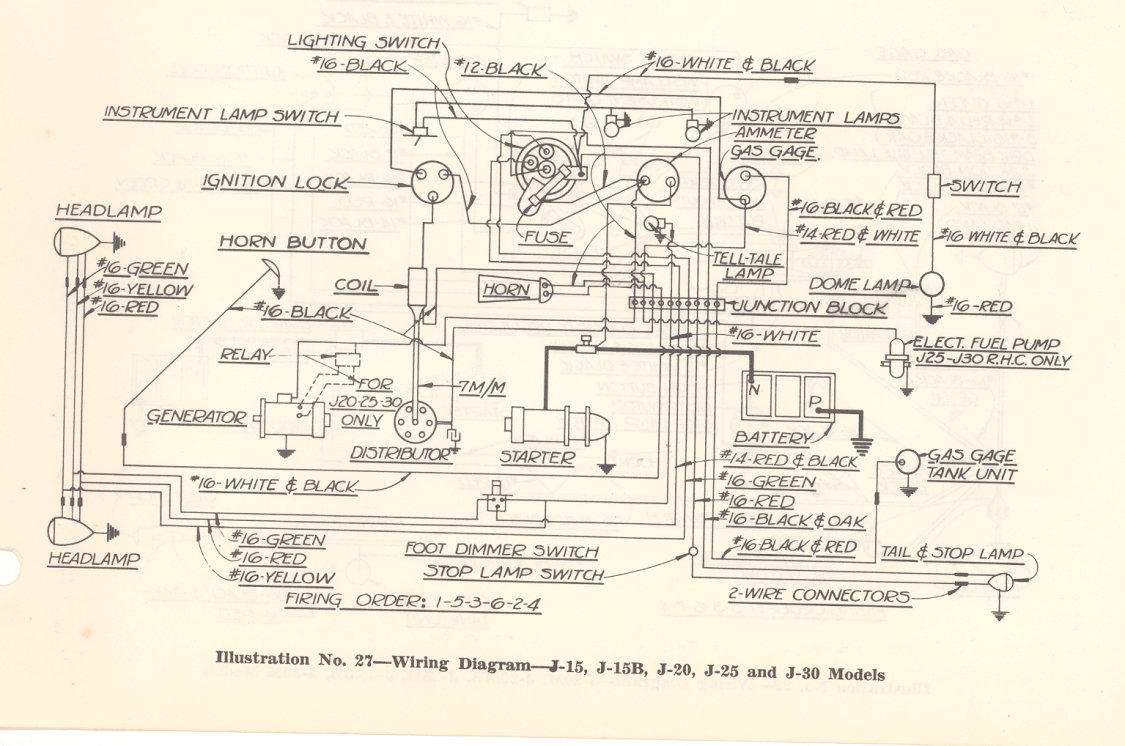

- 1937 1 1/2 Ton Standard Truck and Bus
- 1937 2-3 Ton Cab Forward Trucks and Bus

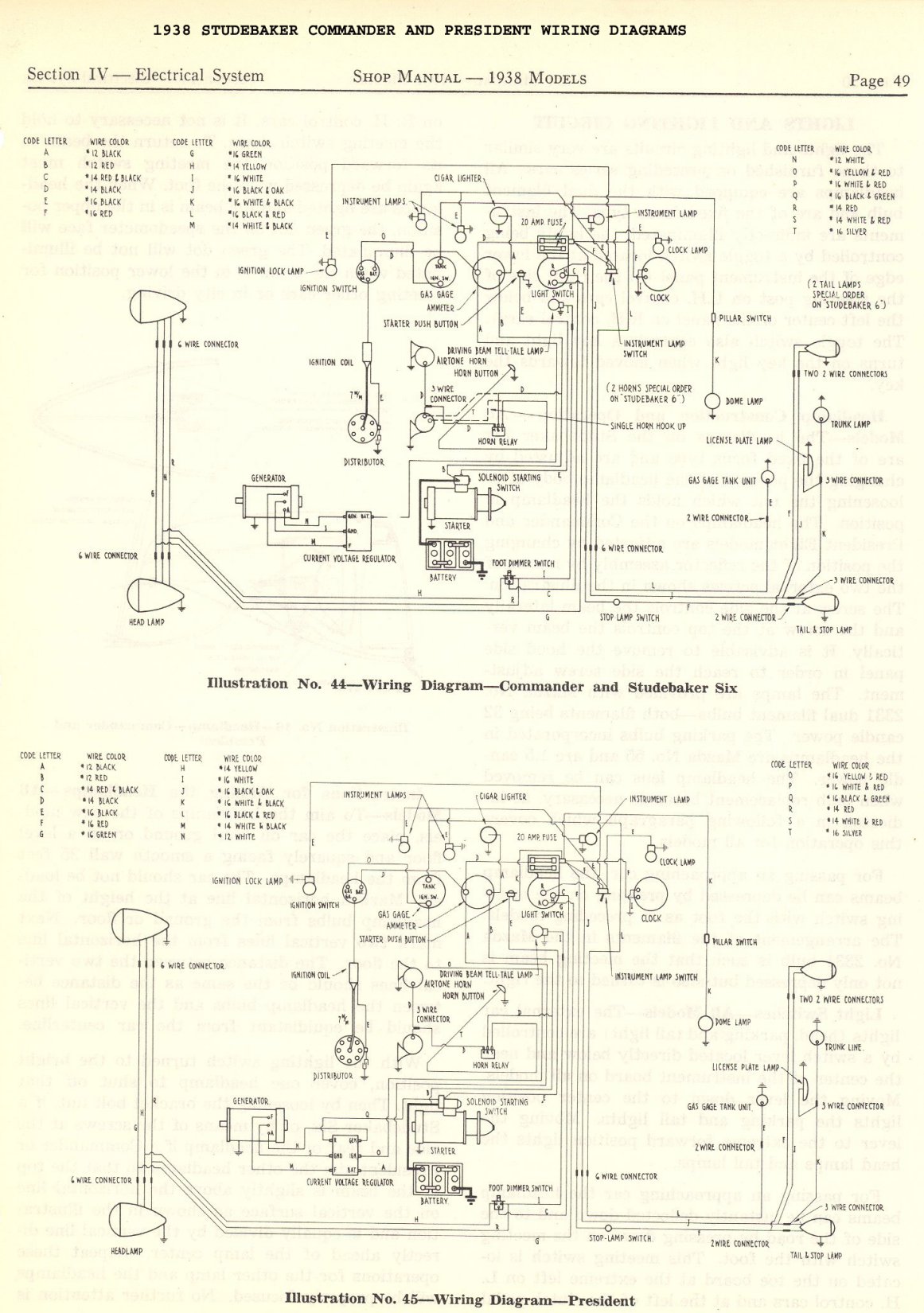

- 1938 Commander and President

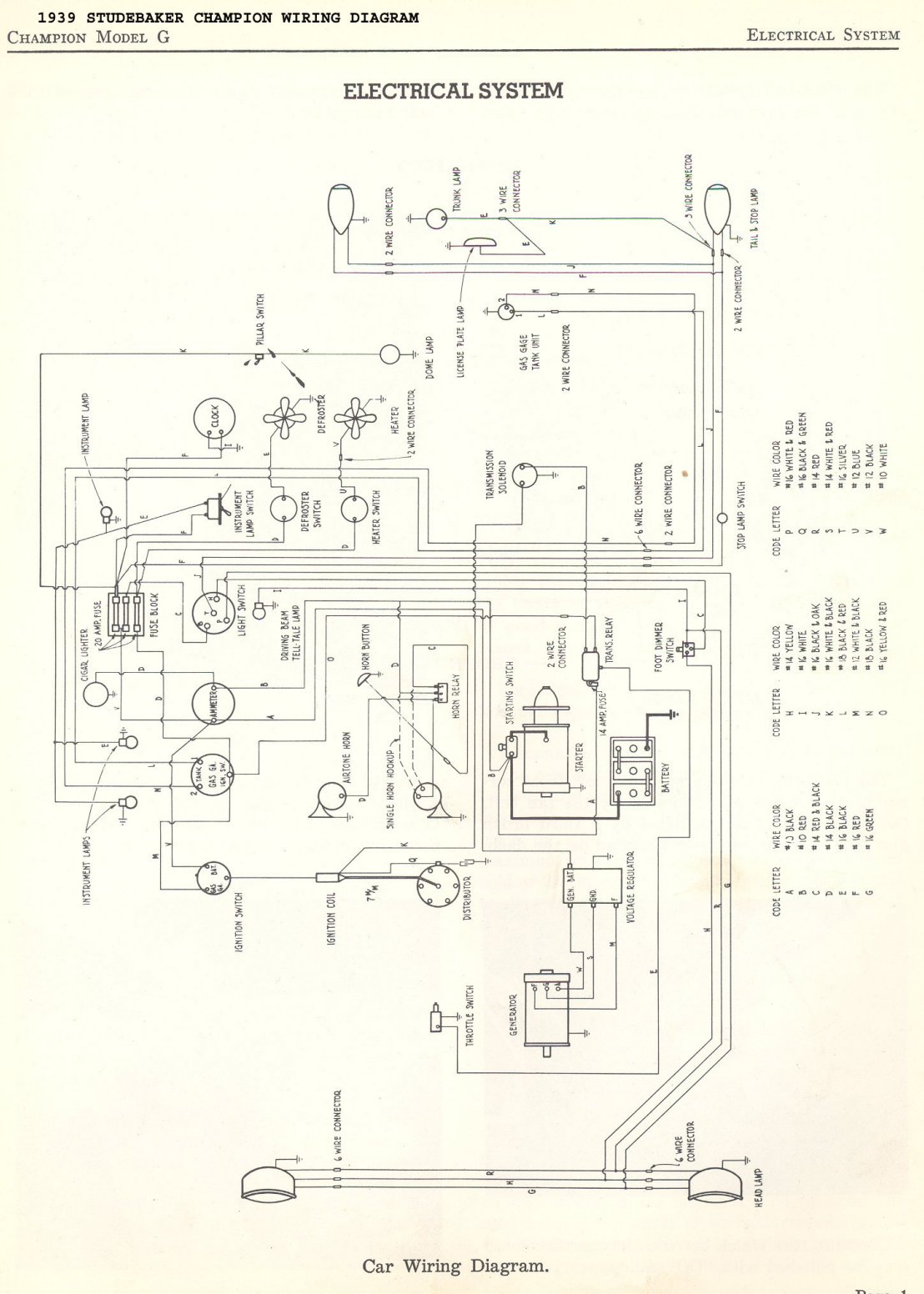

- 1939 Champion

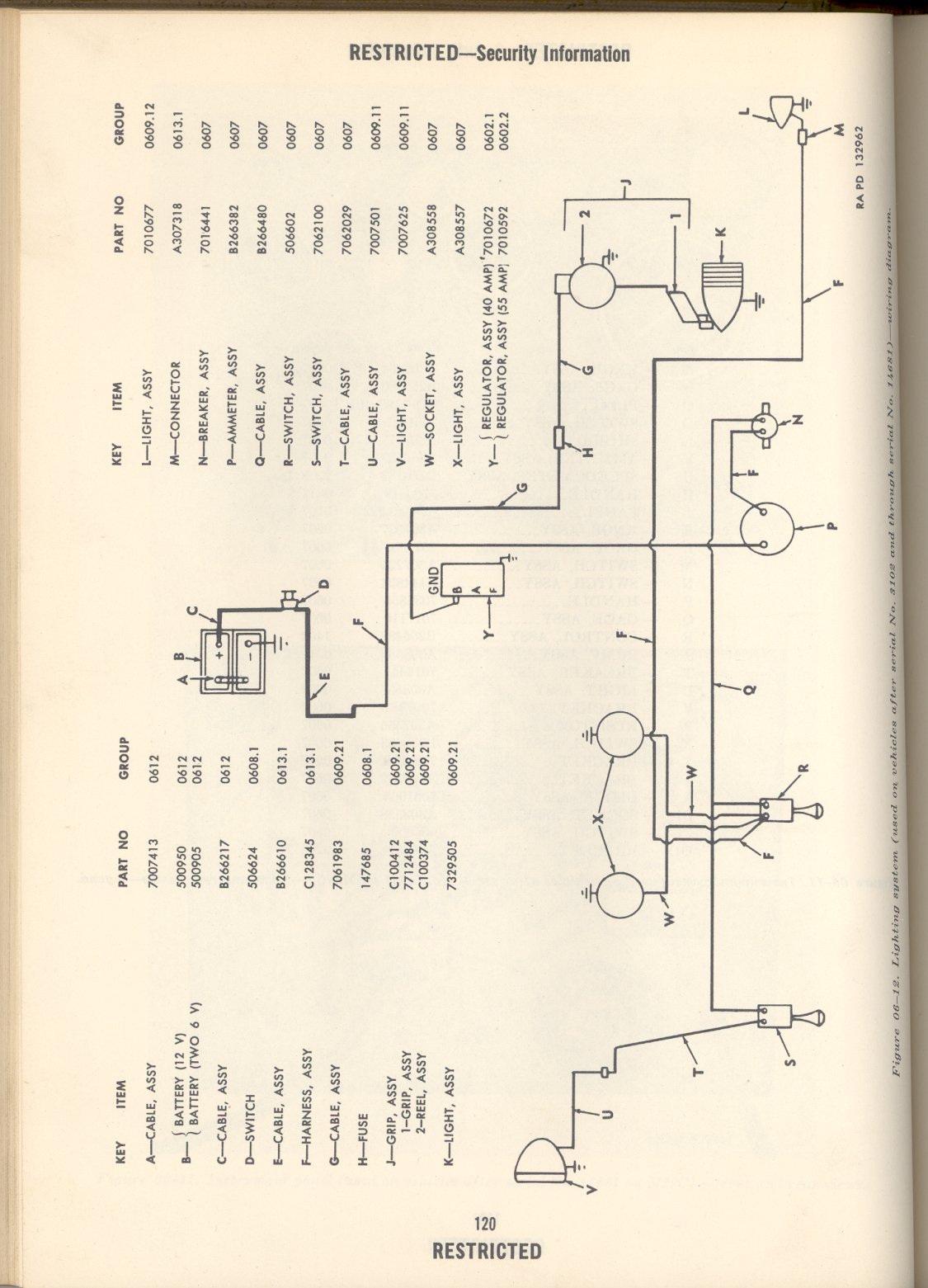

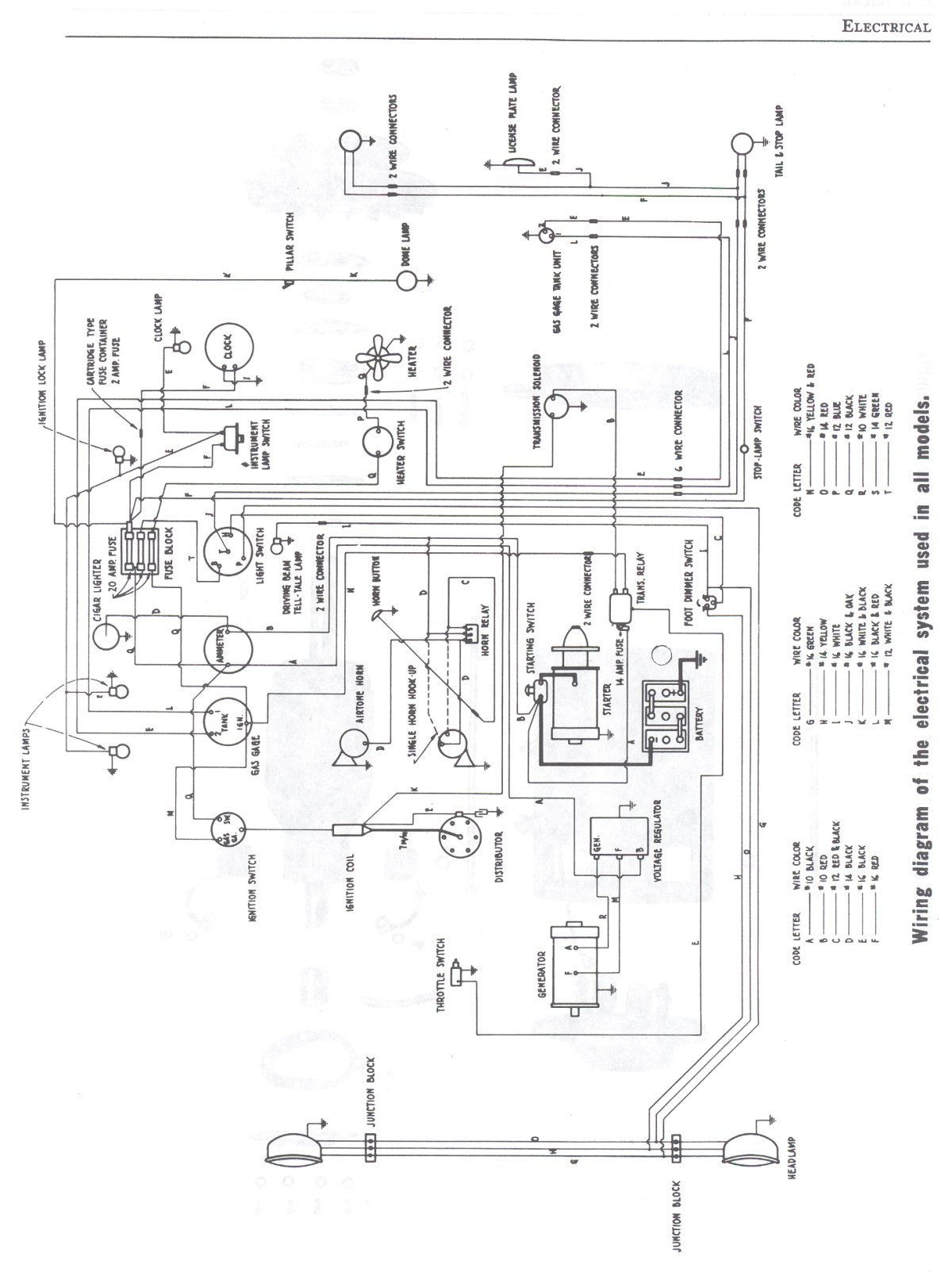

- M29, M29C Cargo, Carrier And Amphibian Weasel Early Lighting and Fuel

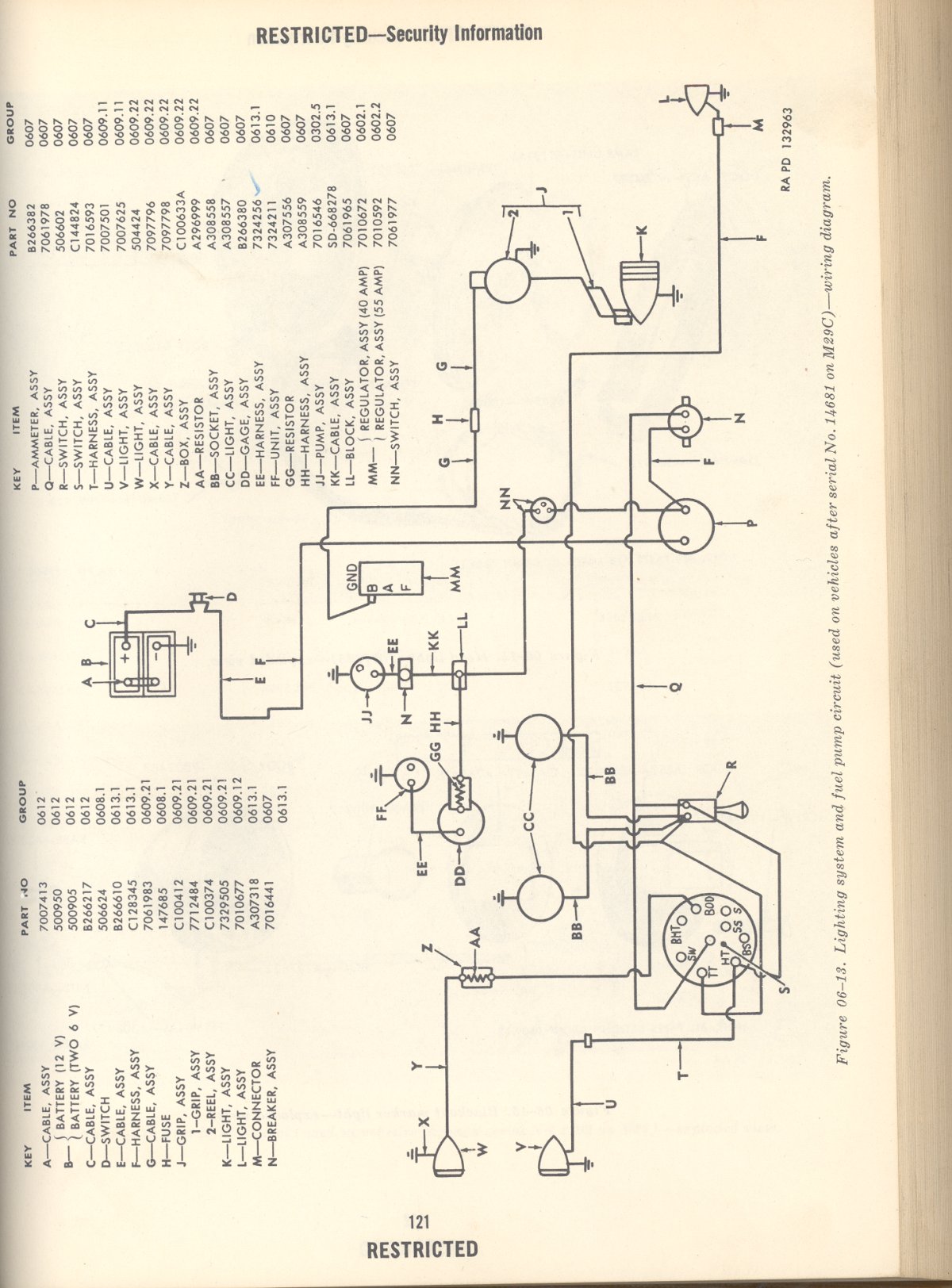

- M29, M29C Cargo, Carrier And Amphibian Weasel Late Lighting and Fuel

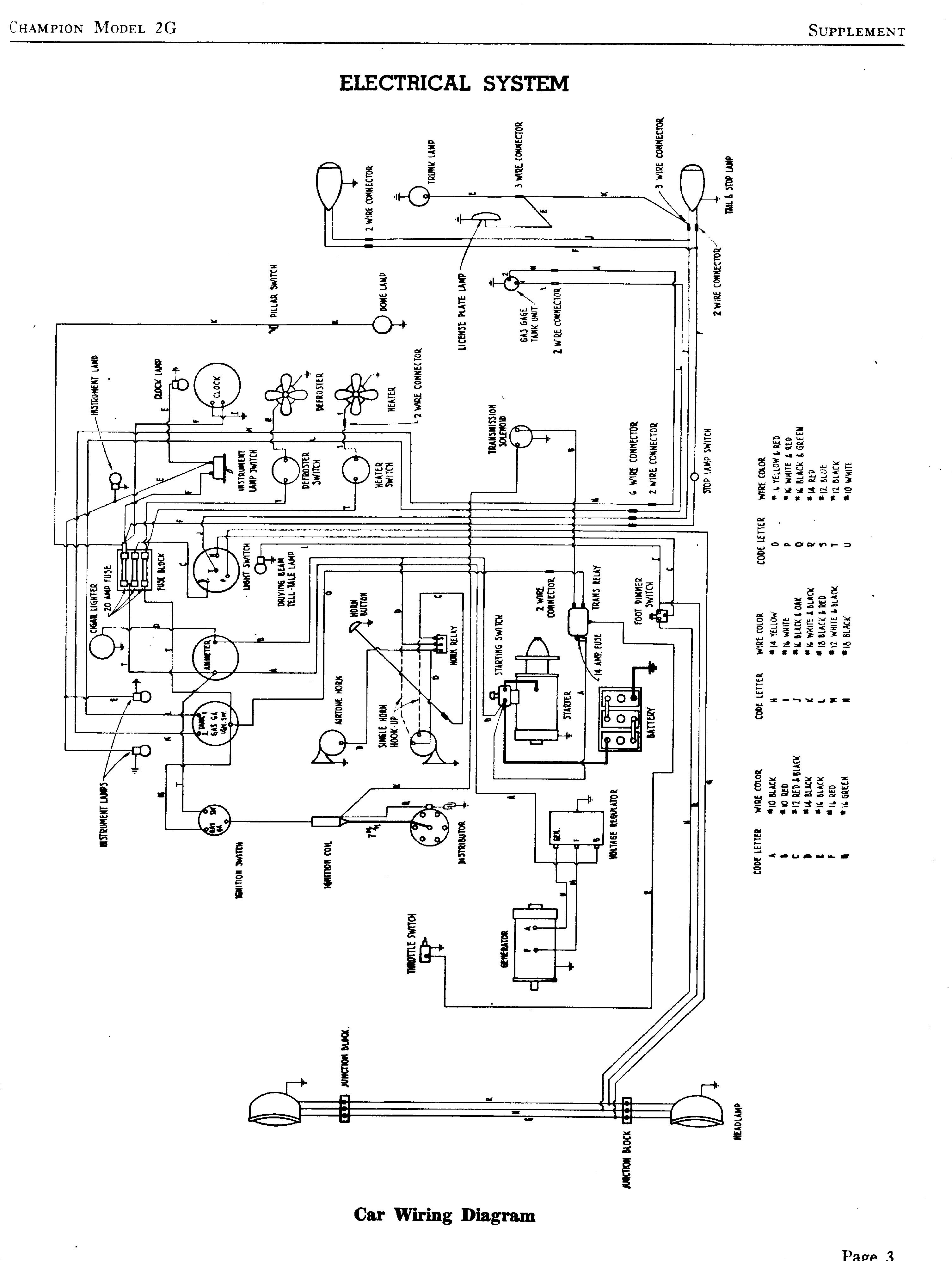

- 1940 Champion

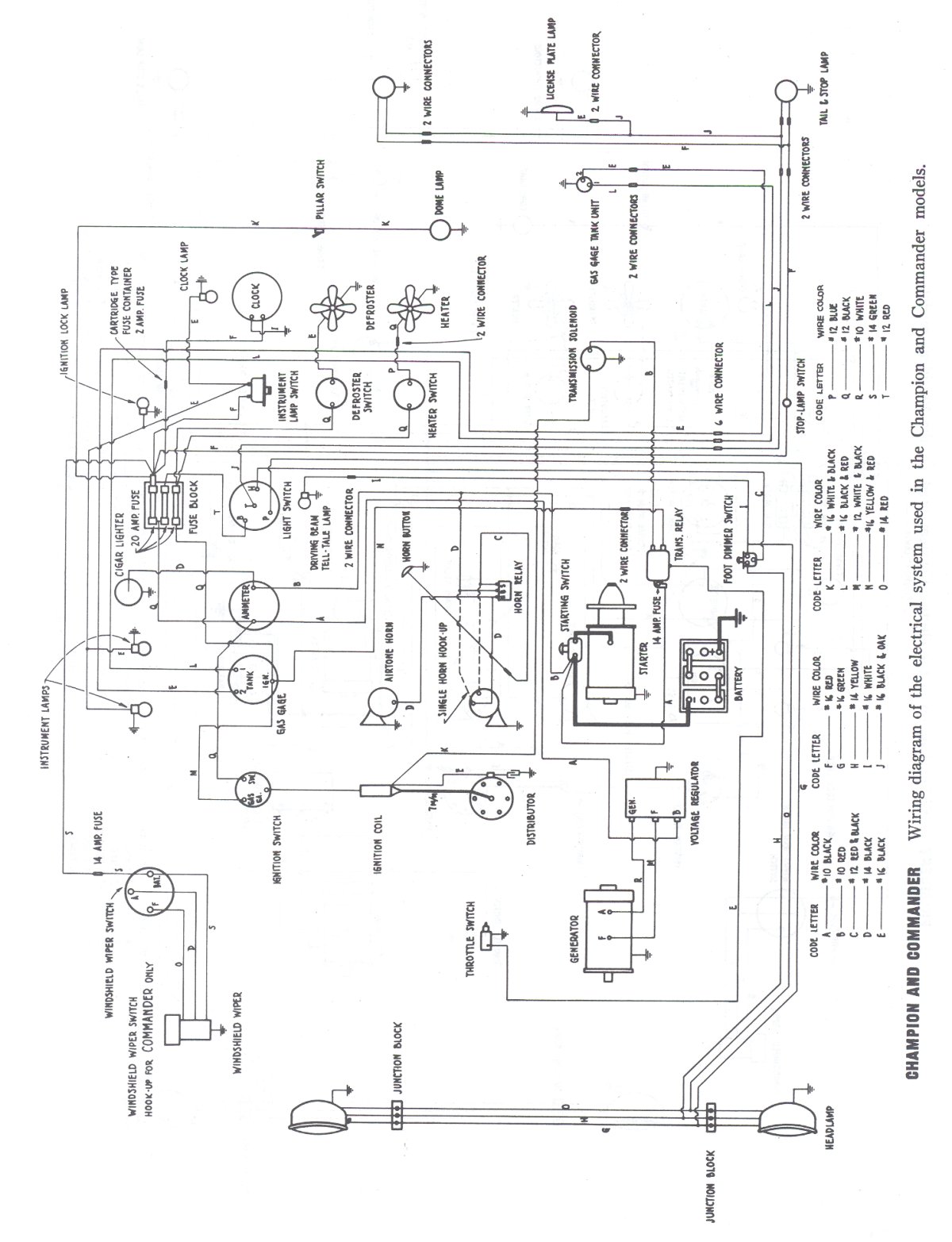

- 1941-1946 Champion

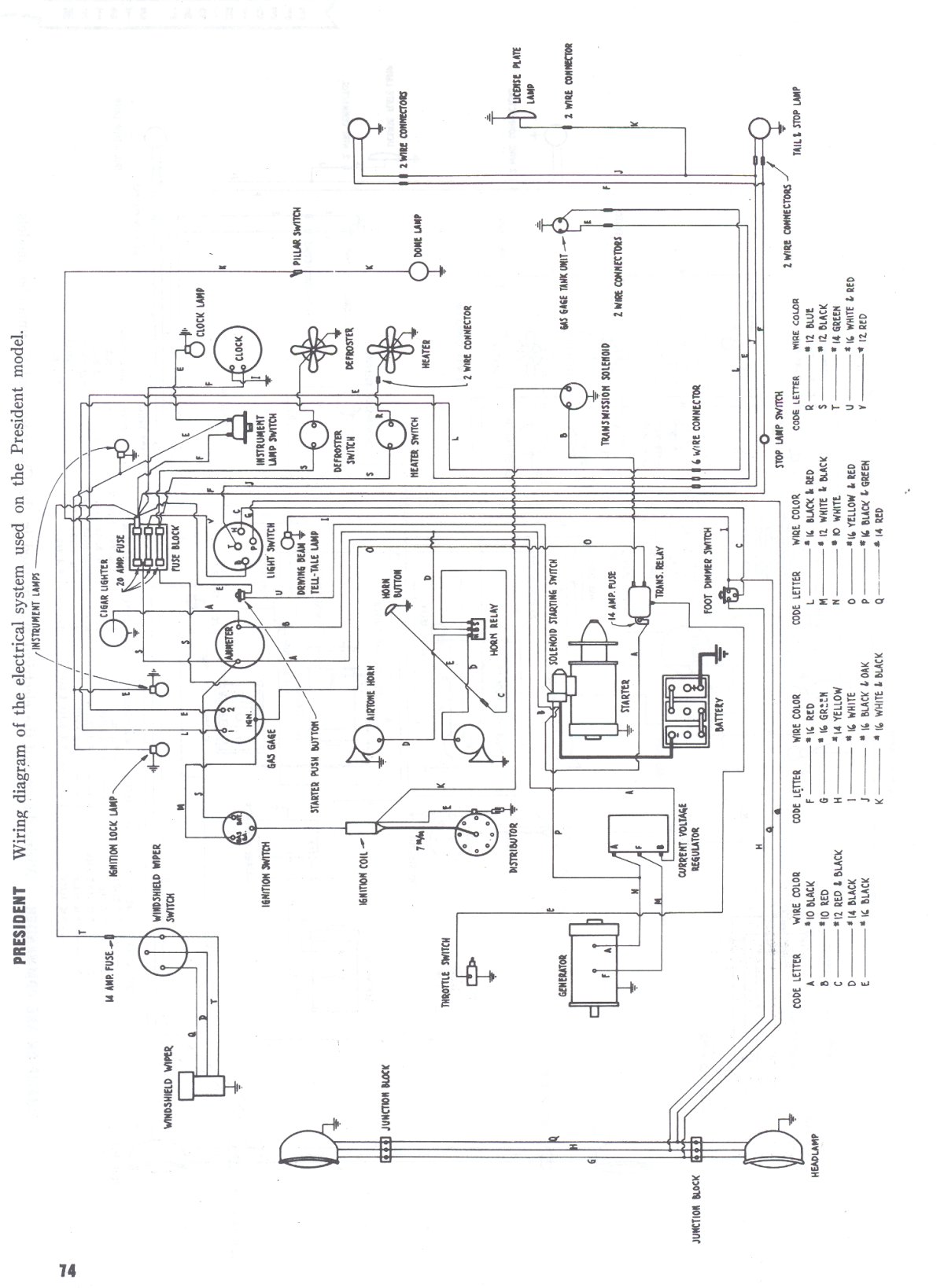

- 1941-1946 President

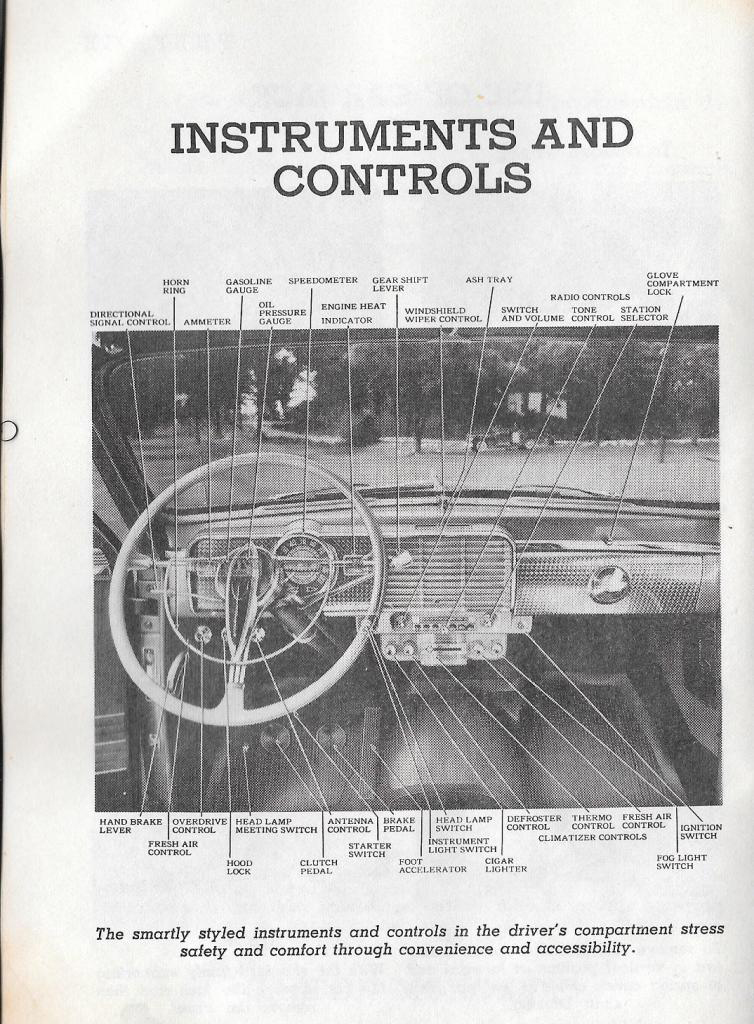

- 1942 Dash

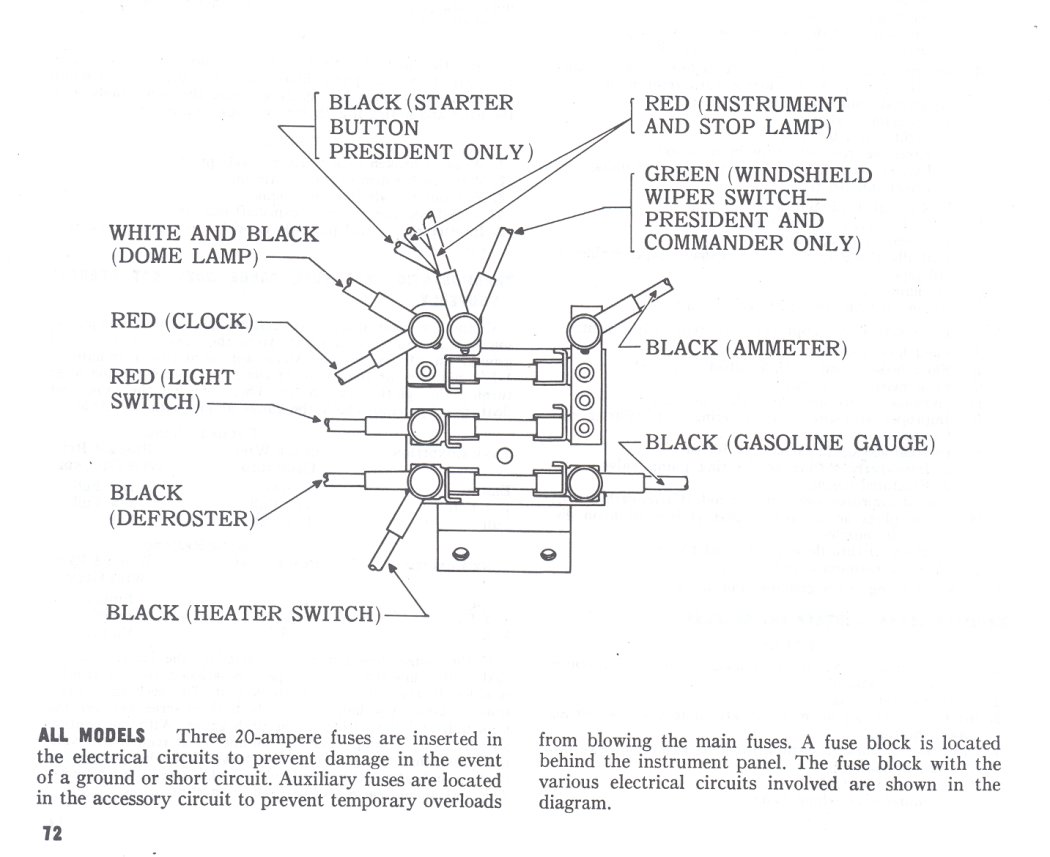

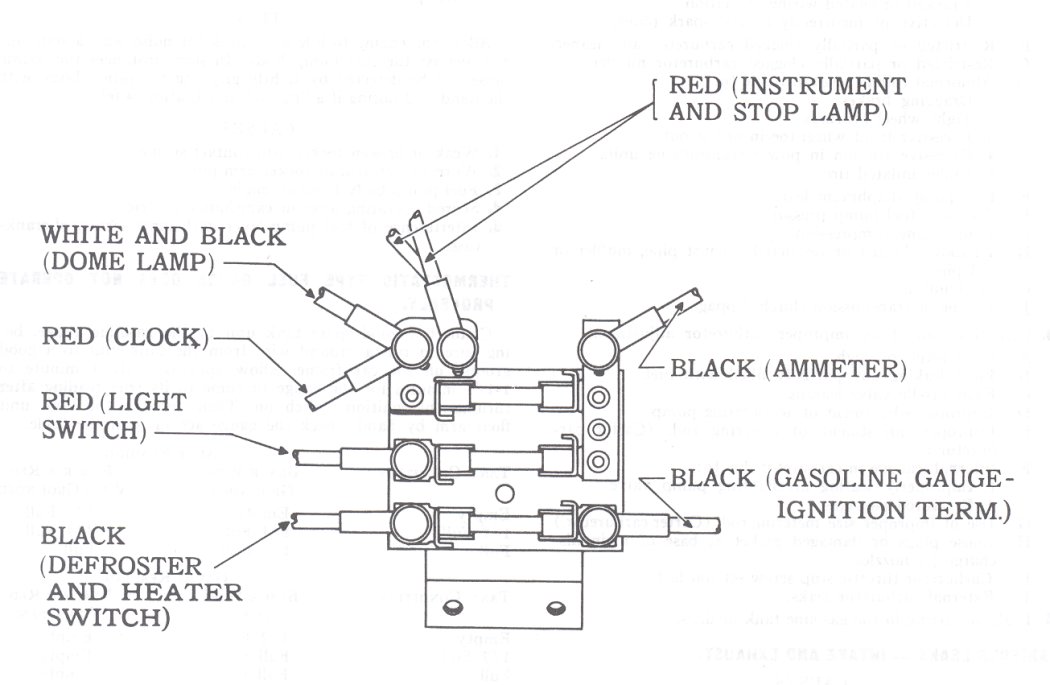

- 1941-1946 Car Fuse Area
- 1941-1948 All Trucks
- 1941-1948 All Trucks Fuse Area

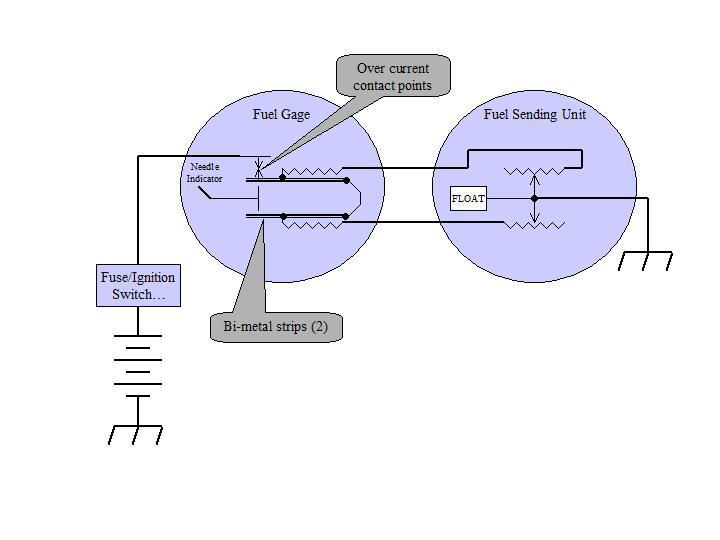

- 1941-1948 All Trucks Tank Unit Wiring

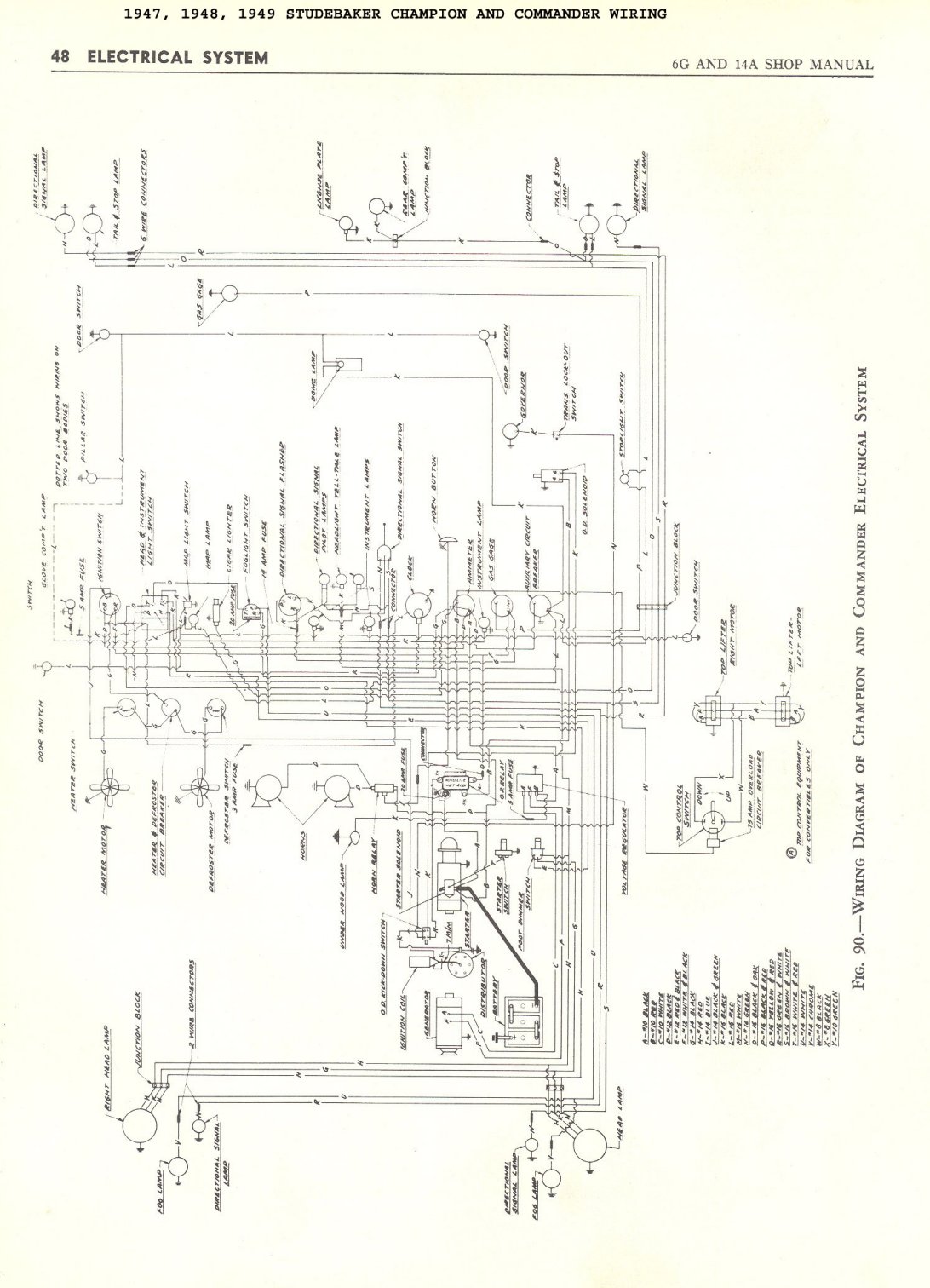

- 1947, 1948, 1949 Champion and Commander
- 1947, Champion, Commander, Color code

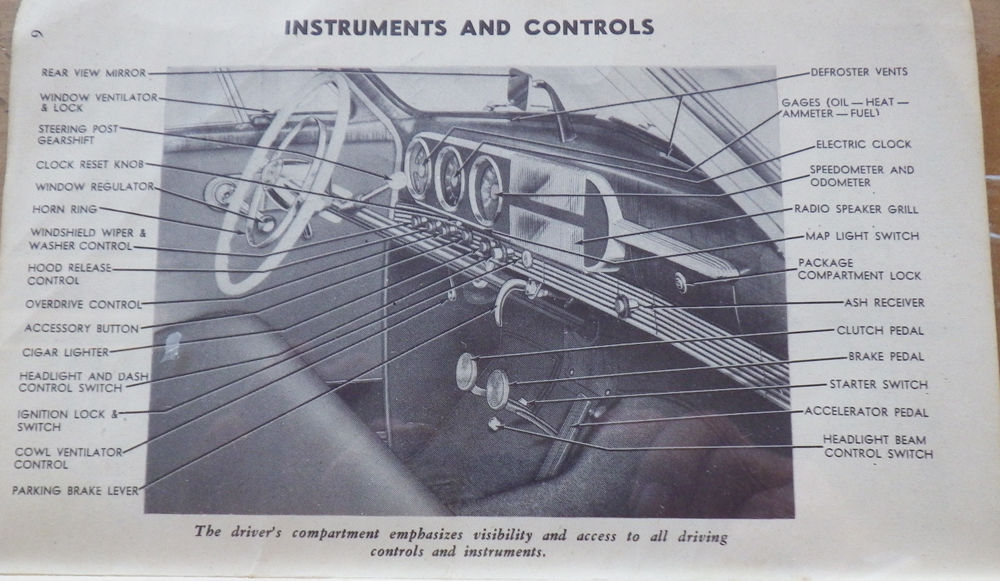

- 1948 Commander Dash

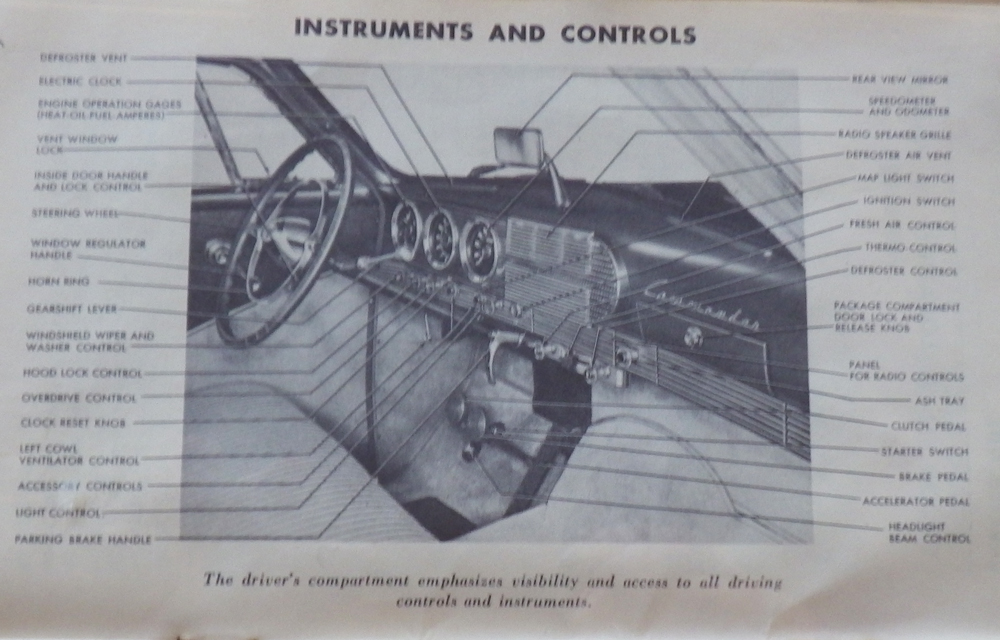

- 1949 Land Cruiser Dash
- 1949-1953 2-R Trucks

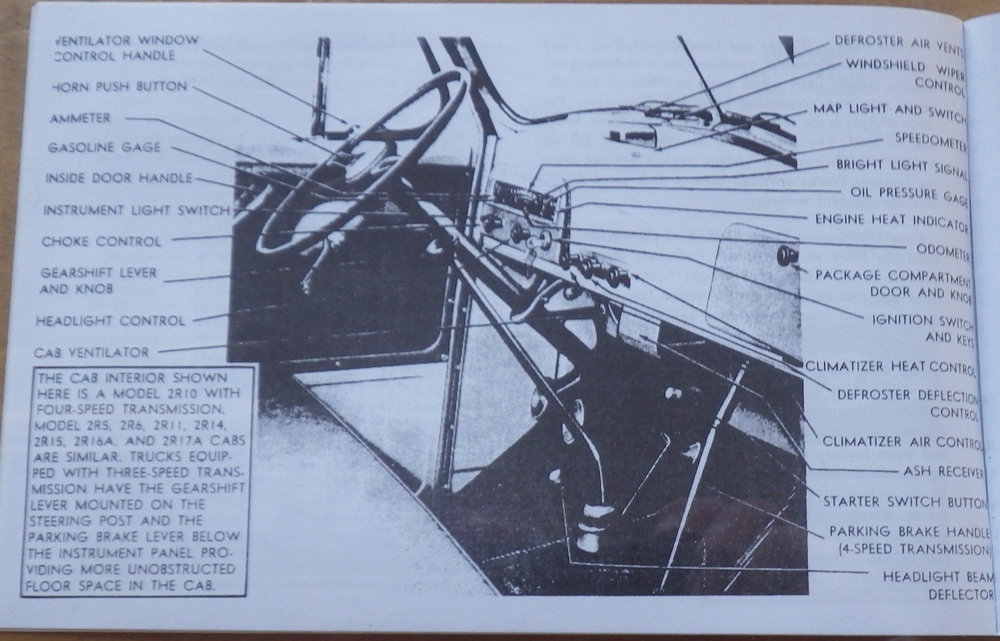

- 2R Truck Dash
- 1936-1955 Over Drive Wiring and Help

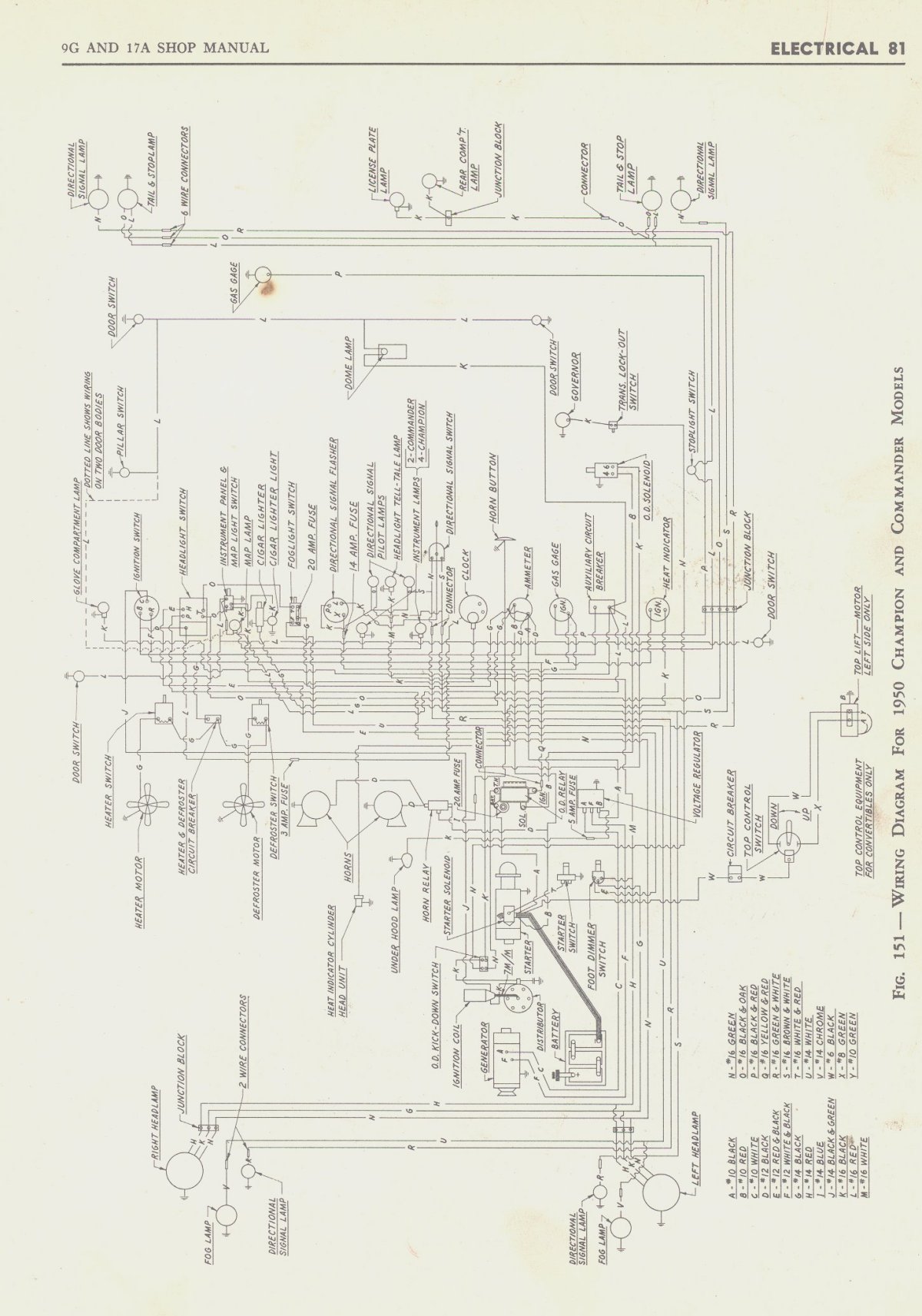

- 1950 Champion and Commander

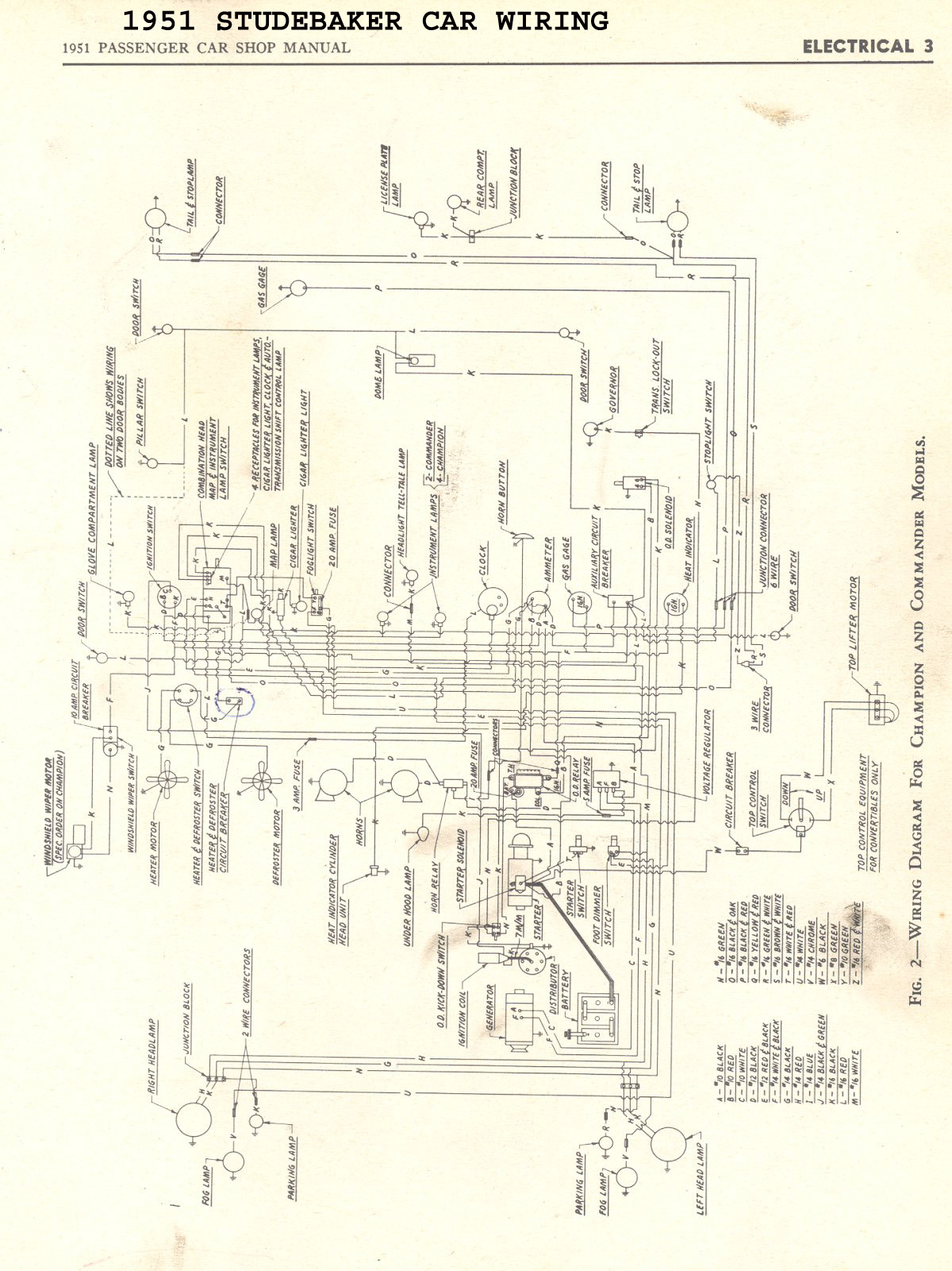

- 1951 Champion and Commander

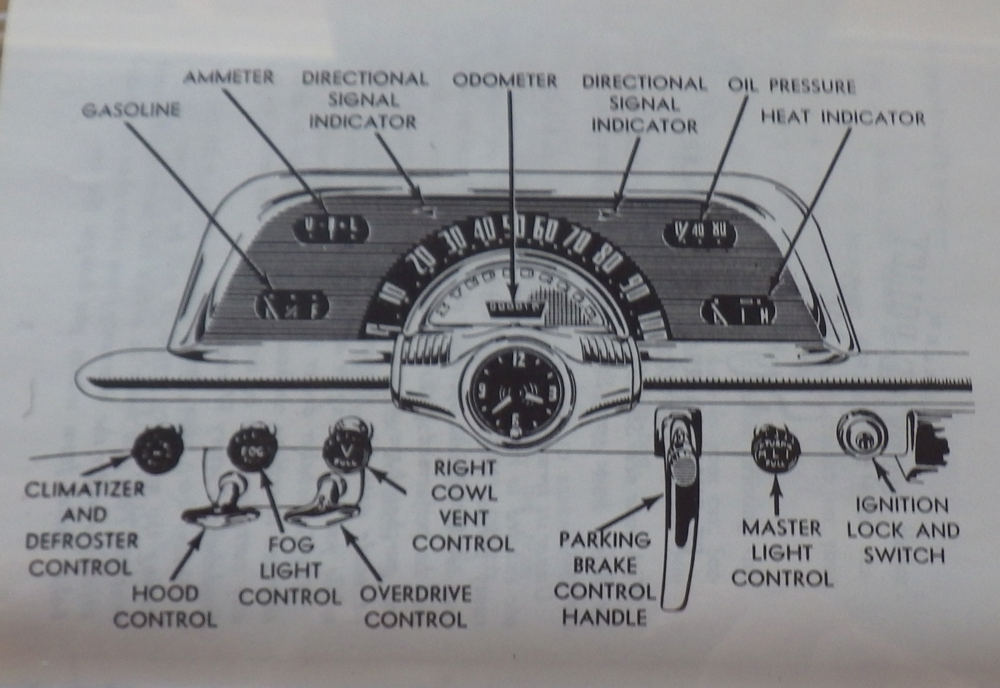

- 1951 Champion Dash

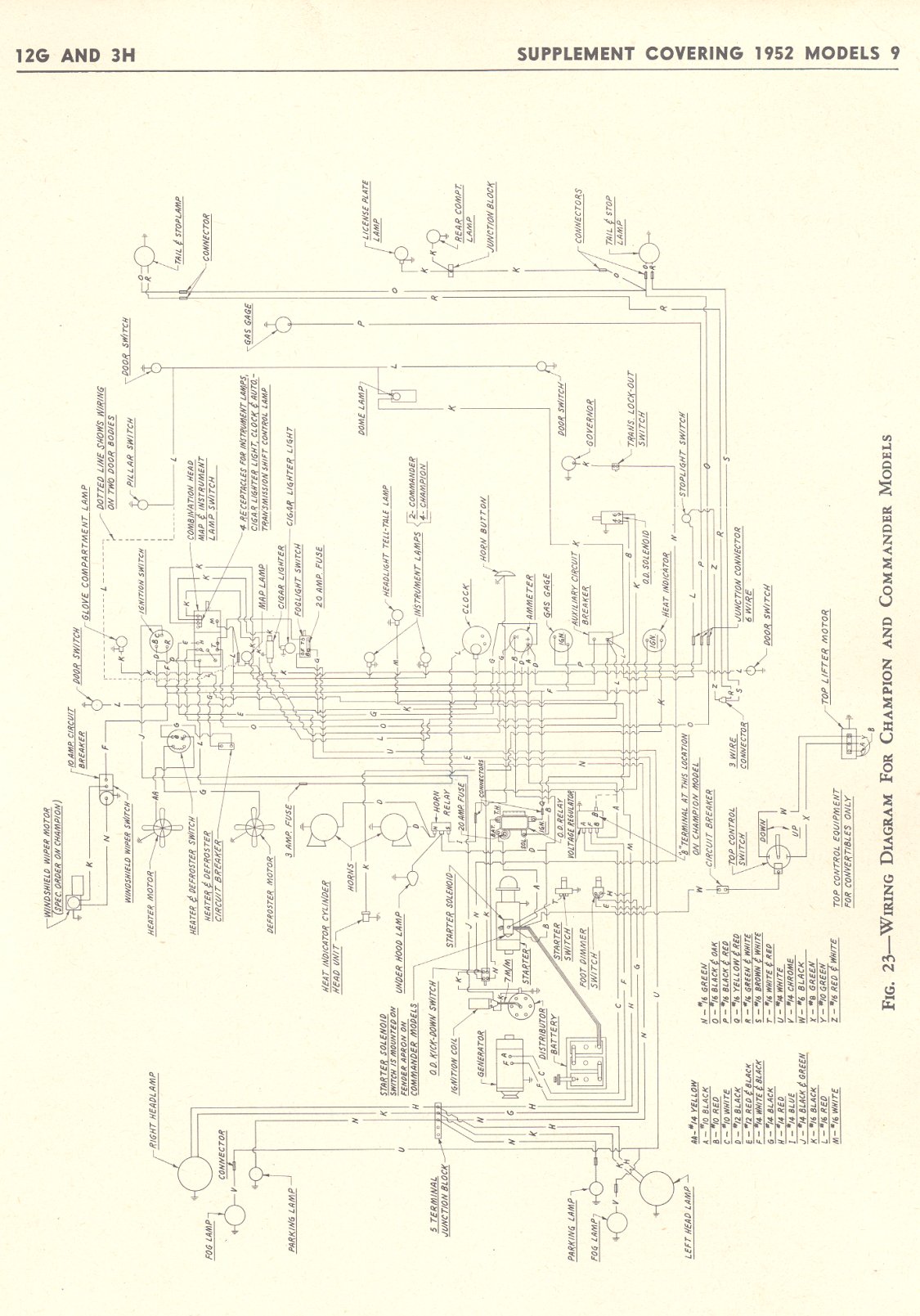

- 1952 Champion and Commander

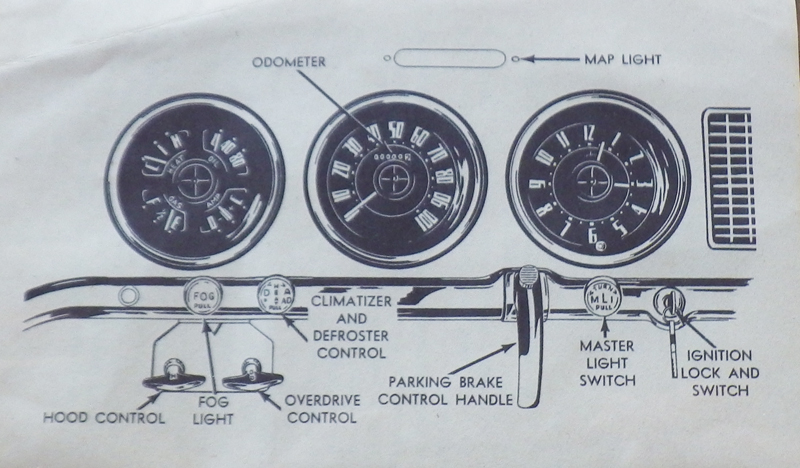

- 1952 Commander Dash

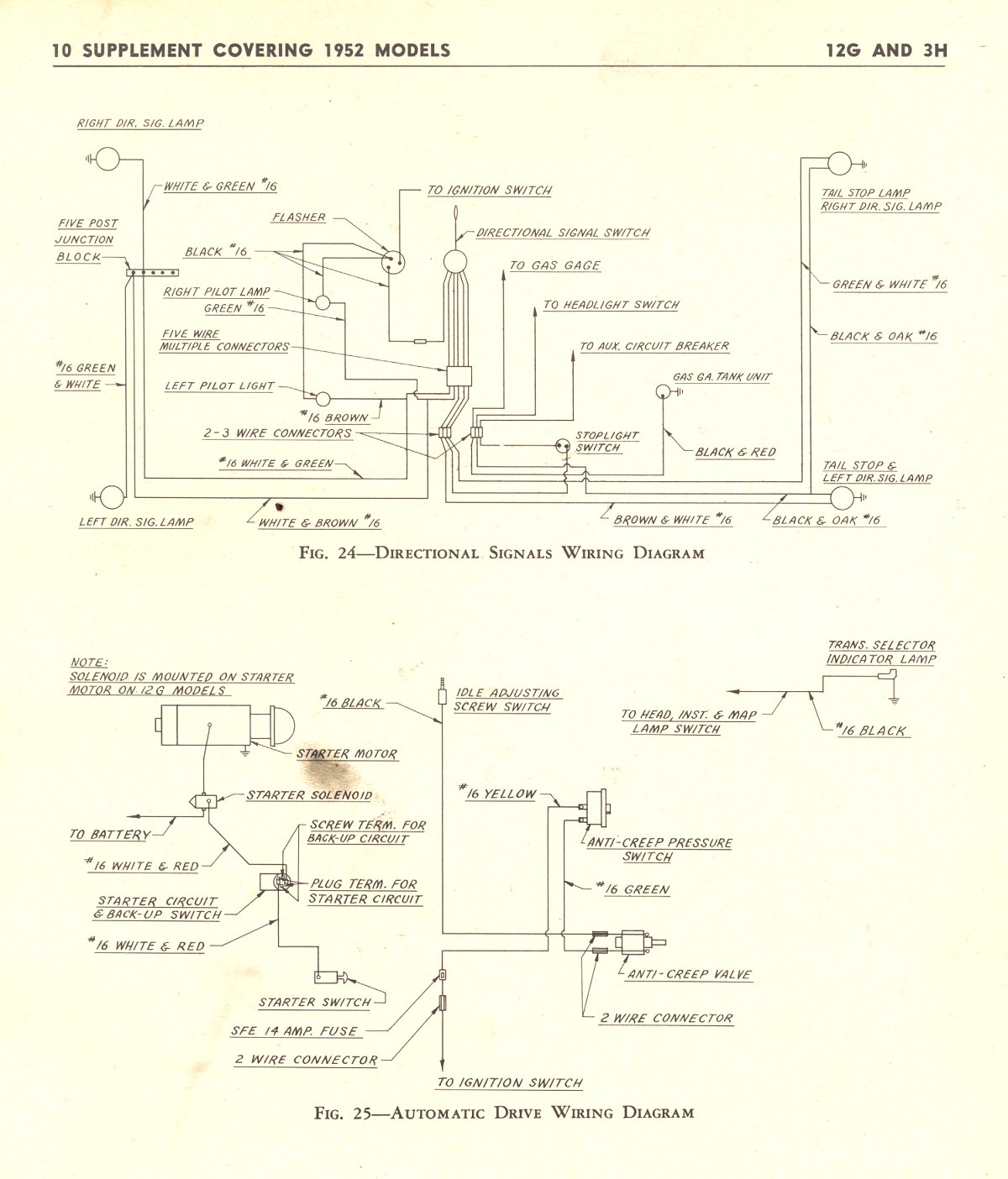

- 1952 Champion and Commander Signals and Automatic Drive Wiring

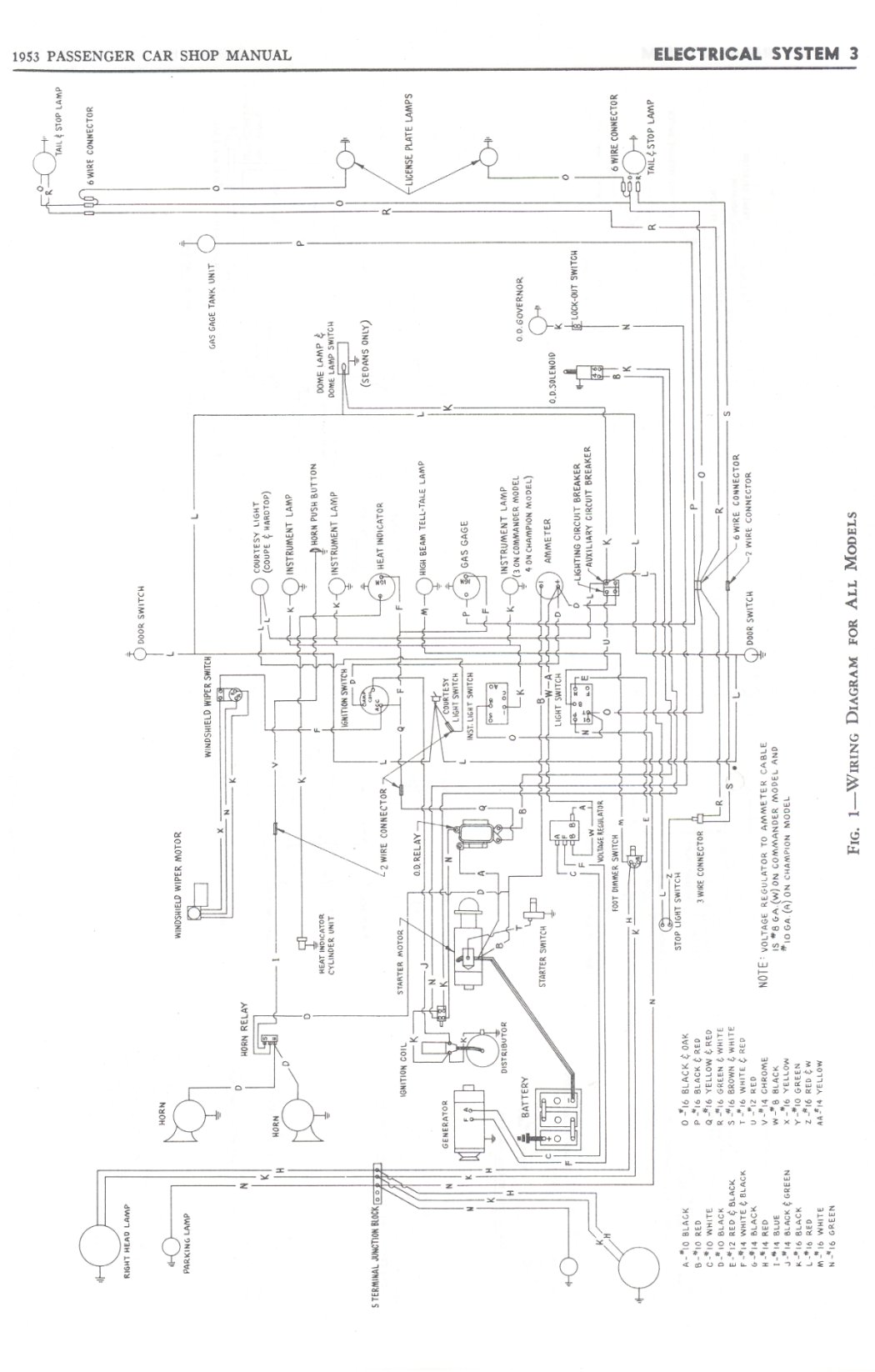

- 1953 Champion and Commander

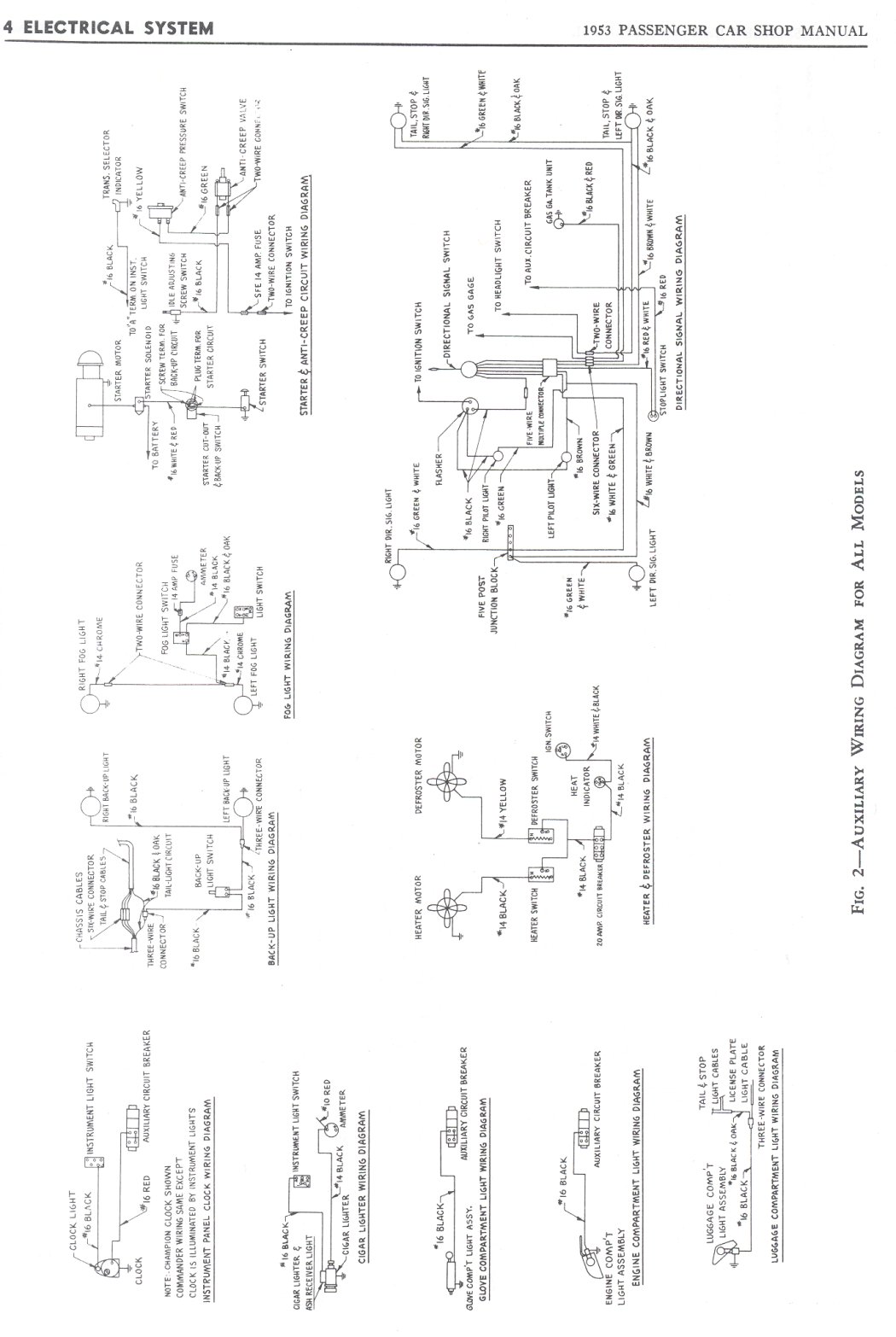

- 1953 Champion and Commander Accessories Wiring

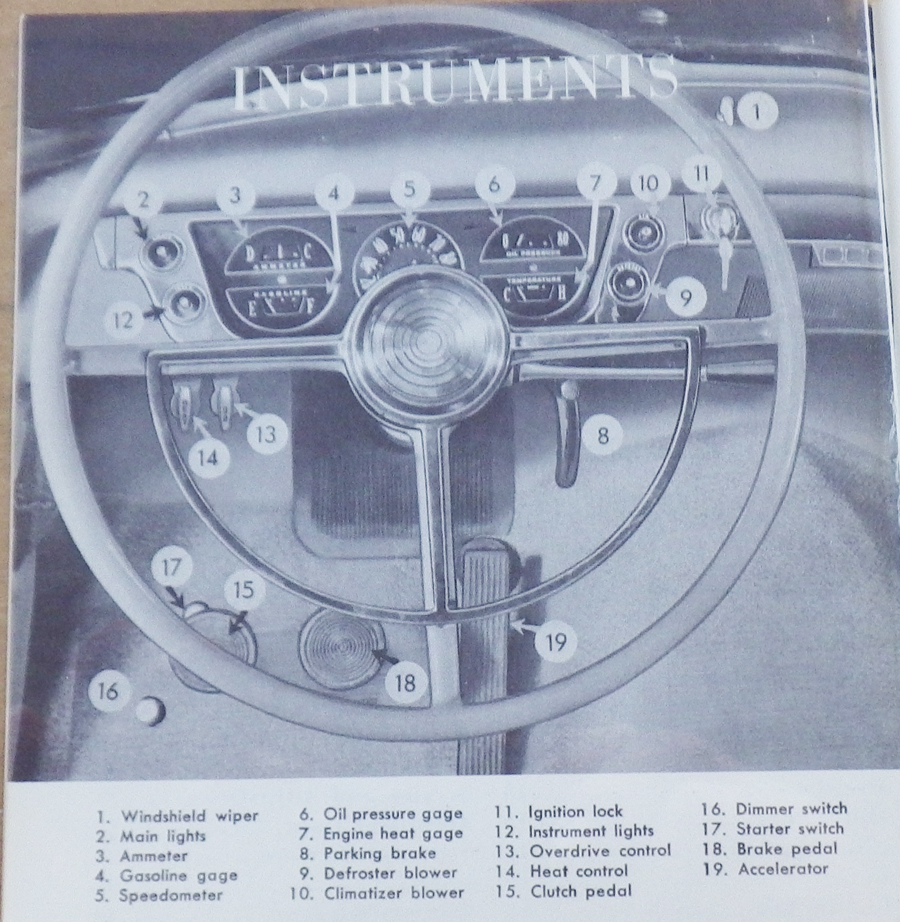

- 1953 Commander Dash

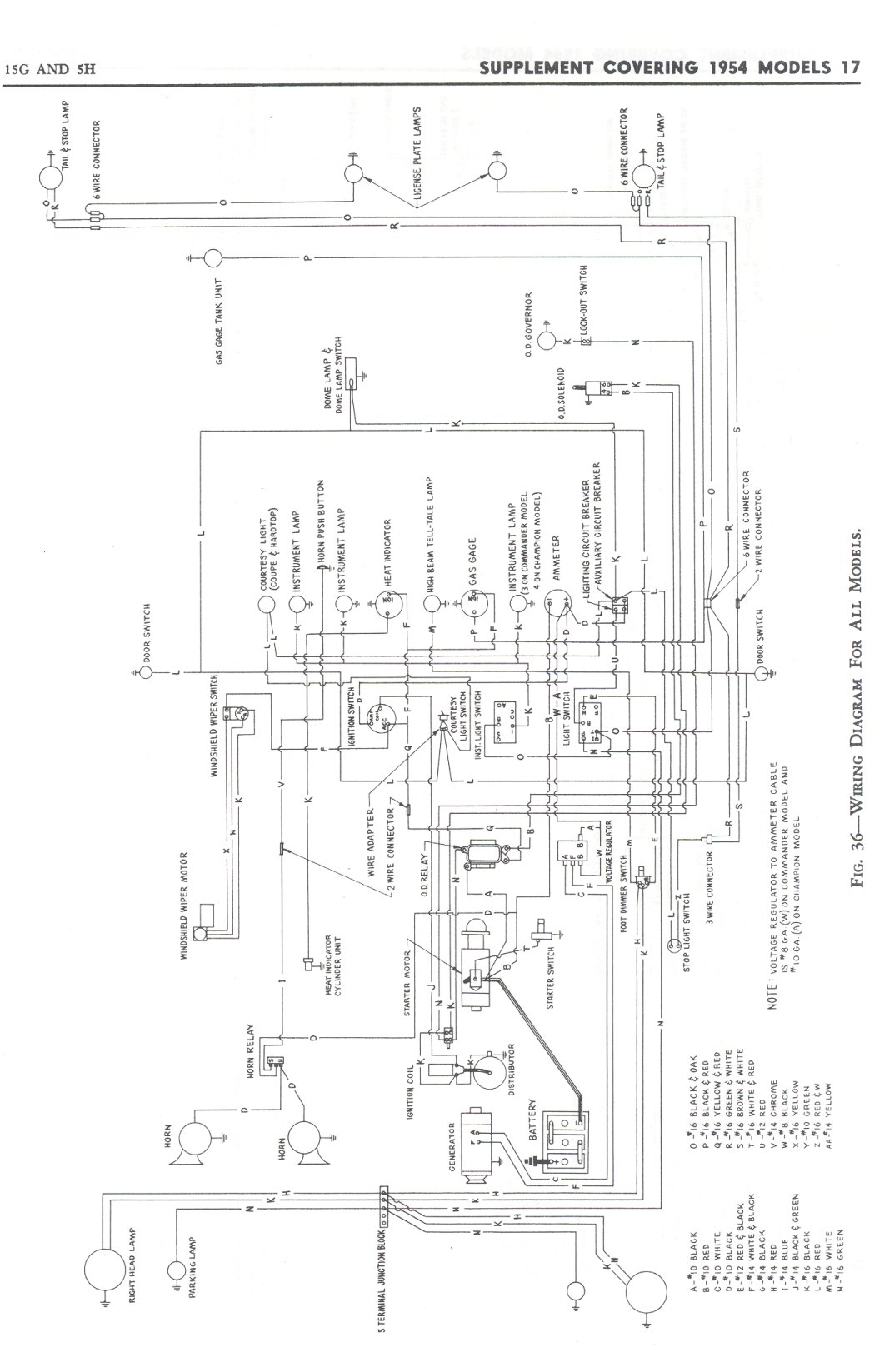

- 1954 Champion and Commander

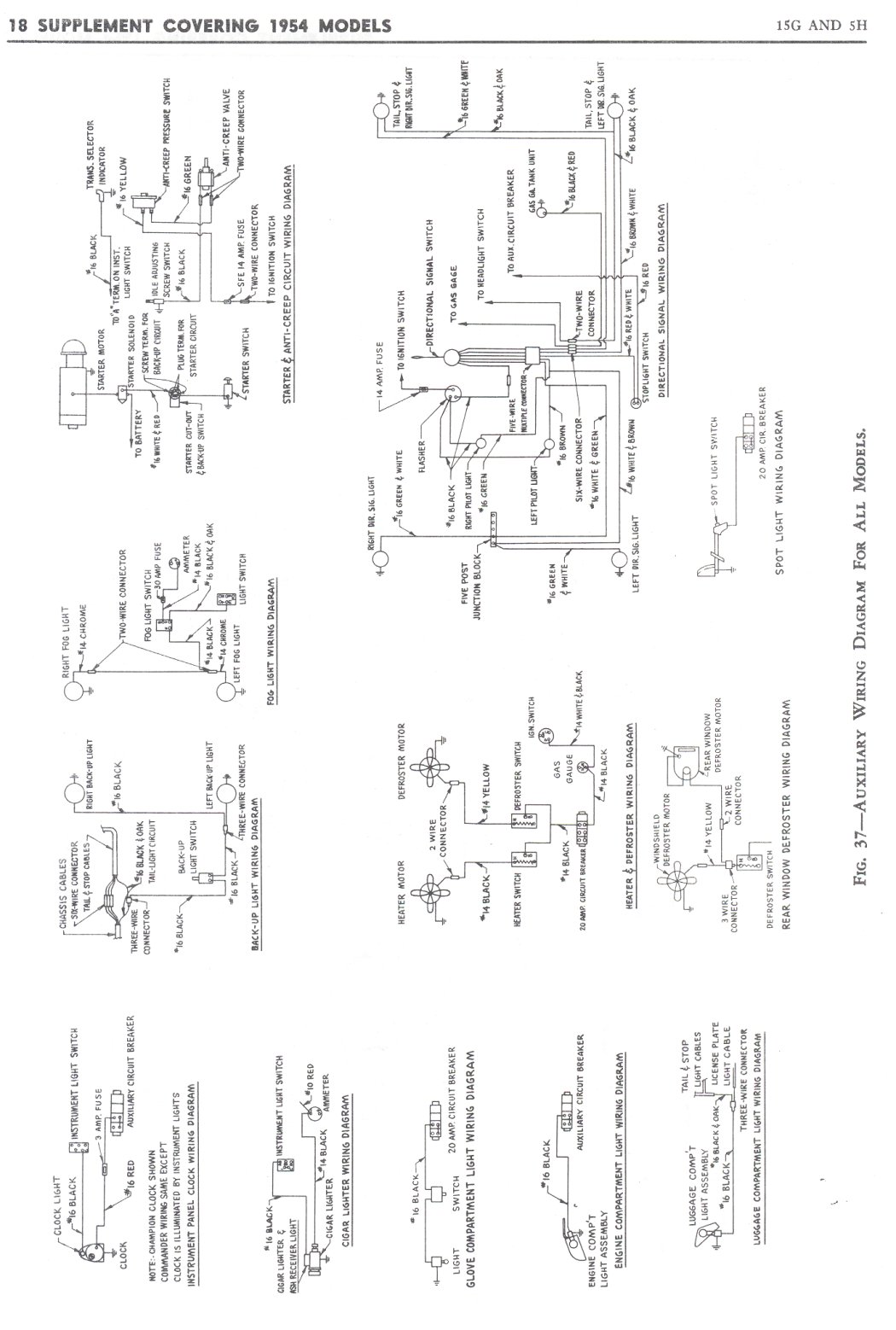

- 1954 Champion and Commander Accessories Wiring

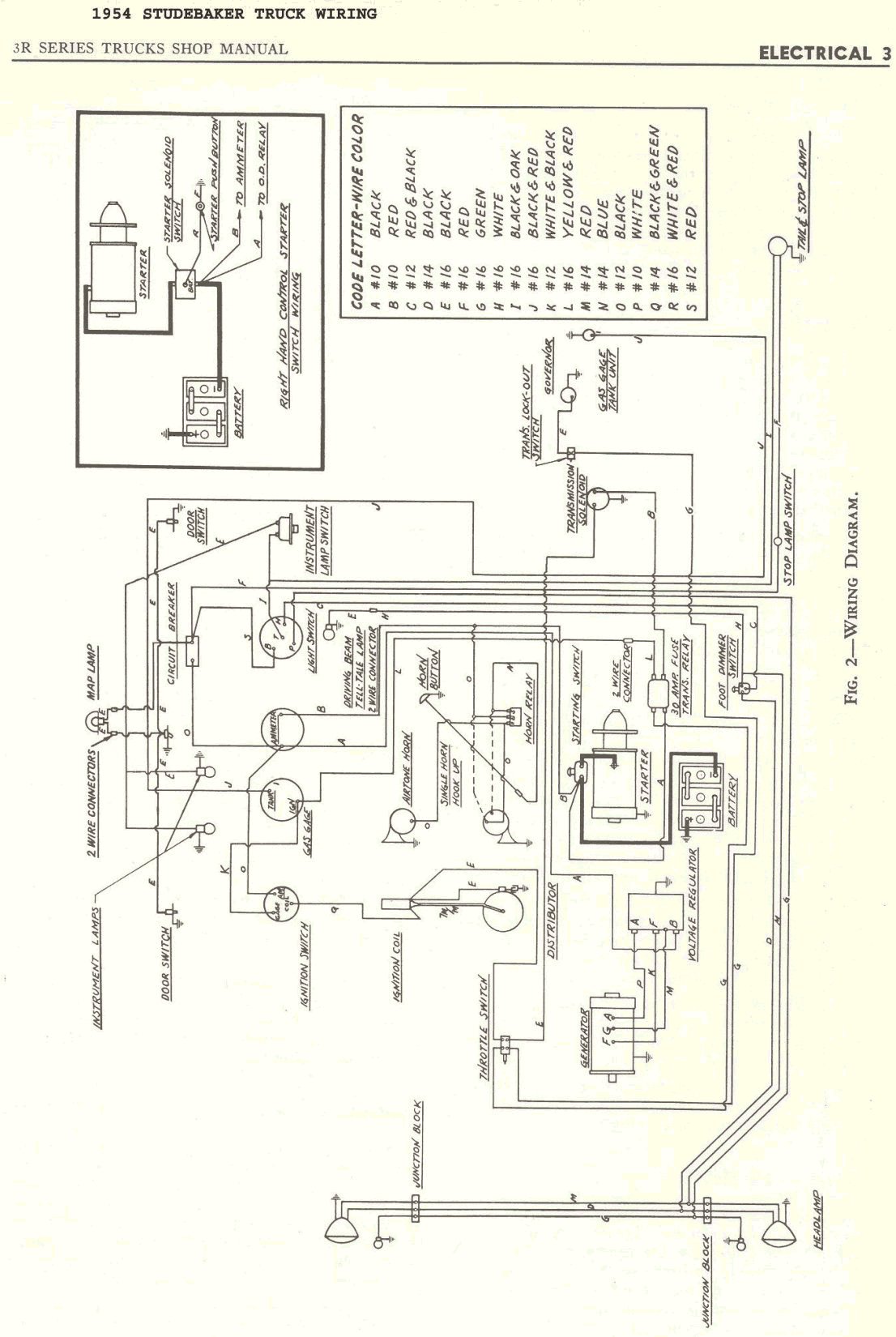

- 1954 3-R Studebaker Truck
- 1953 3R Truck Dash

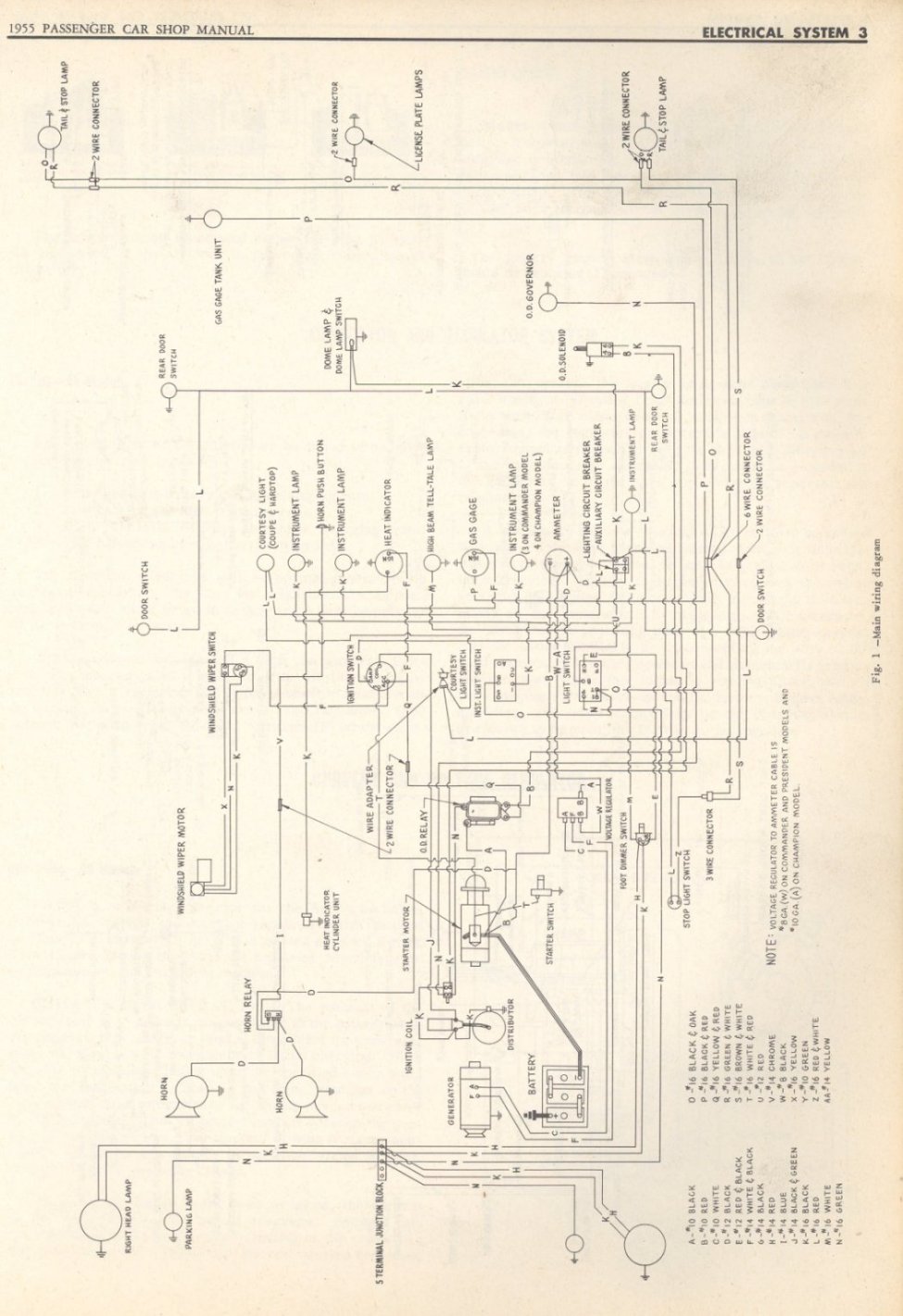

- 1955 Champion and Commander

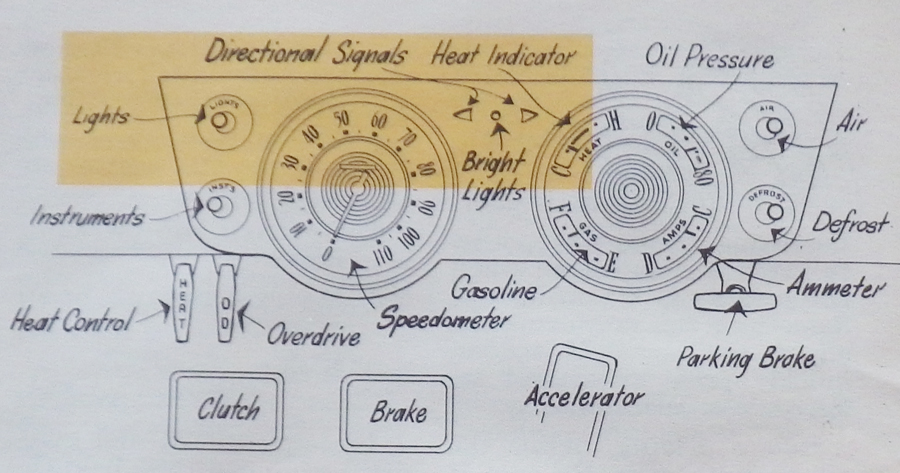

- 1955 Commander Dash

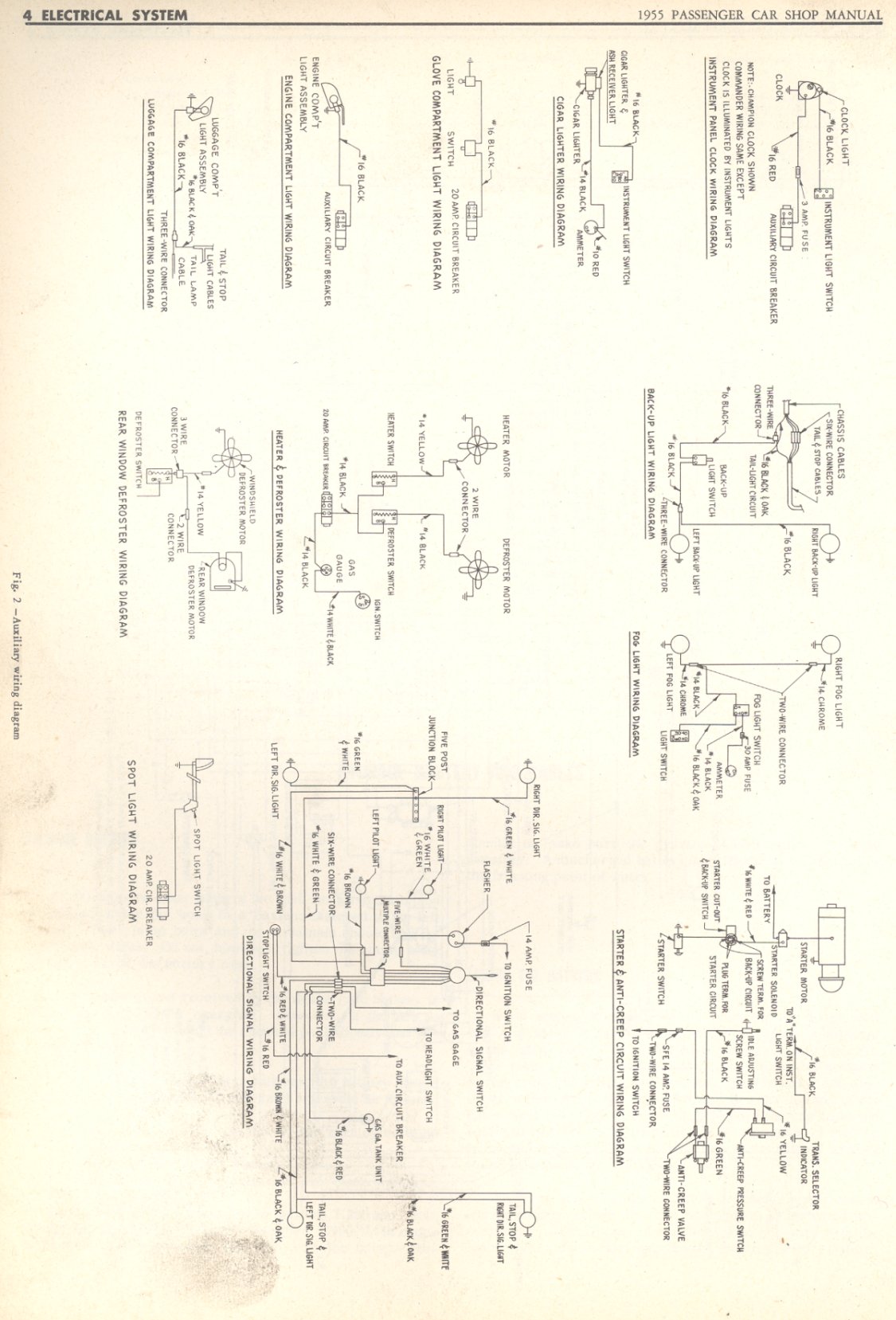

- 1955 Champion and Commander Accessories Wiring
- 1955 Car Supplement Shop Manual, With Window and Seat Wiring

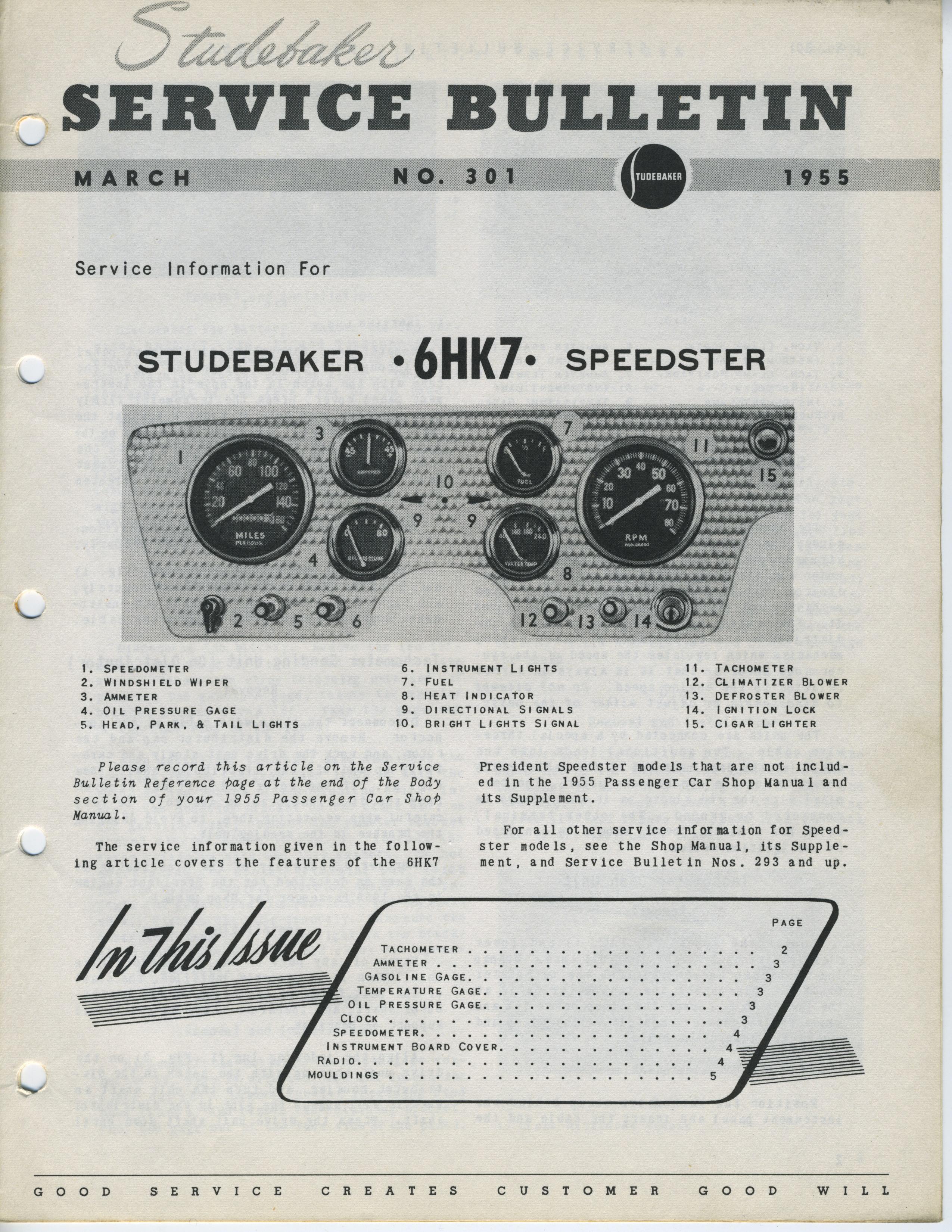

- Speedster Dash

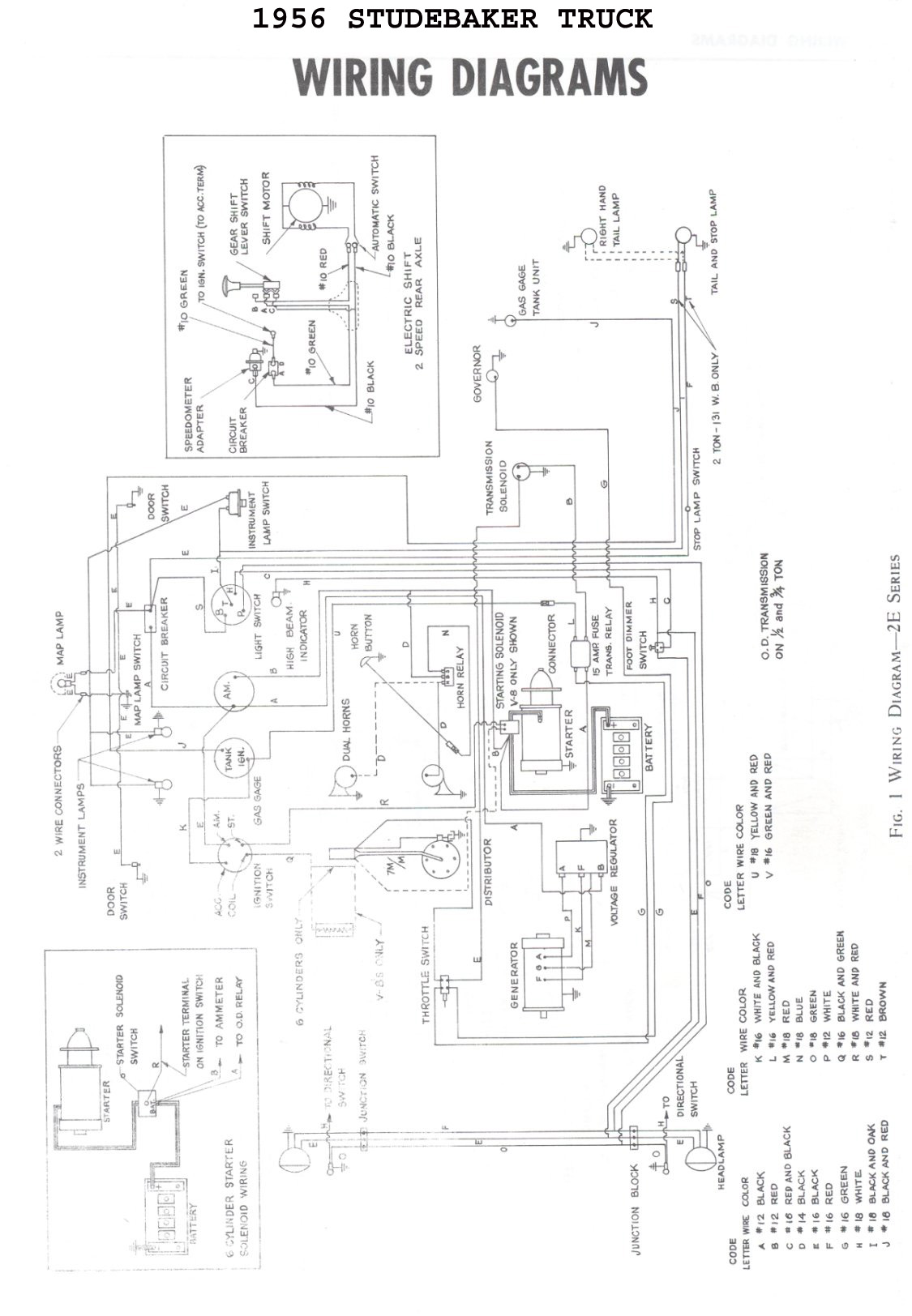

- 1956 Truck

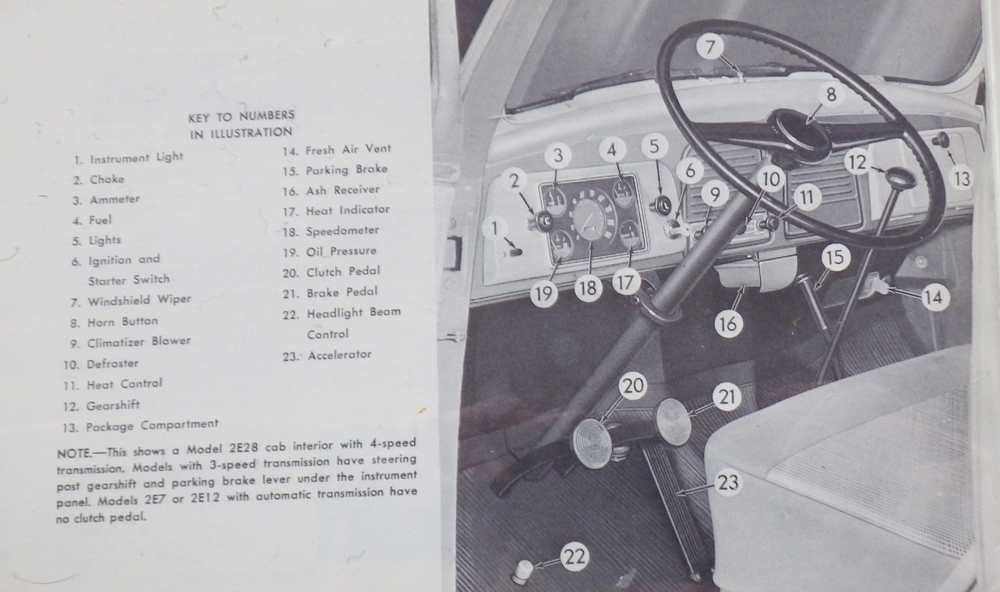

- 2E Truck Dash
- 1956-1964 Over Drive Wiring and Help
- Overdrive with HEI
- 1956 Hawk, Golden Hawk and Sedans
- 1955, 1956, 1957 Hawk Tach Wiring Help

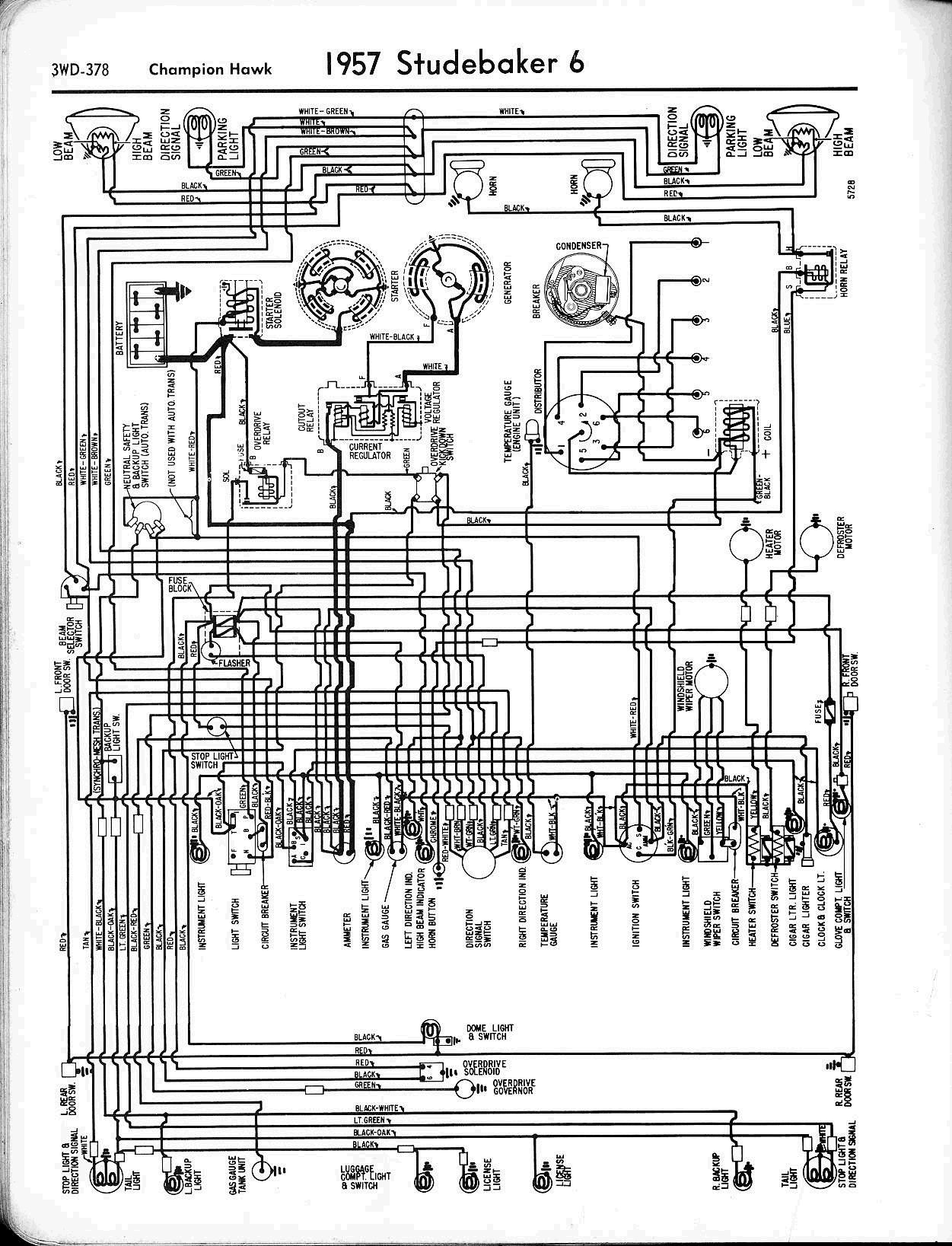

- 1957 6 cyl Champion Hawk

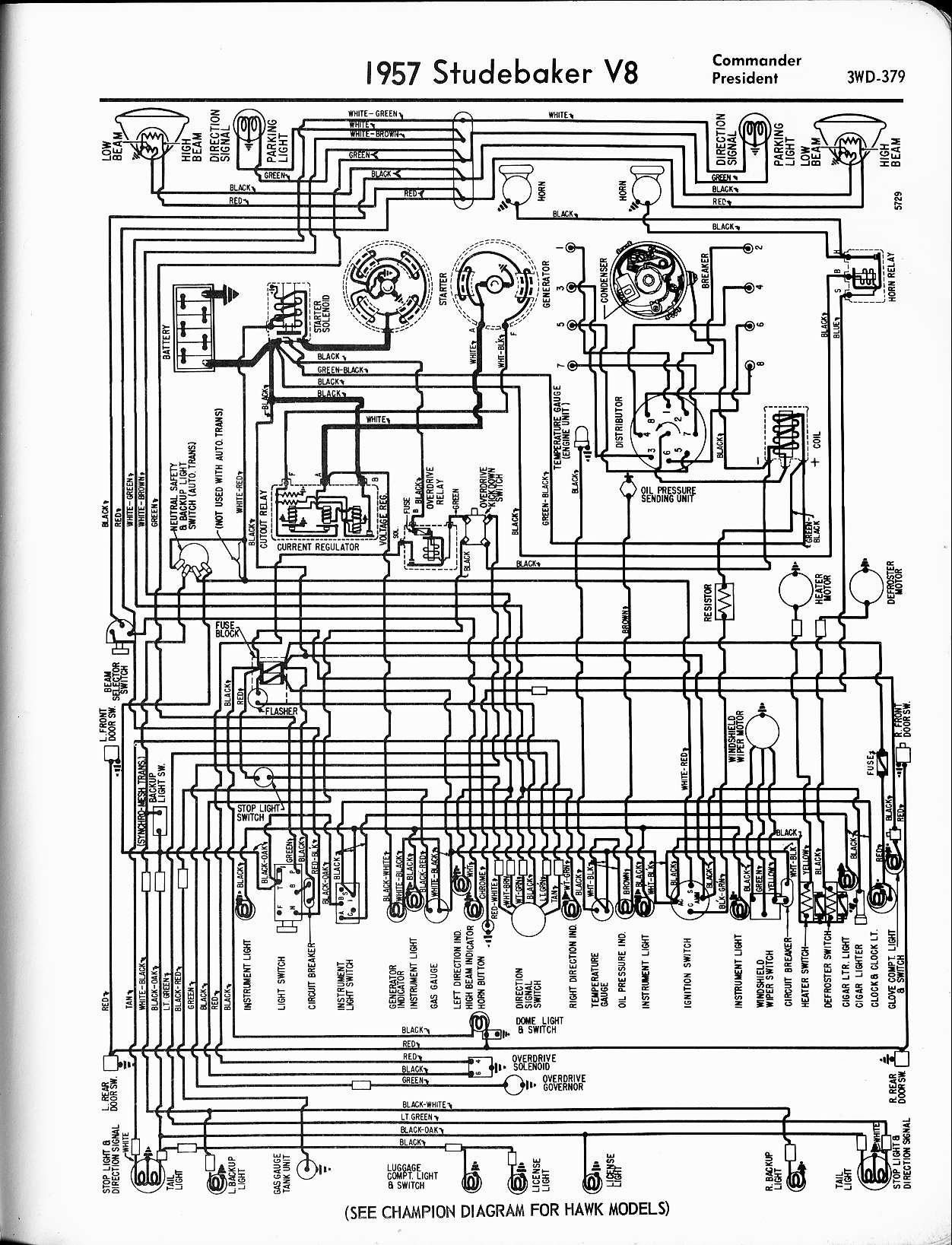

- 1957 V8 Commander, President

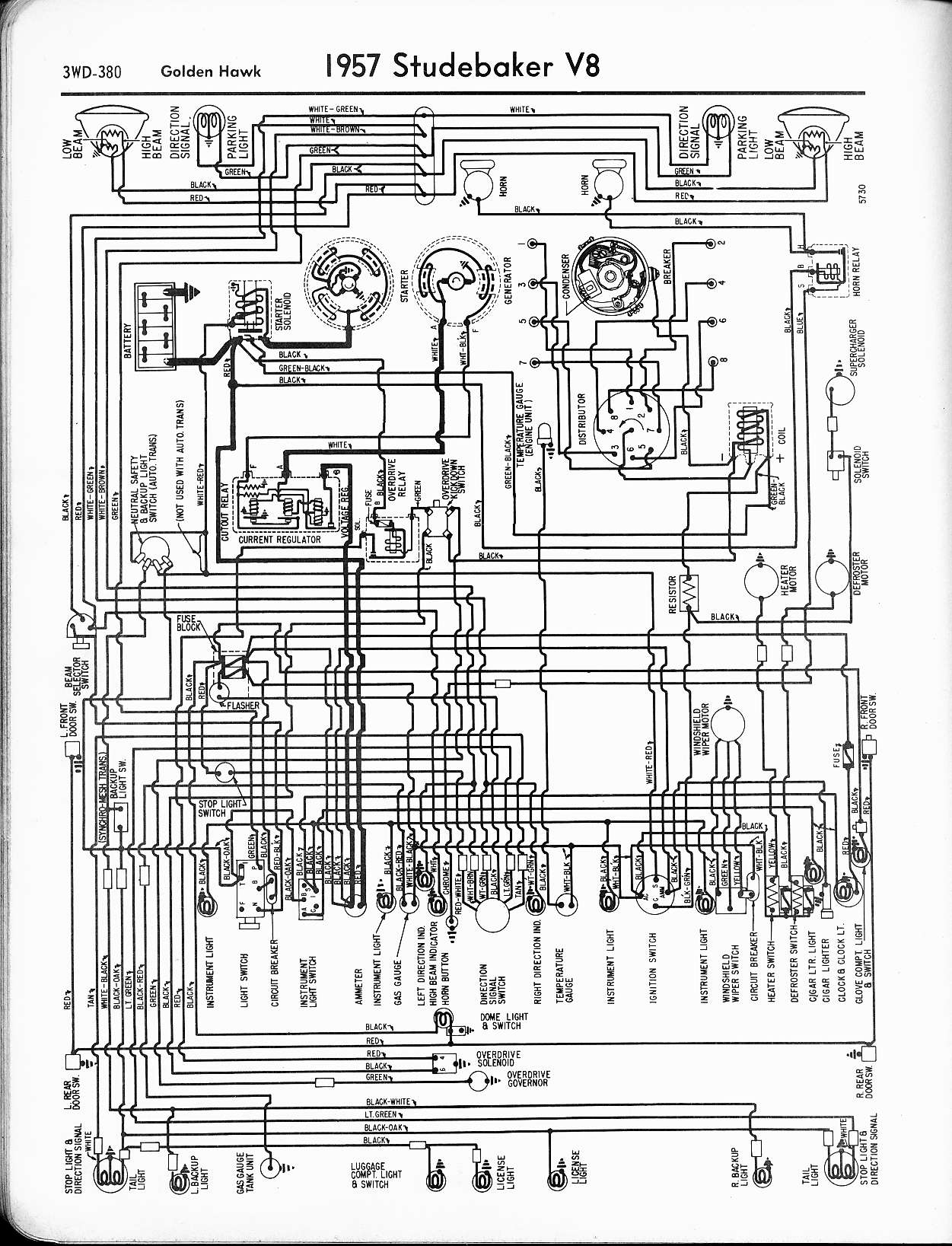

- 1957 V8 Golden Hawk

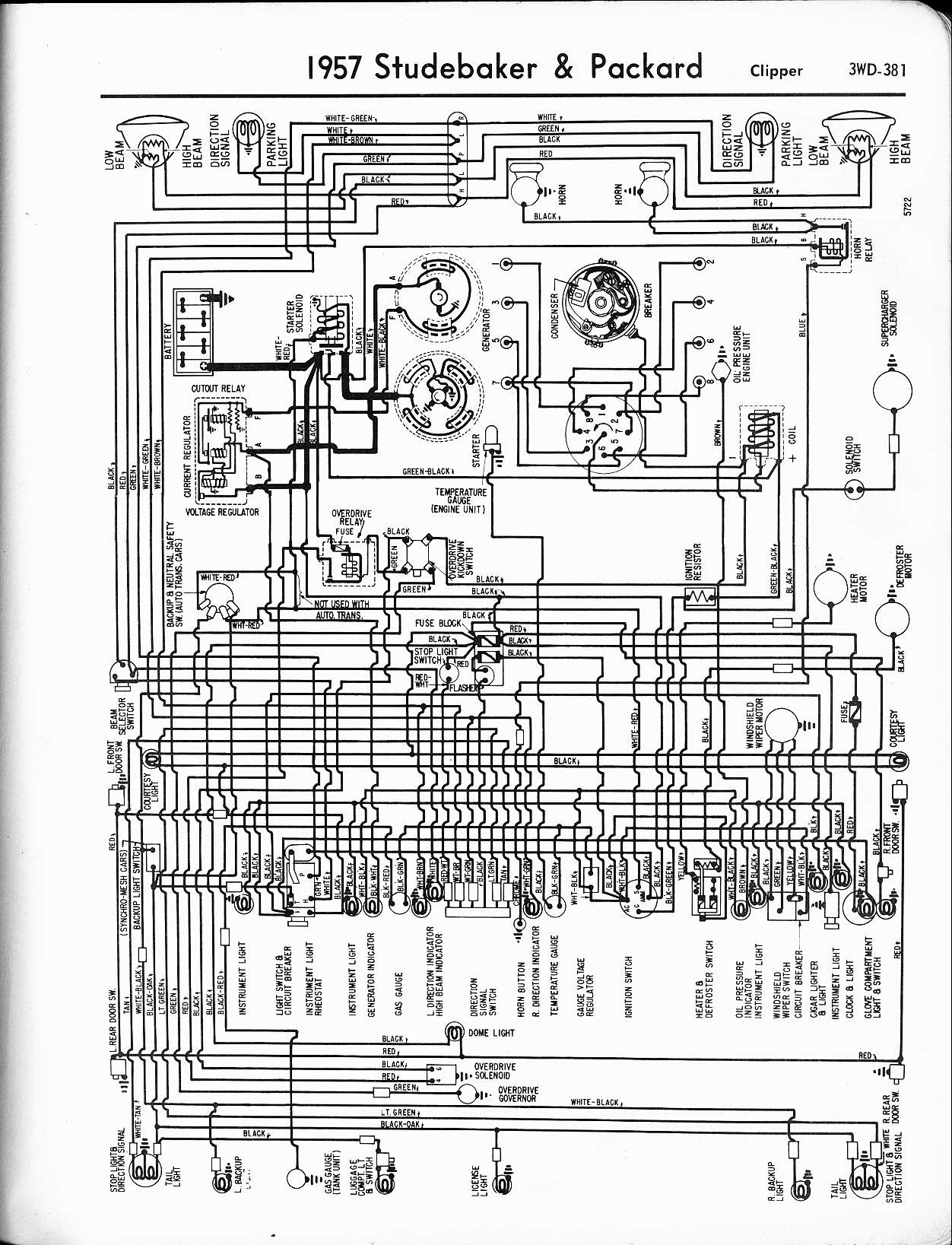

- 1957 Studebaker And Packard Clipper

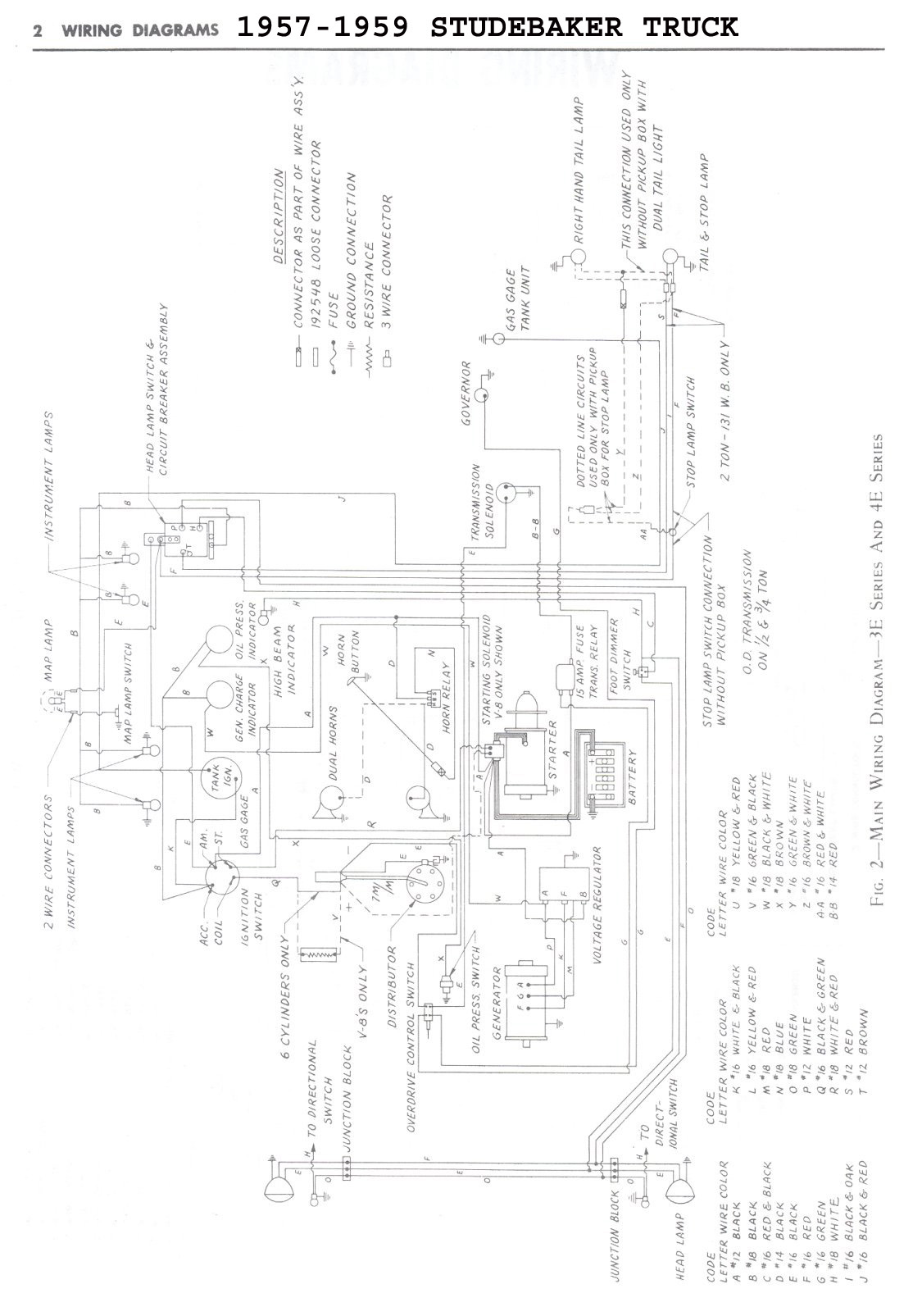

- 1957-1959 Truck

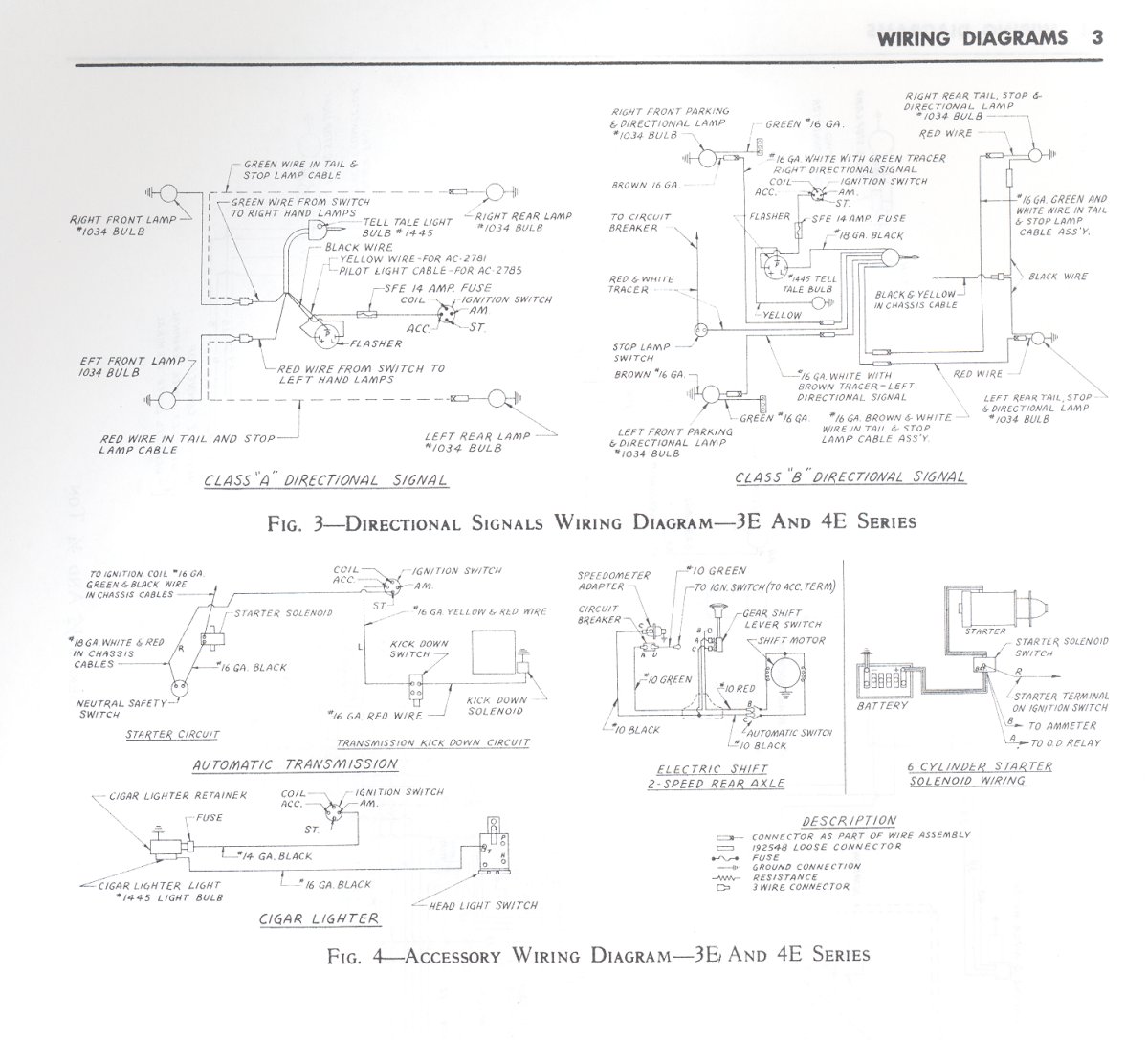

- 1957-1959 Truck Accessories

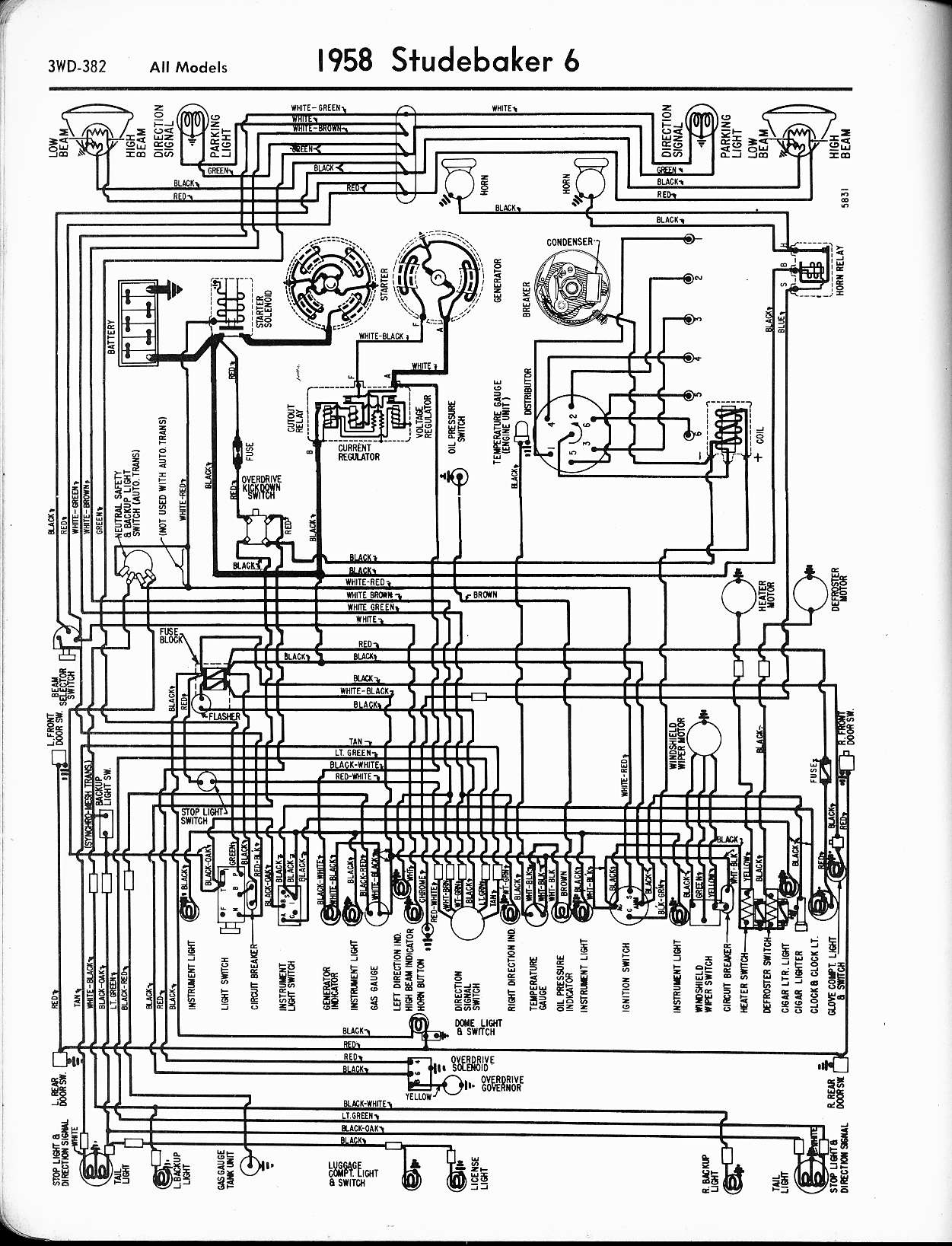

- 1958 6 cylinder

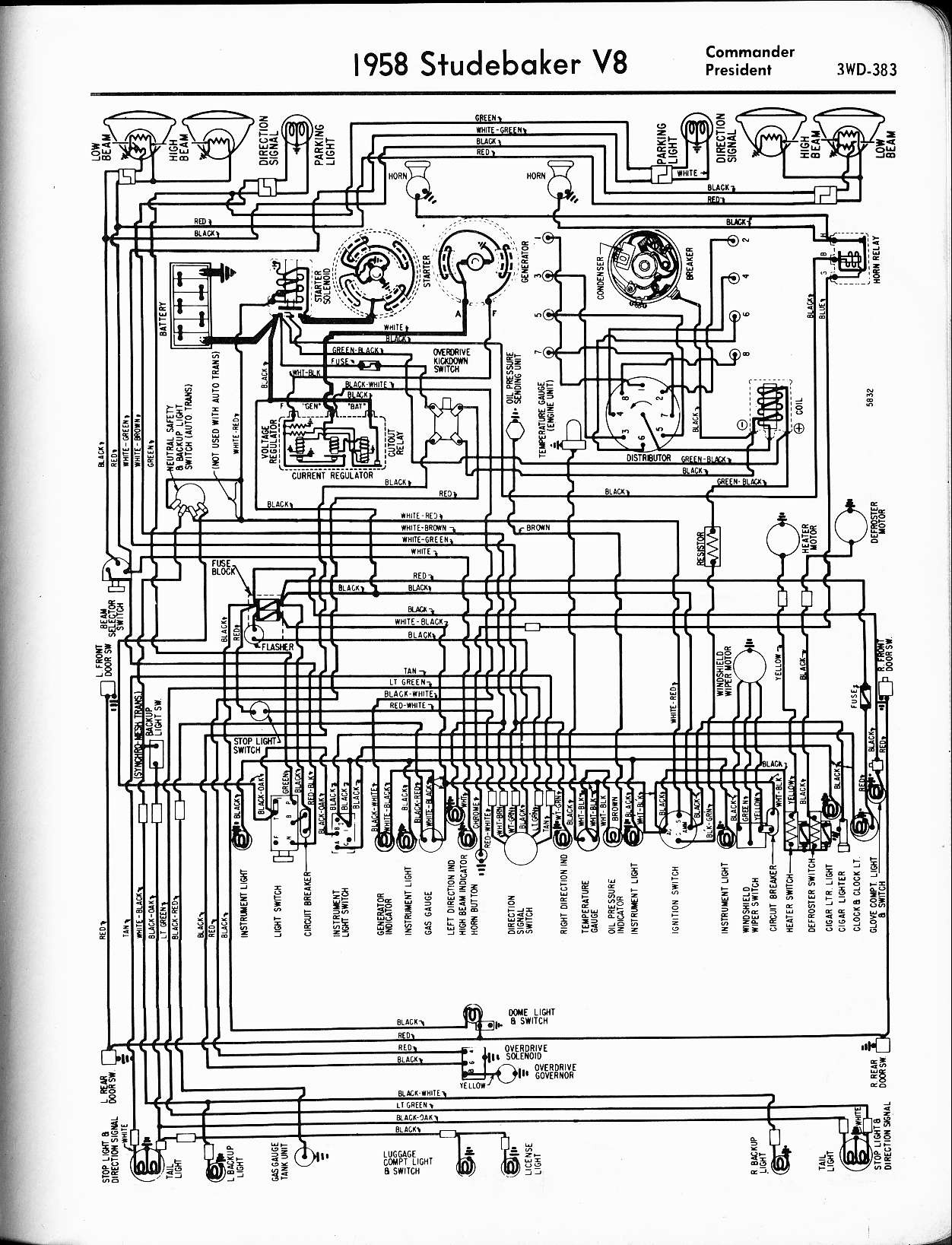

- 1958 V8 Commander, President

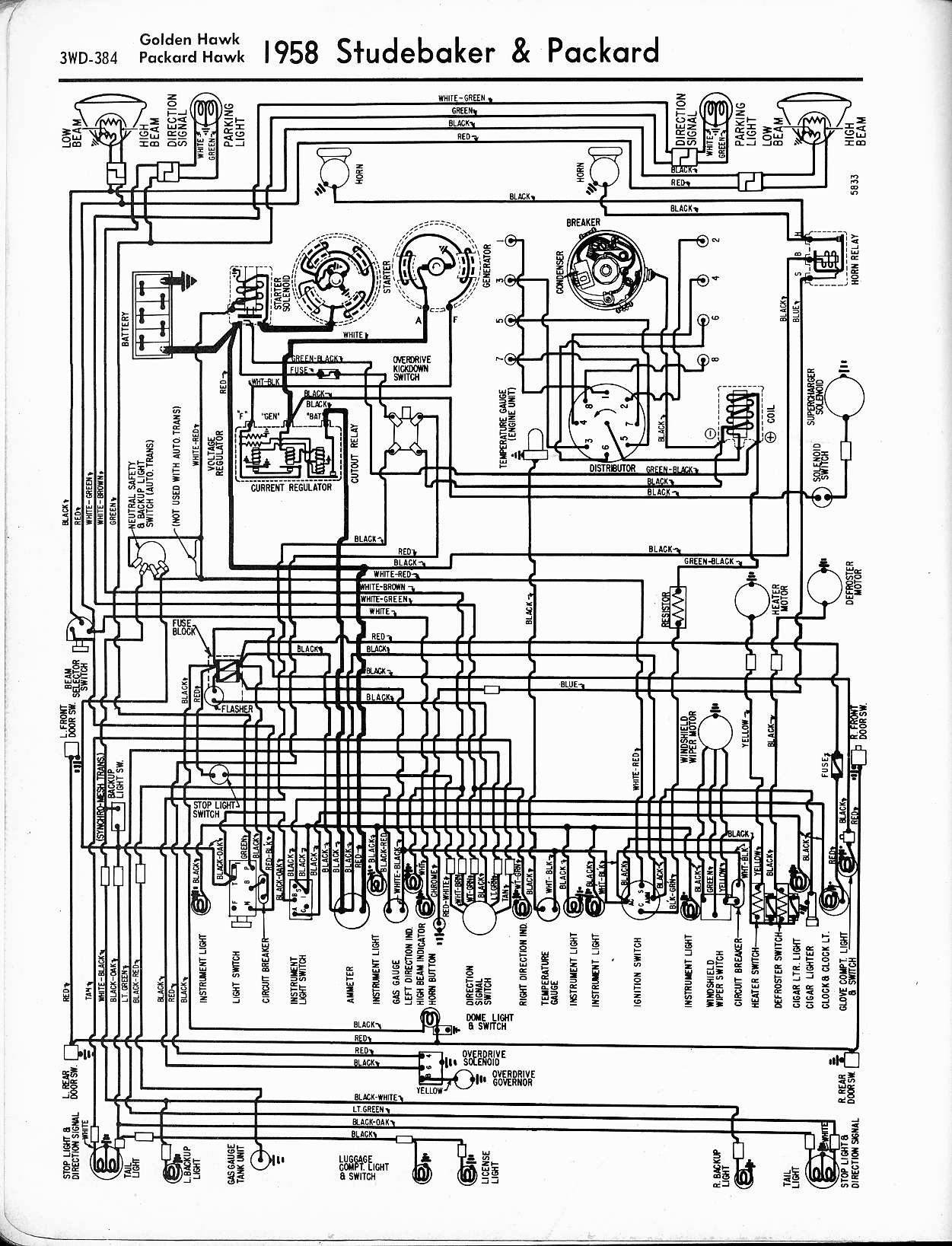

- 1958 Studebaker And Packard Golden Hawk, Packard Hawk

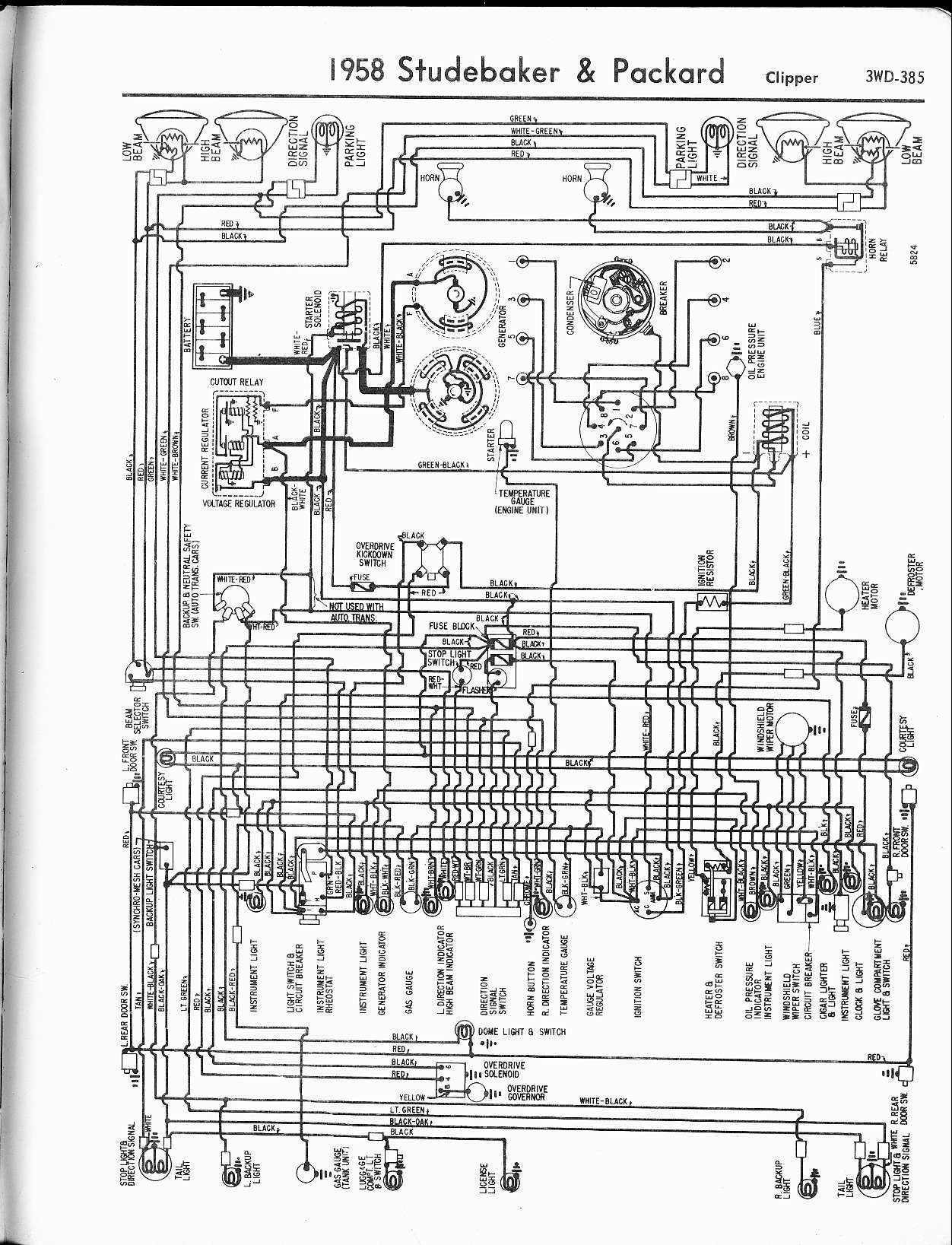

- 1958 Studebaker And Packard Clipper

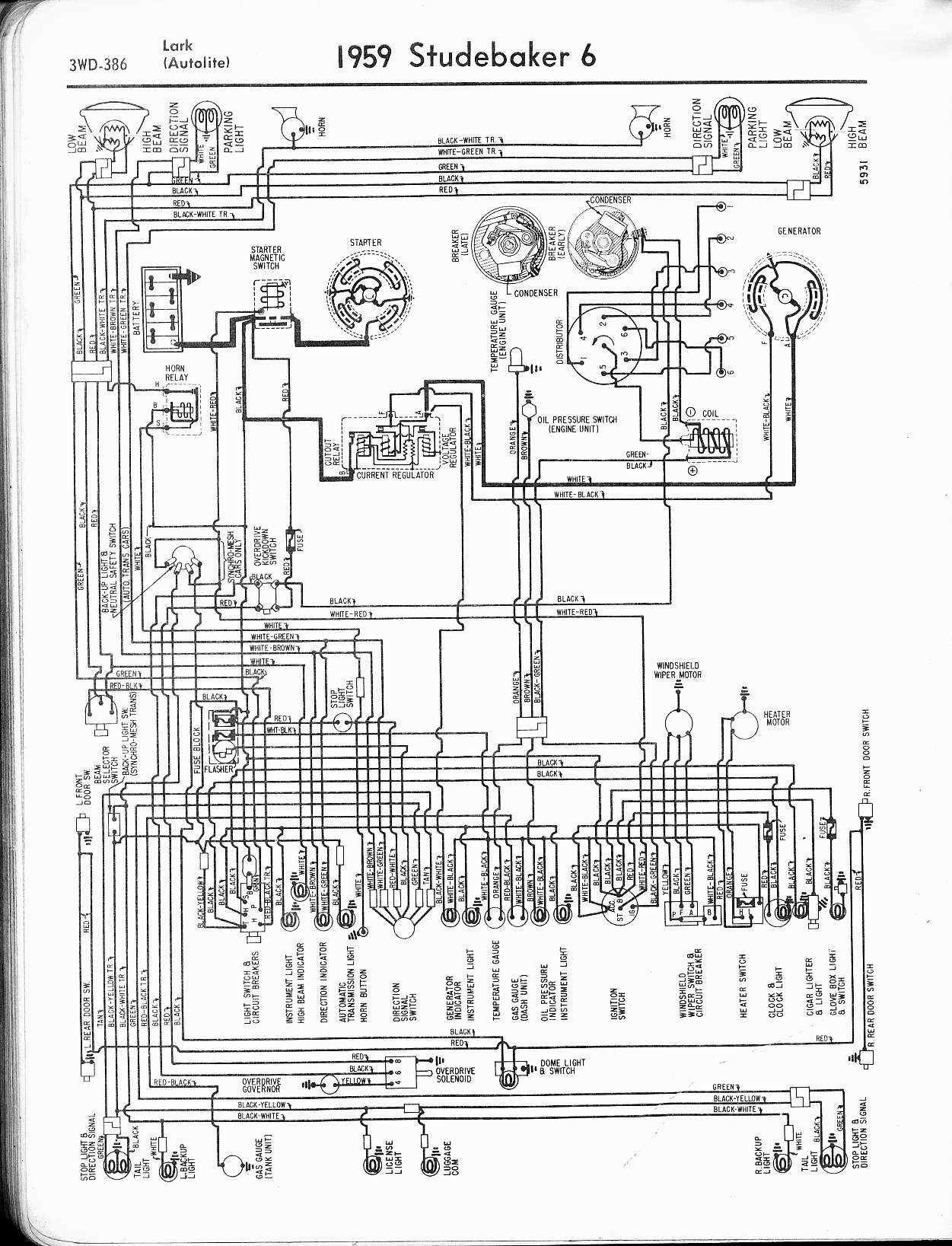

- 1959 6 cylinder Lark (Autolite)

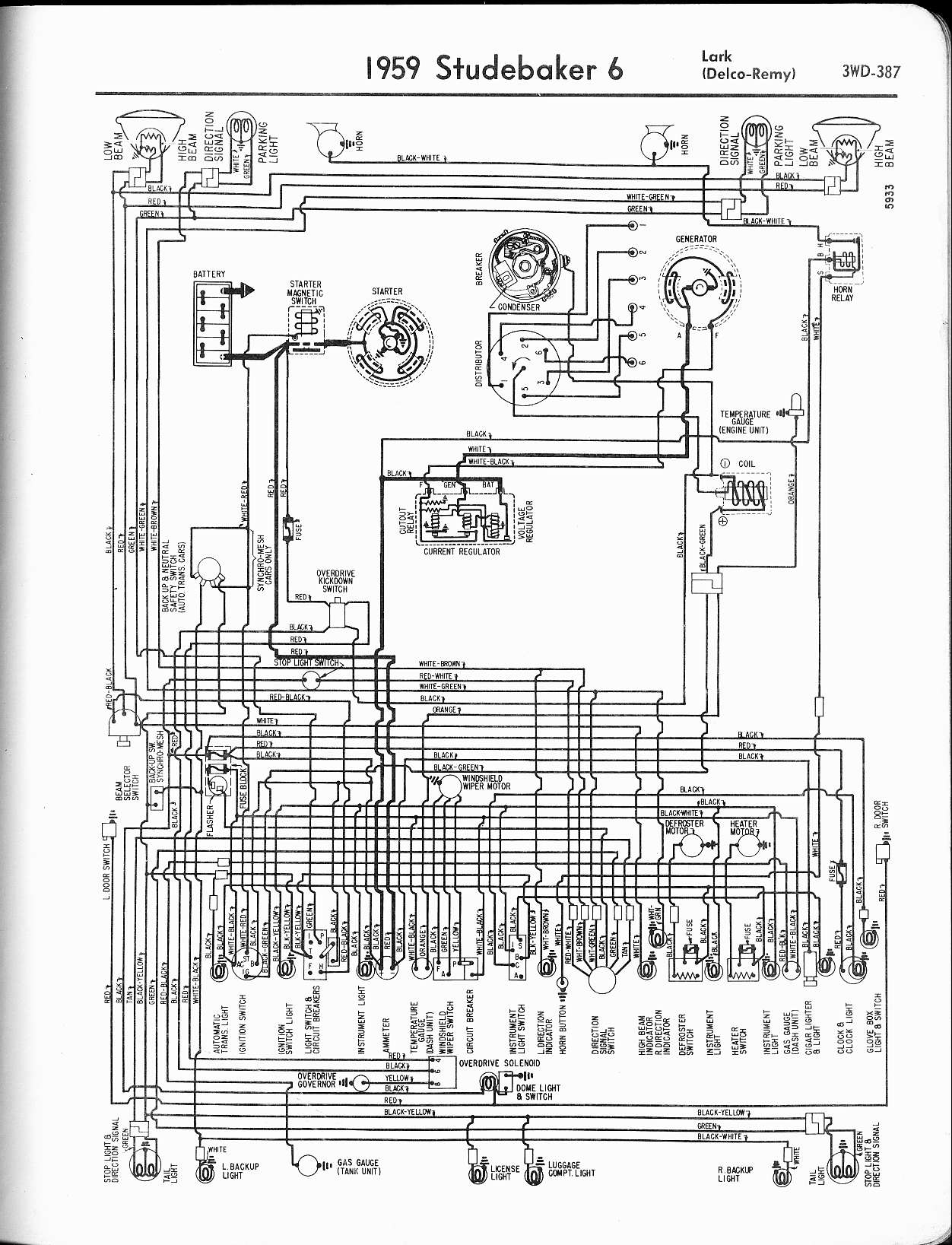

- 1959 6 cylinder Lark (Delco-Remy)

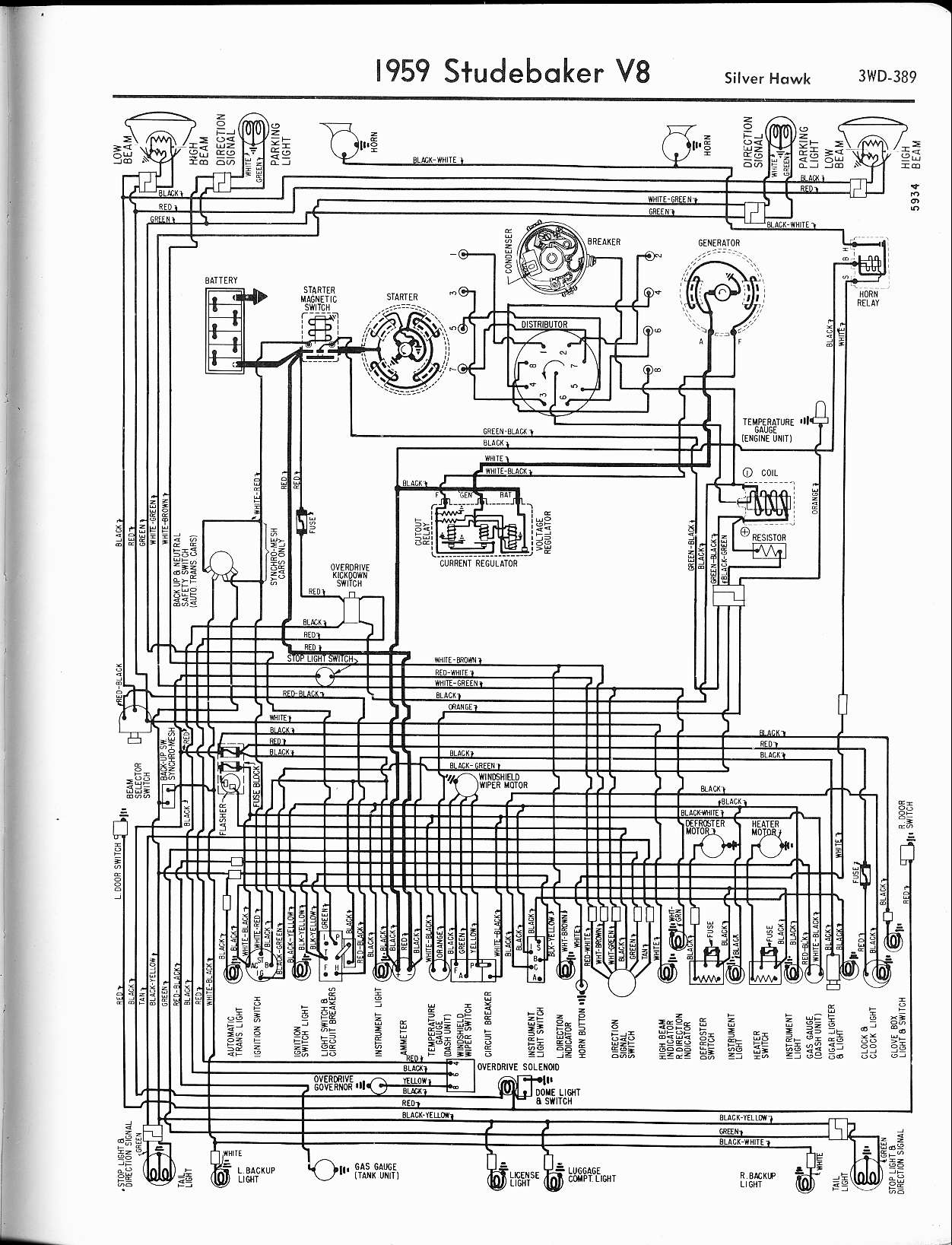

- 1959 V8 Silver Hawk
- 1960 6 cyl Lark

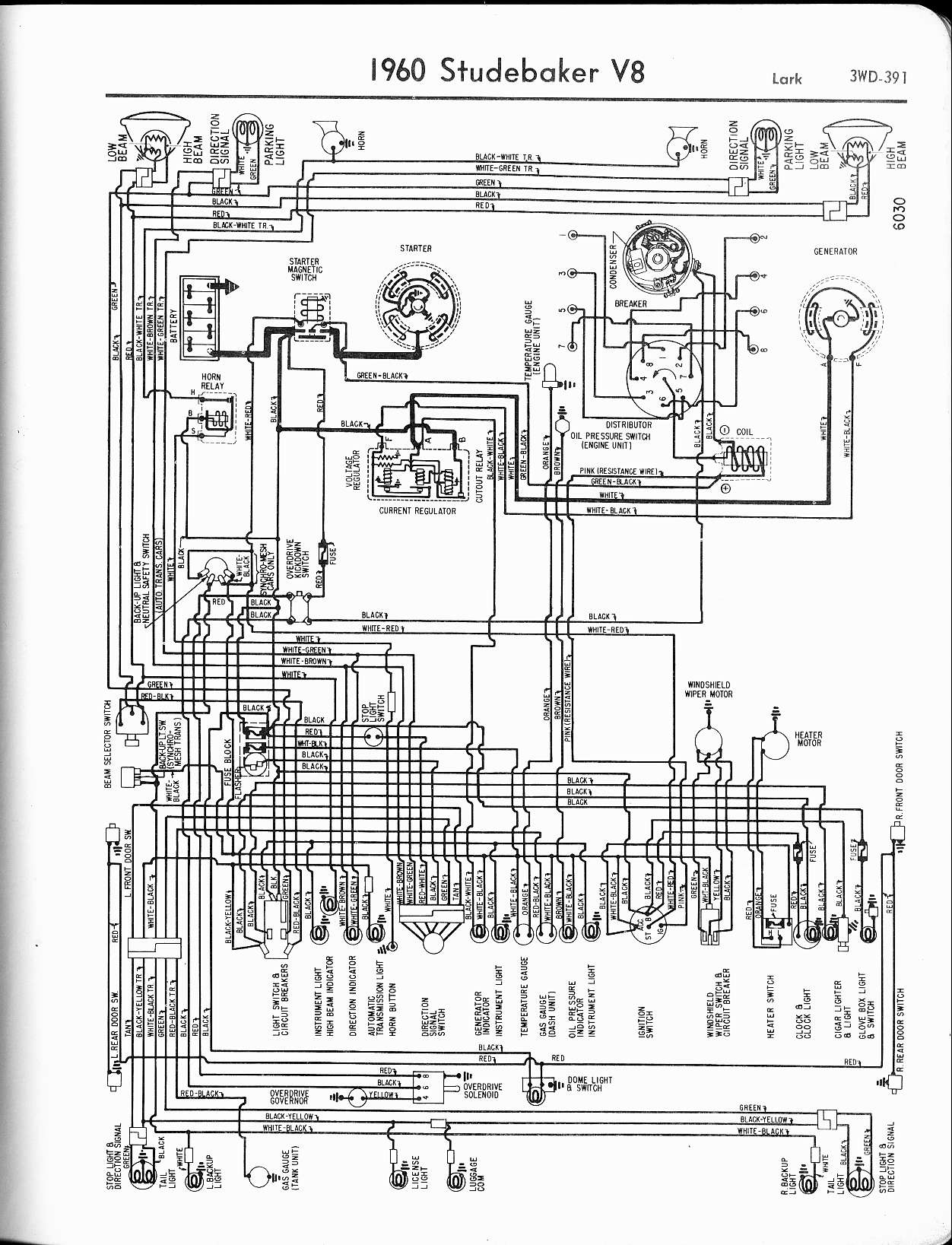

- 1960 V8 Lark

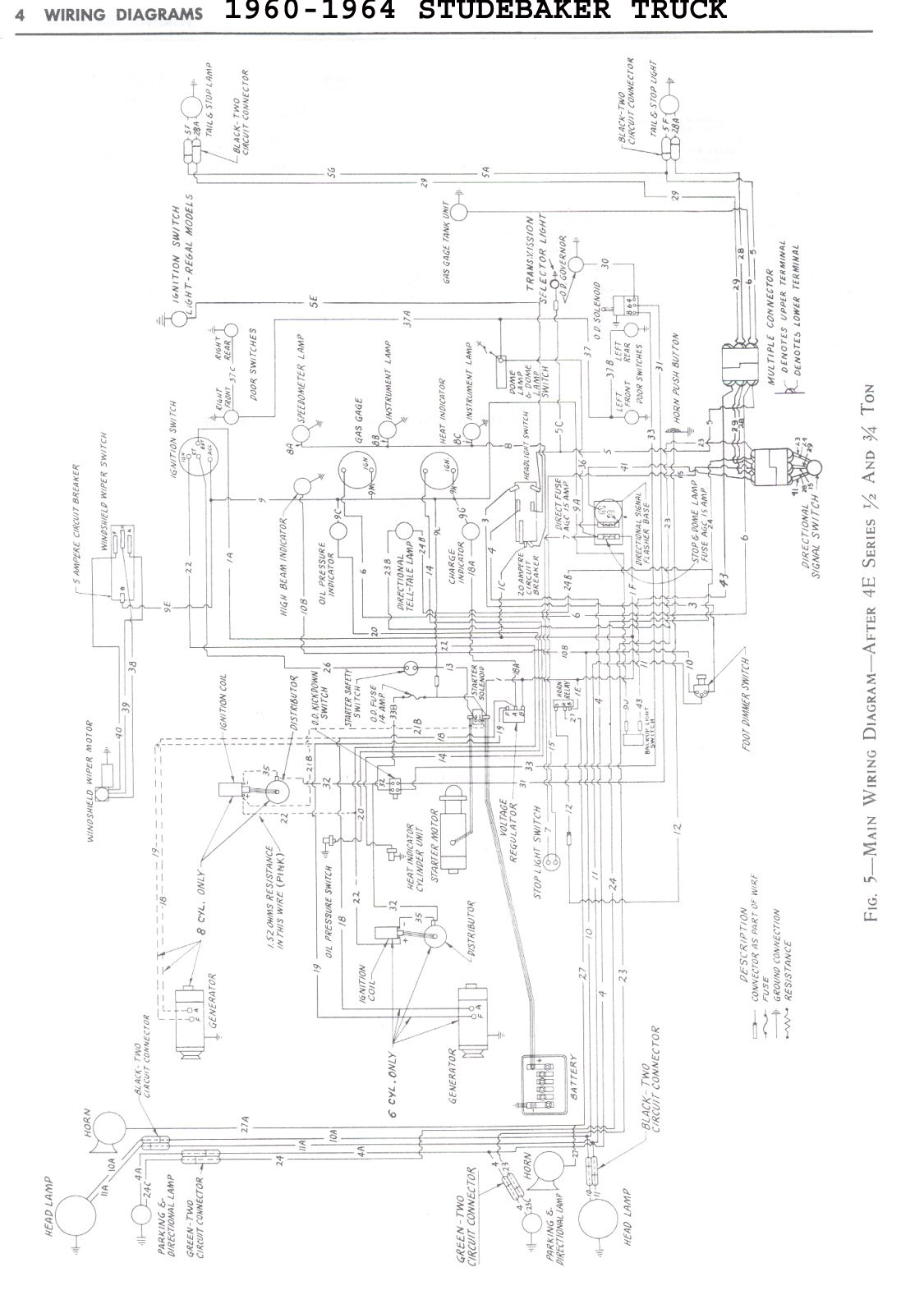

- 1960-1964 Small Truck

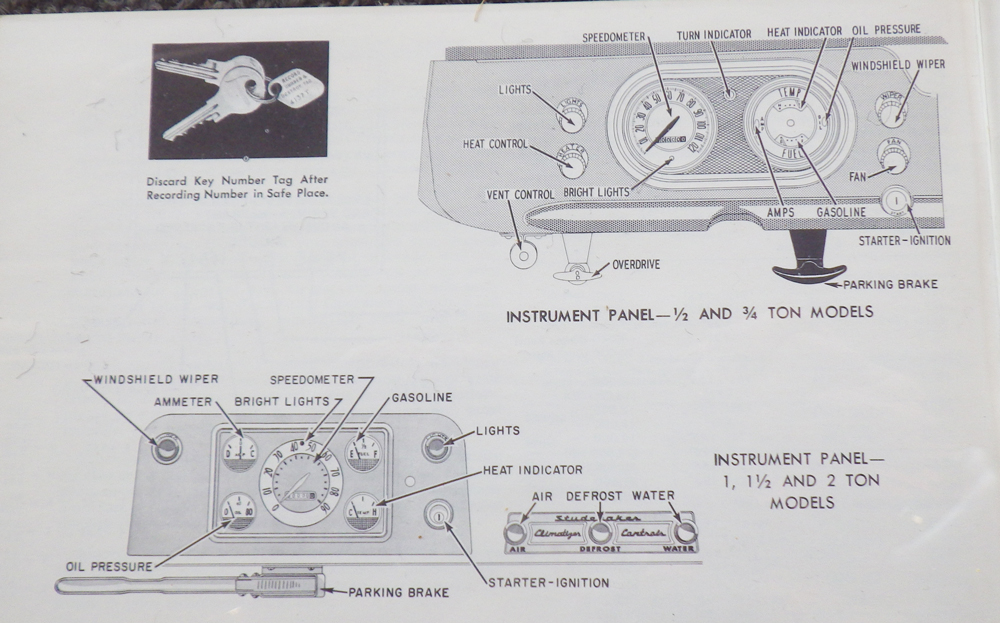

- 1960-64 Truck Dash

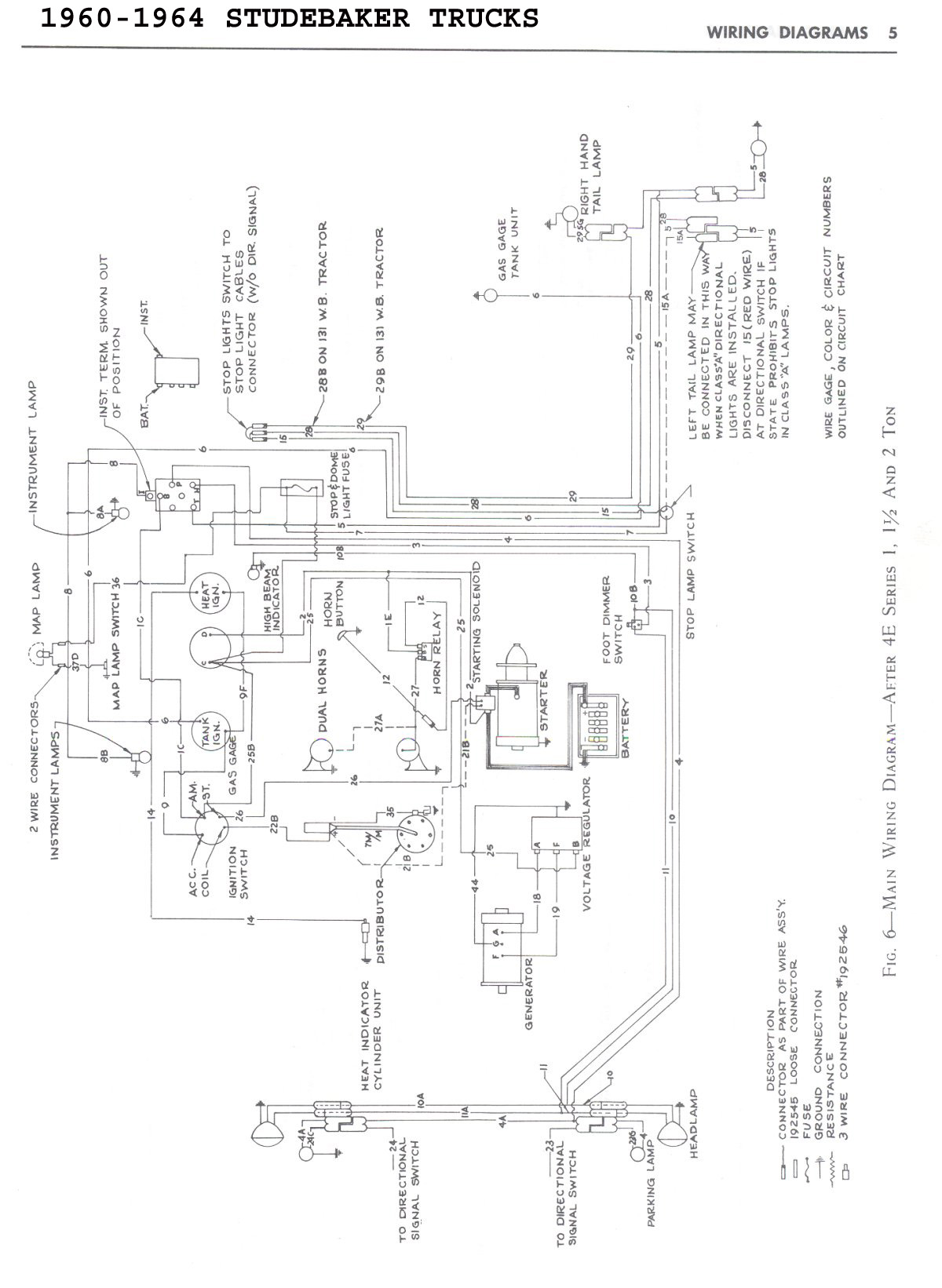

- 1960-1964 Large Truck

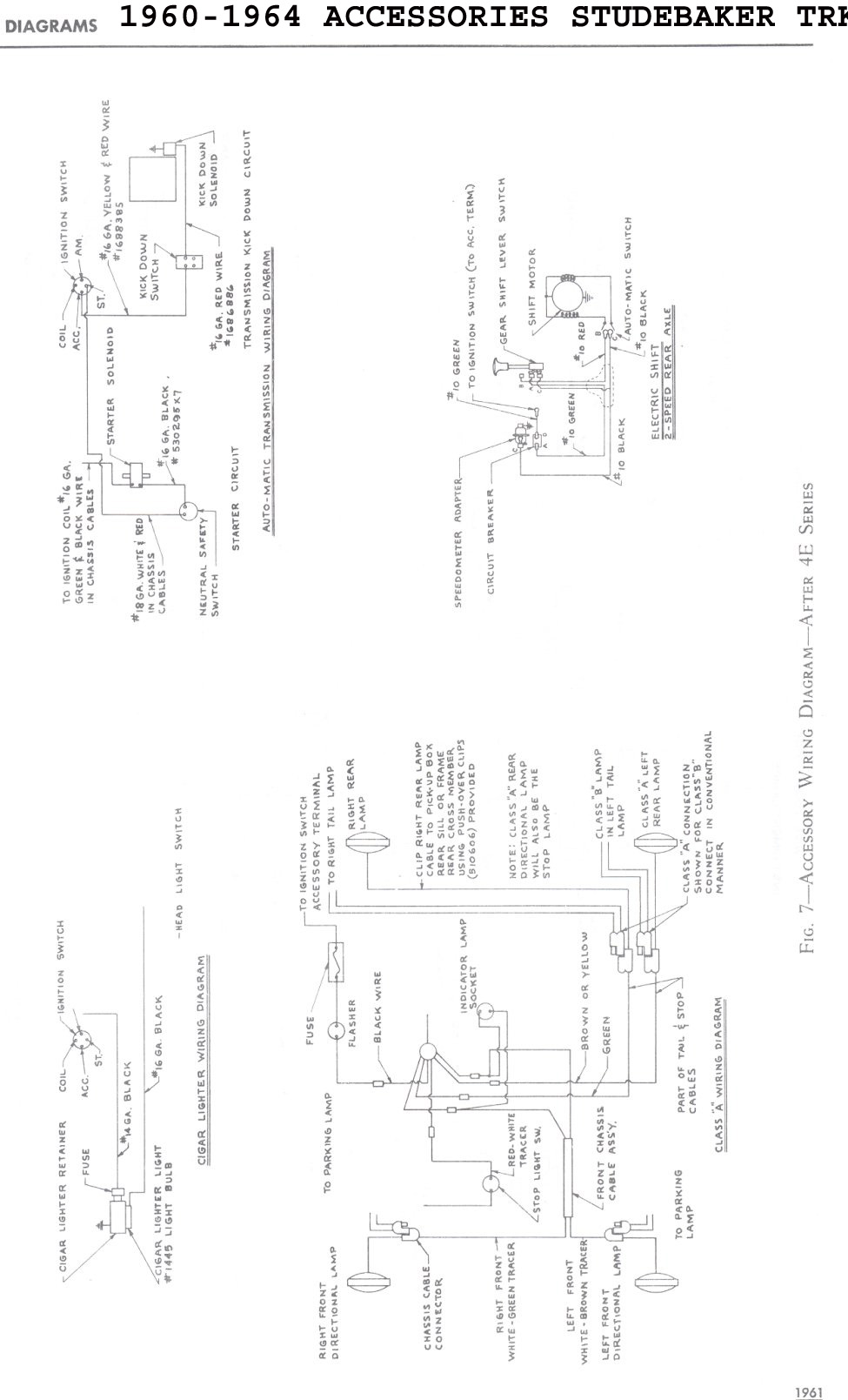

- 1960-1964 Large Truck Accessories

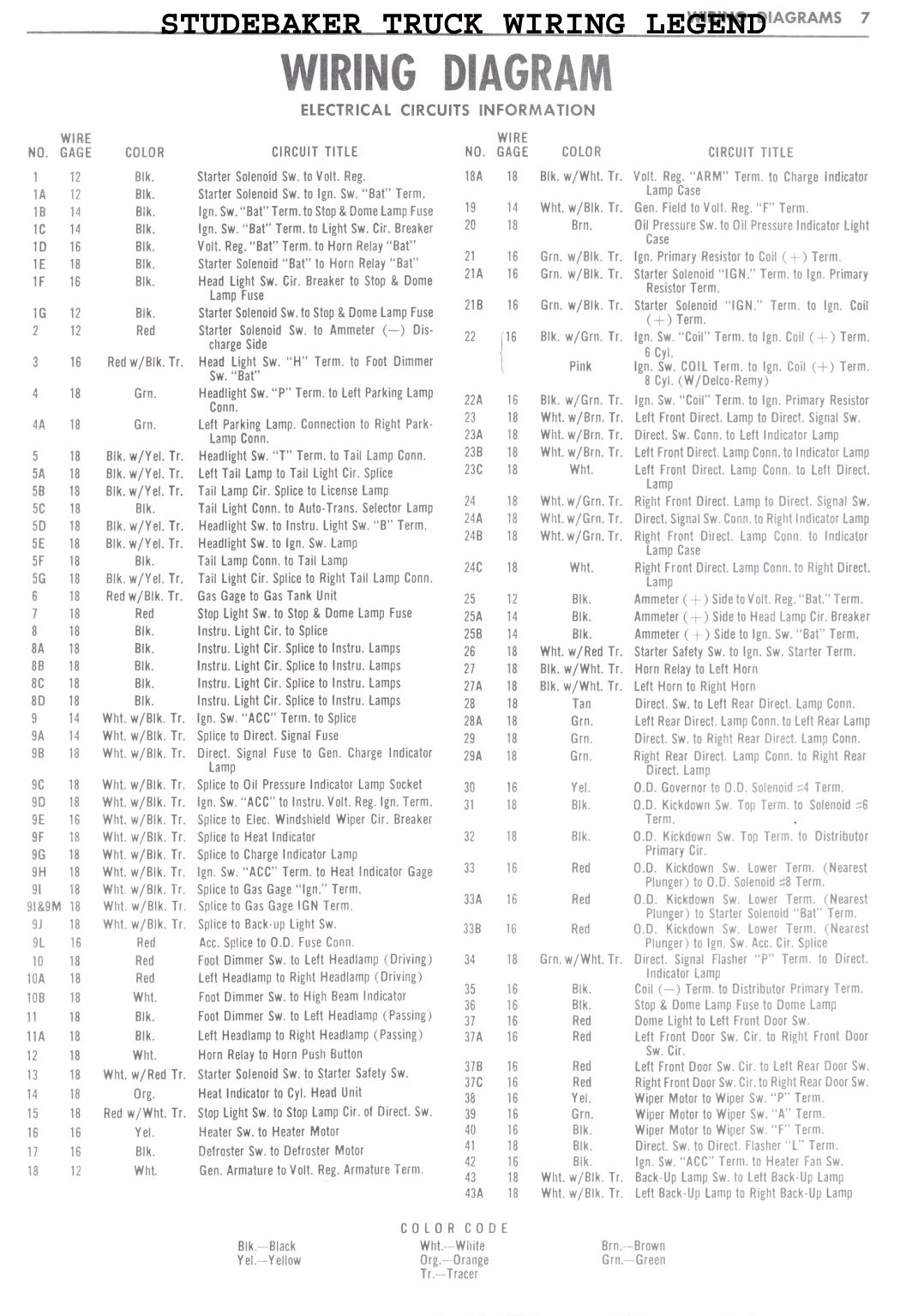

- All Truck Diagrams Legend

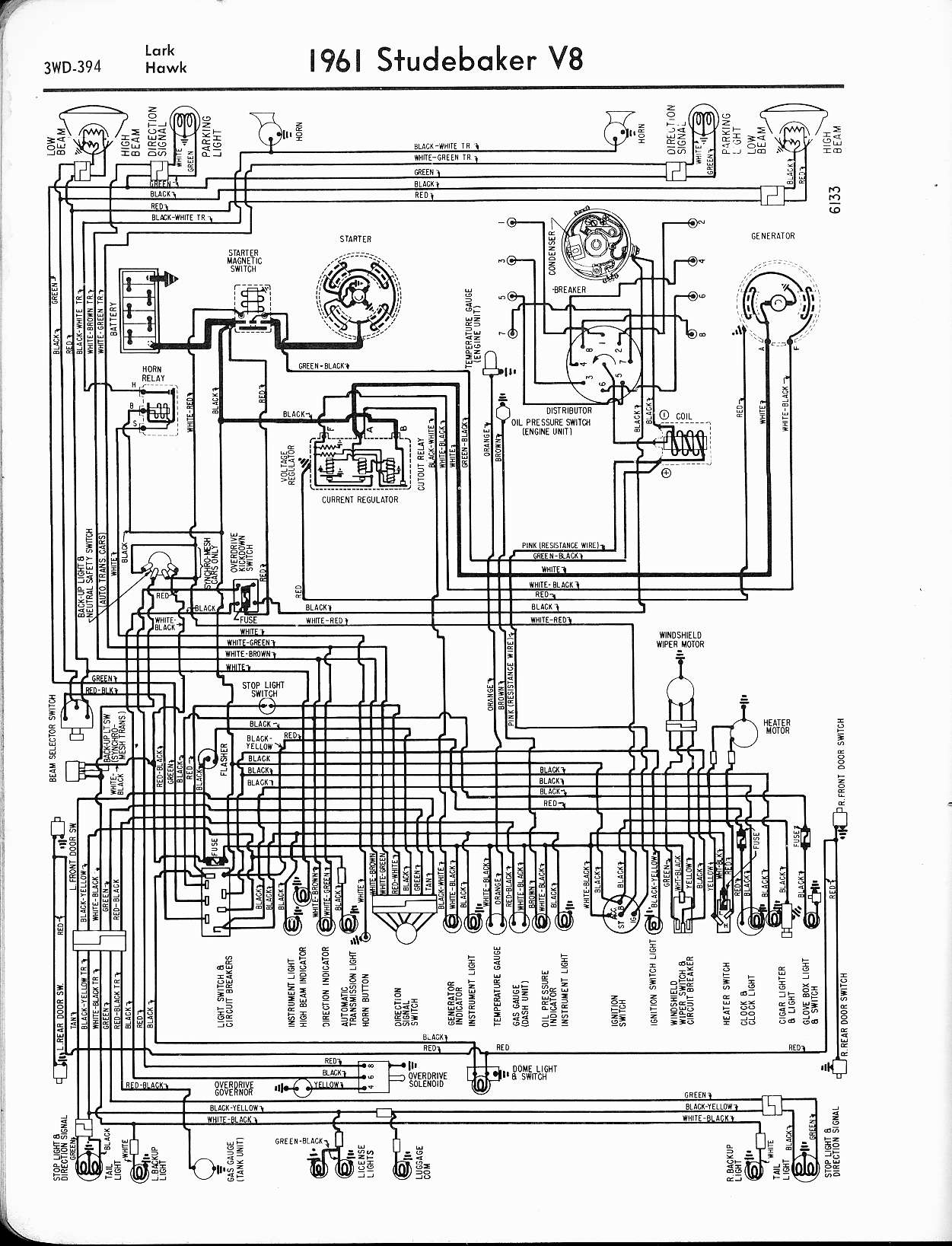

- 1961 V8 Lark, Hawk
- 1962 6 cyl Lark

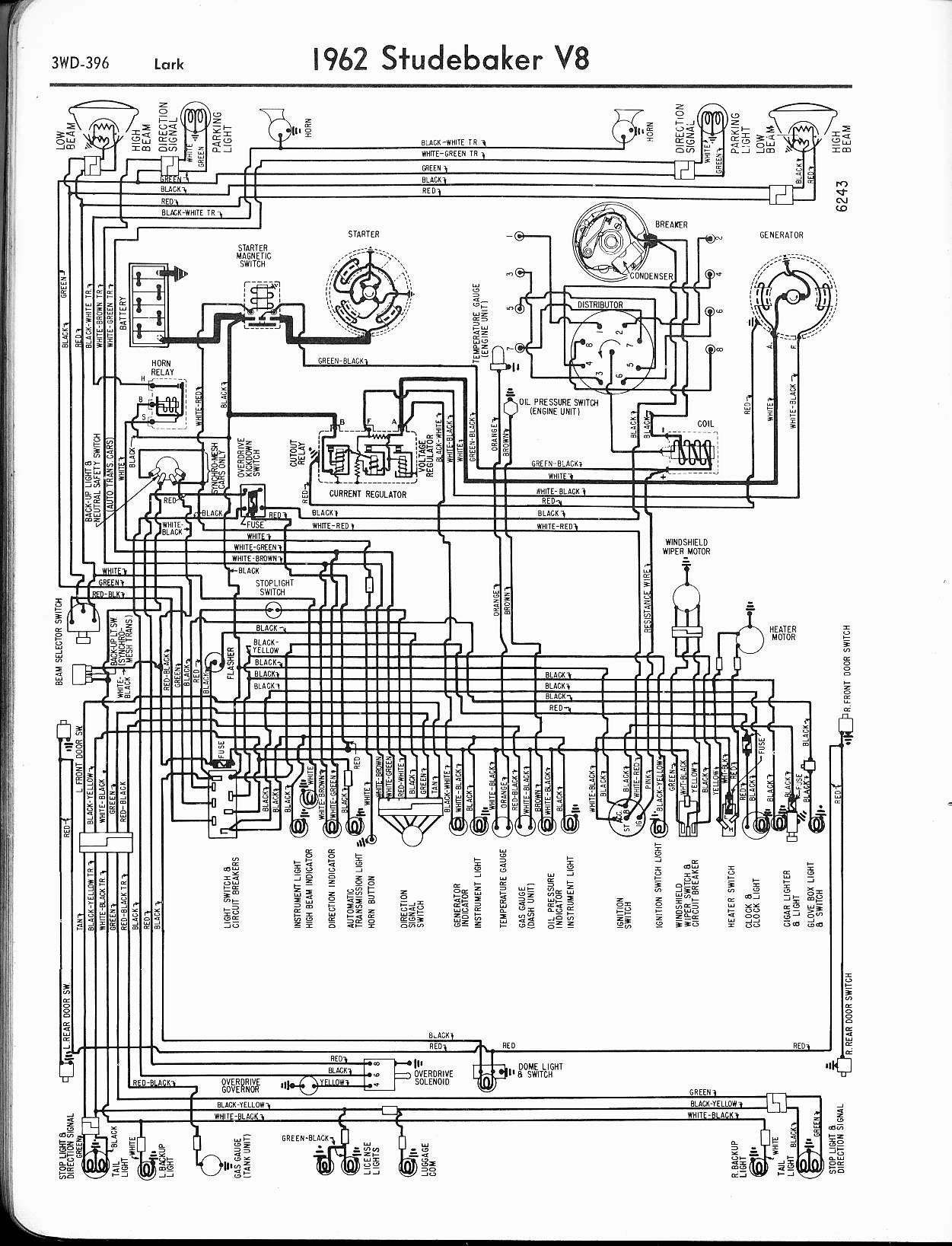

- 1962 V8 Lark

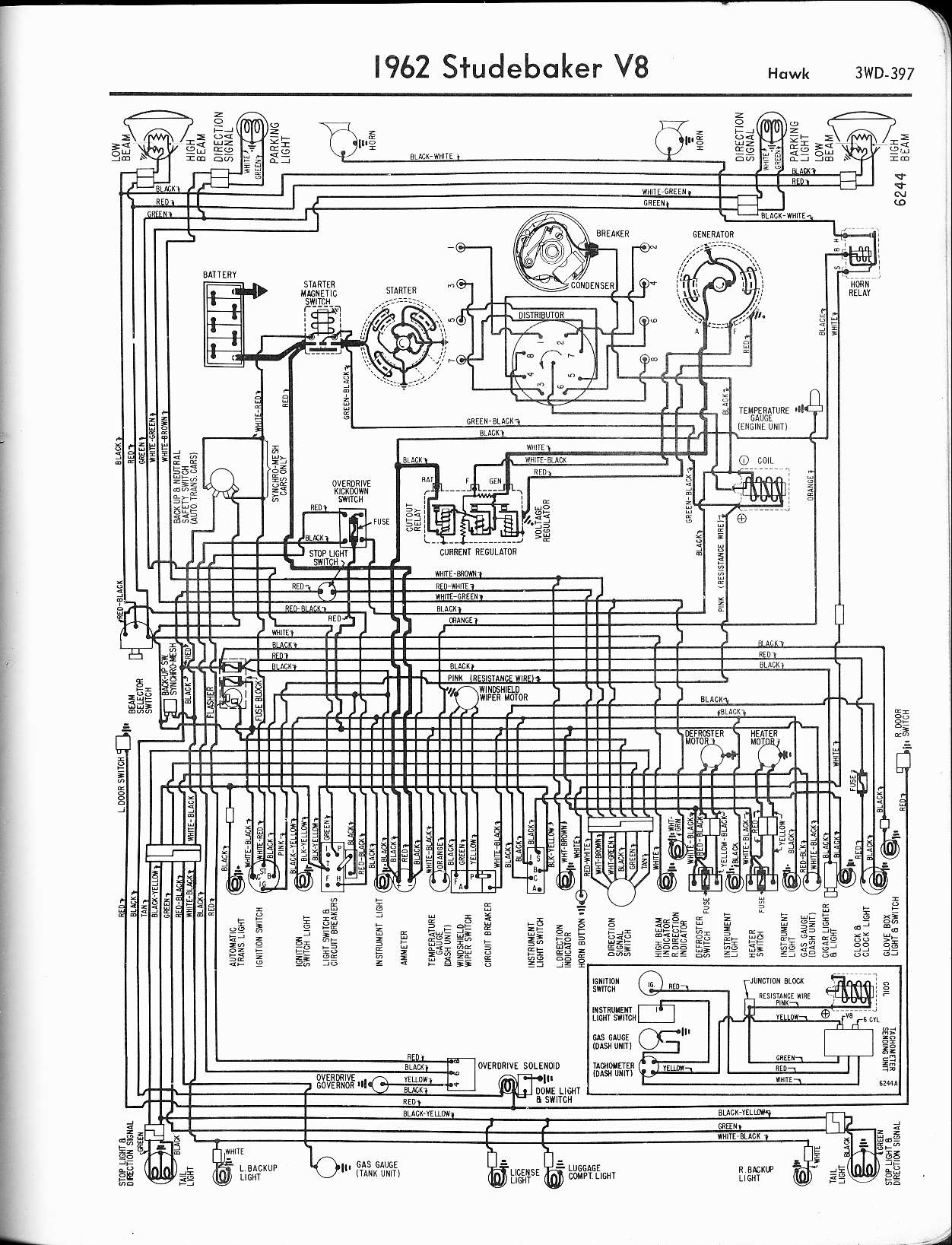

- 1962 V8 Hawk

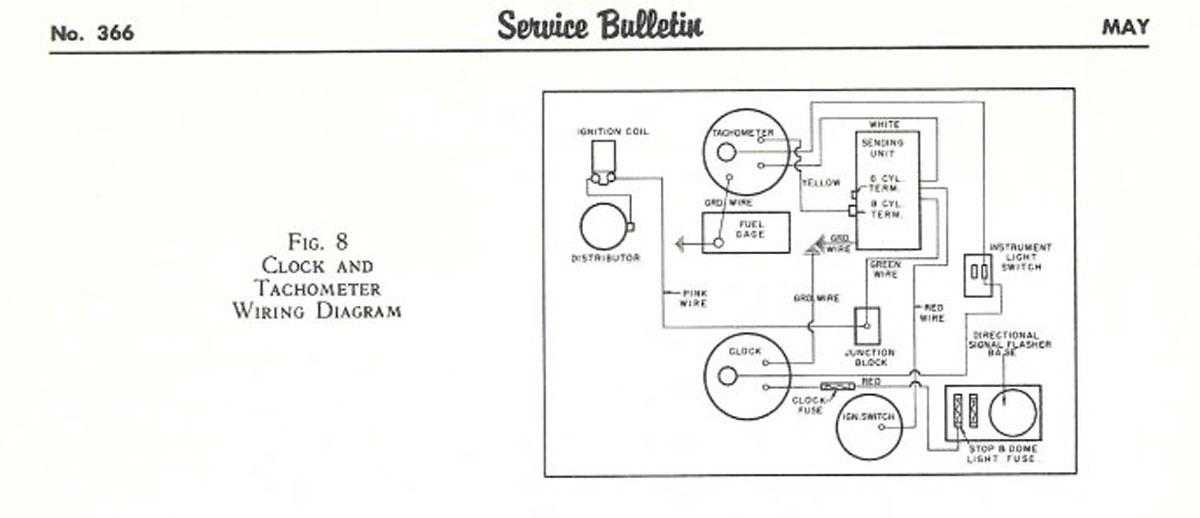

- 1962 Hawk Tachometer And Clock

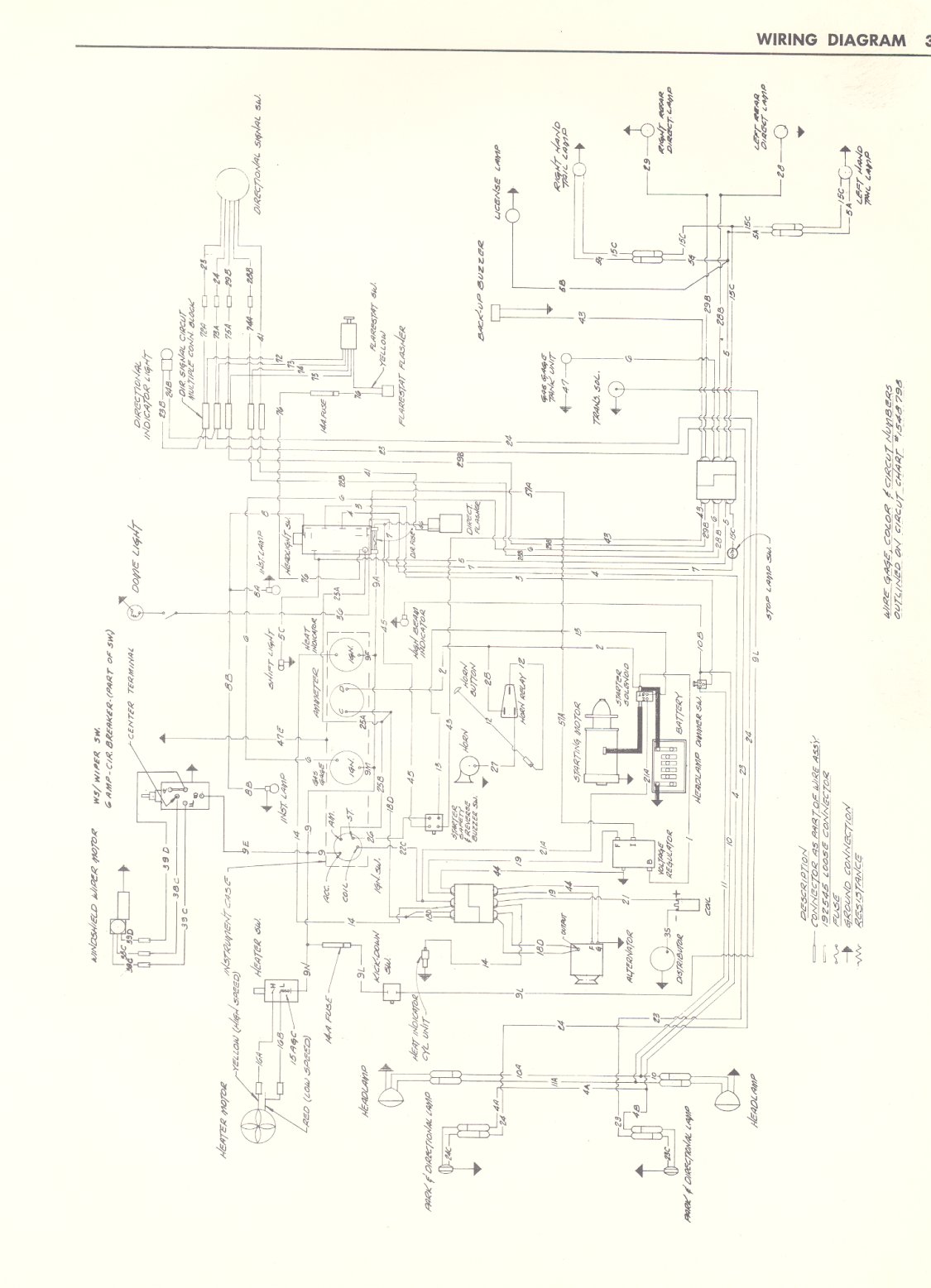

- 1964 Postal Zip Van - 8E5-FC Model

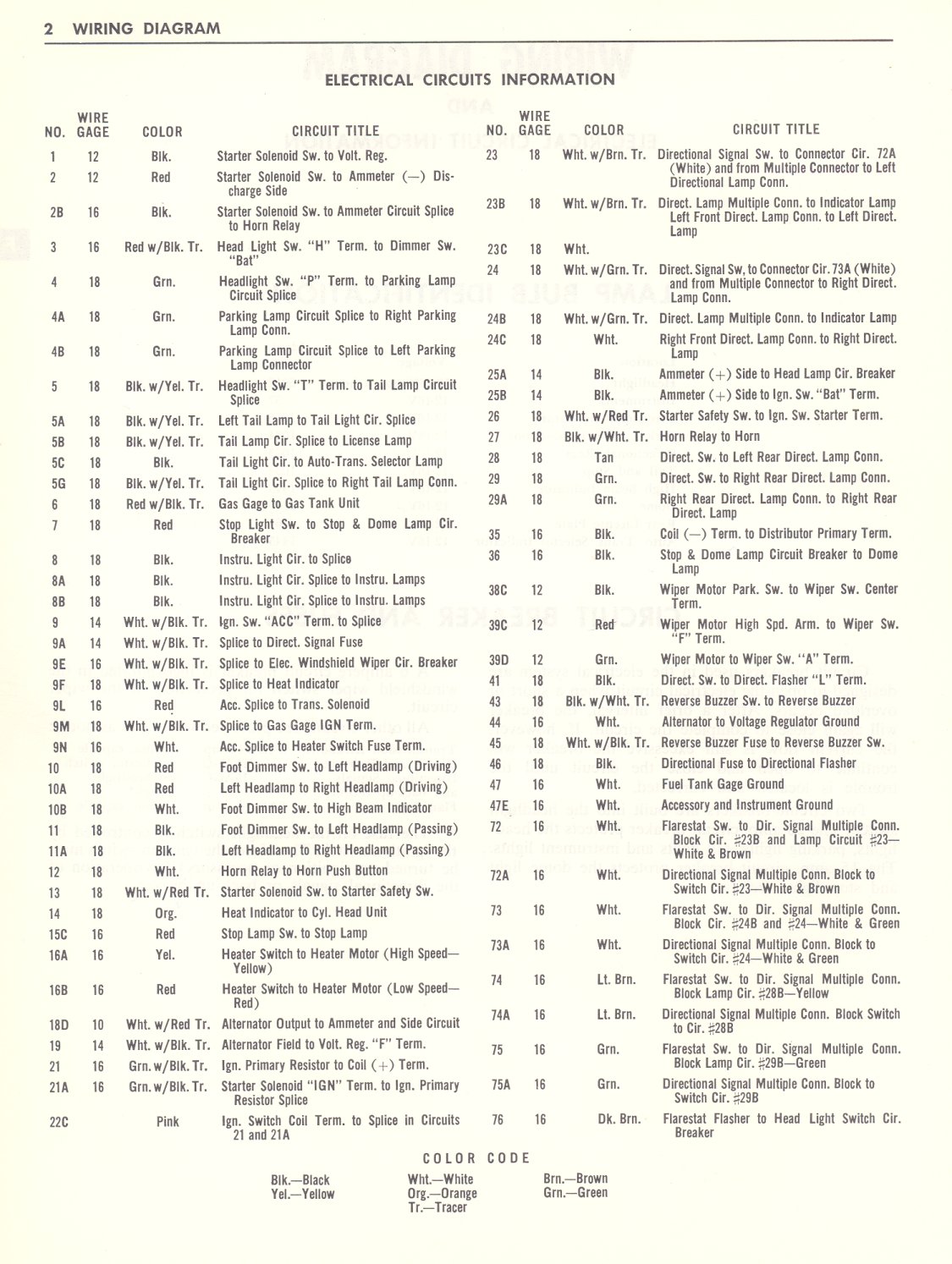

- 1964 Postal Zip Van Wiring Diagram Legend
- 1963-64 6 Cylinder And V8 Lark, Challenger, Cruiser, Commander, Daytona, Color PDF file

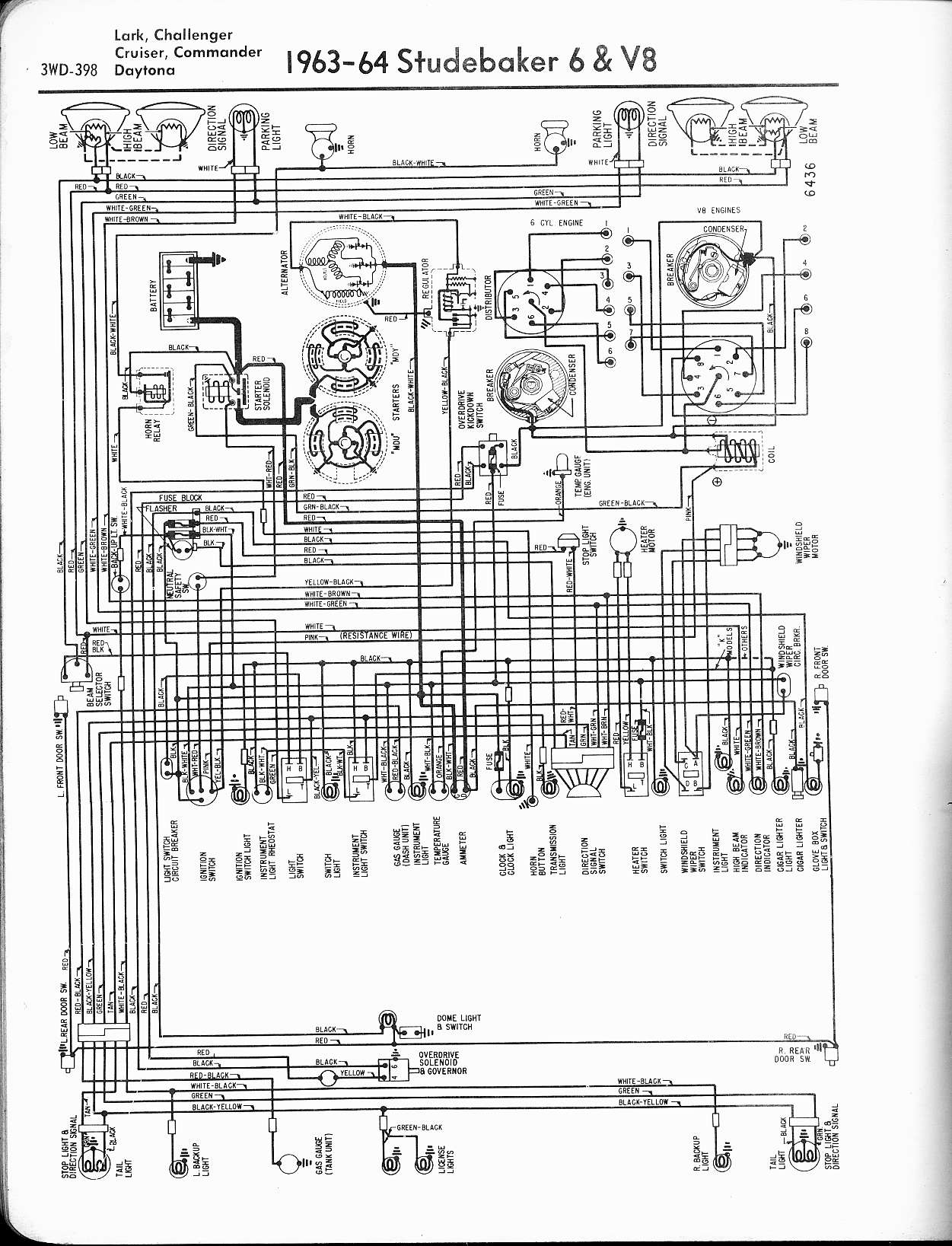

- 1963-64 6 Cylinder And V8 Lark, Challenger, Cruiser, Commander, Daytona

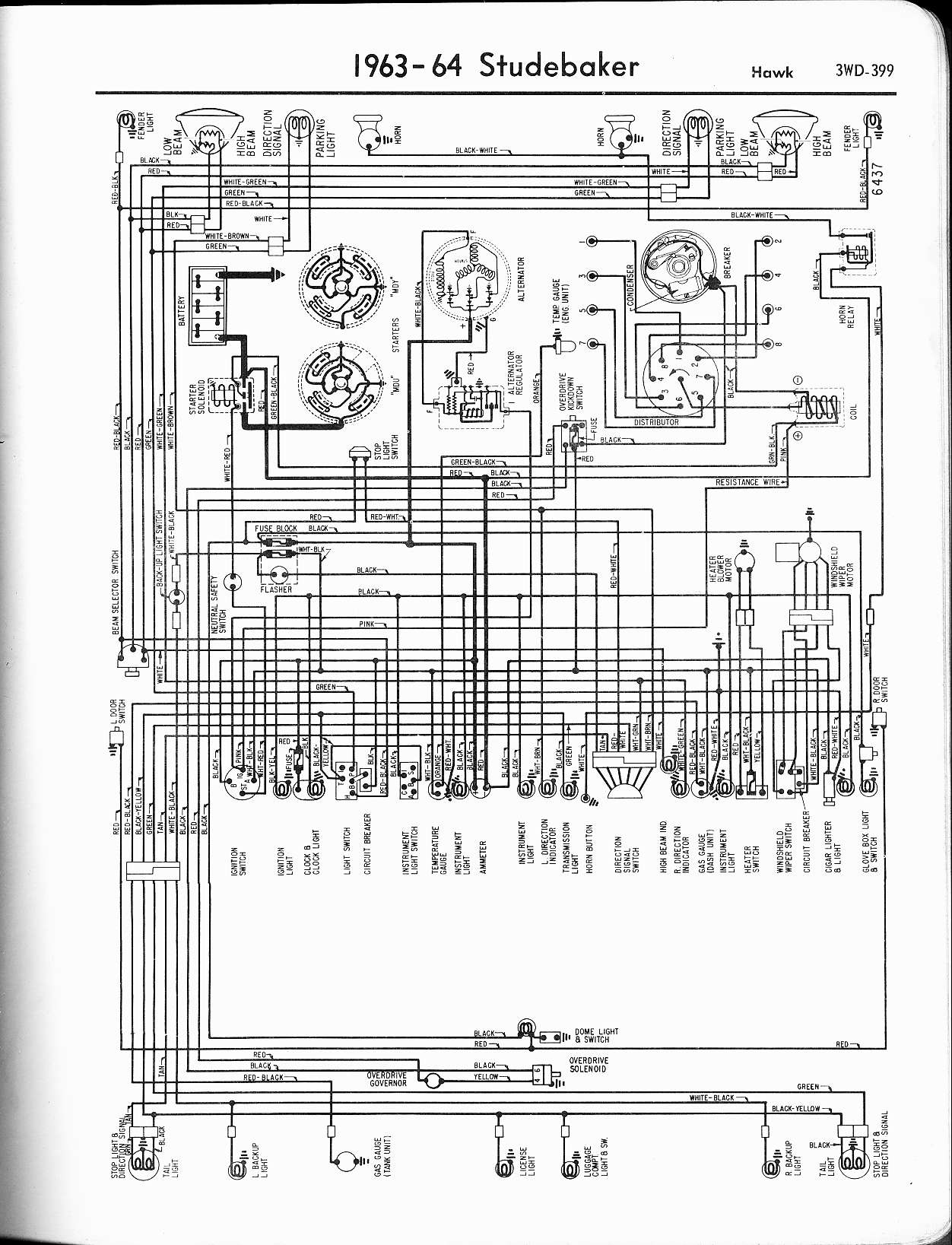

- 1963-64 Hawk
- 1963 GT HAWK DASH PICTURES
- Wiper Motor Prestolite Help

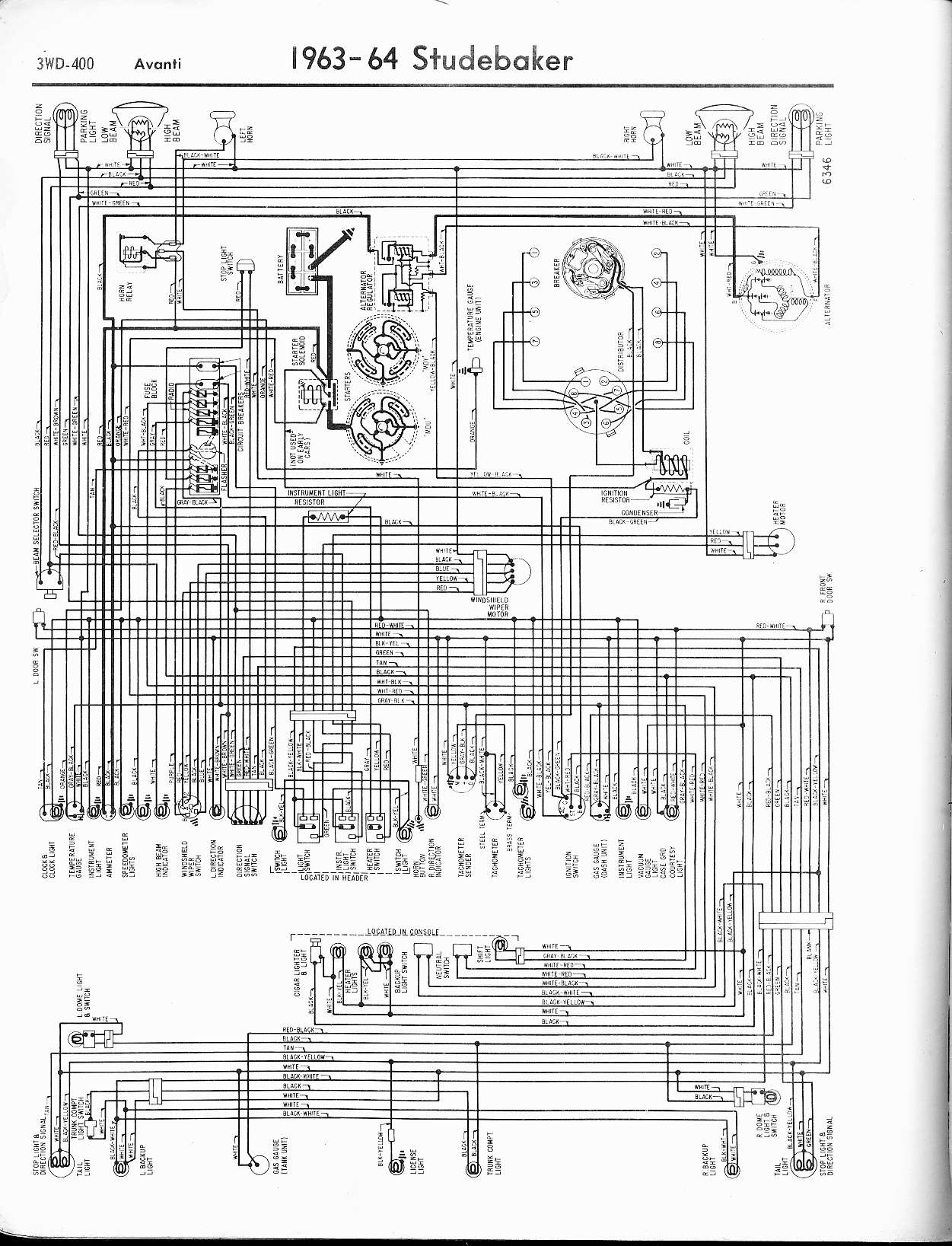

- 1963-64 Avanti

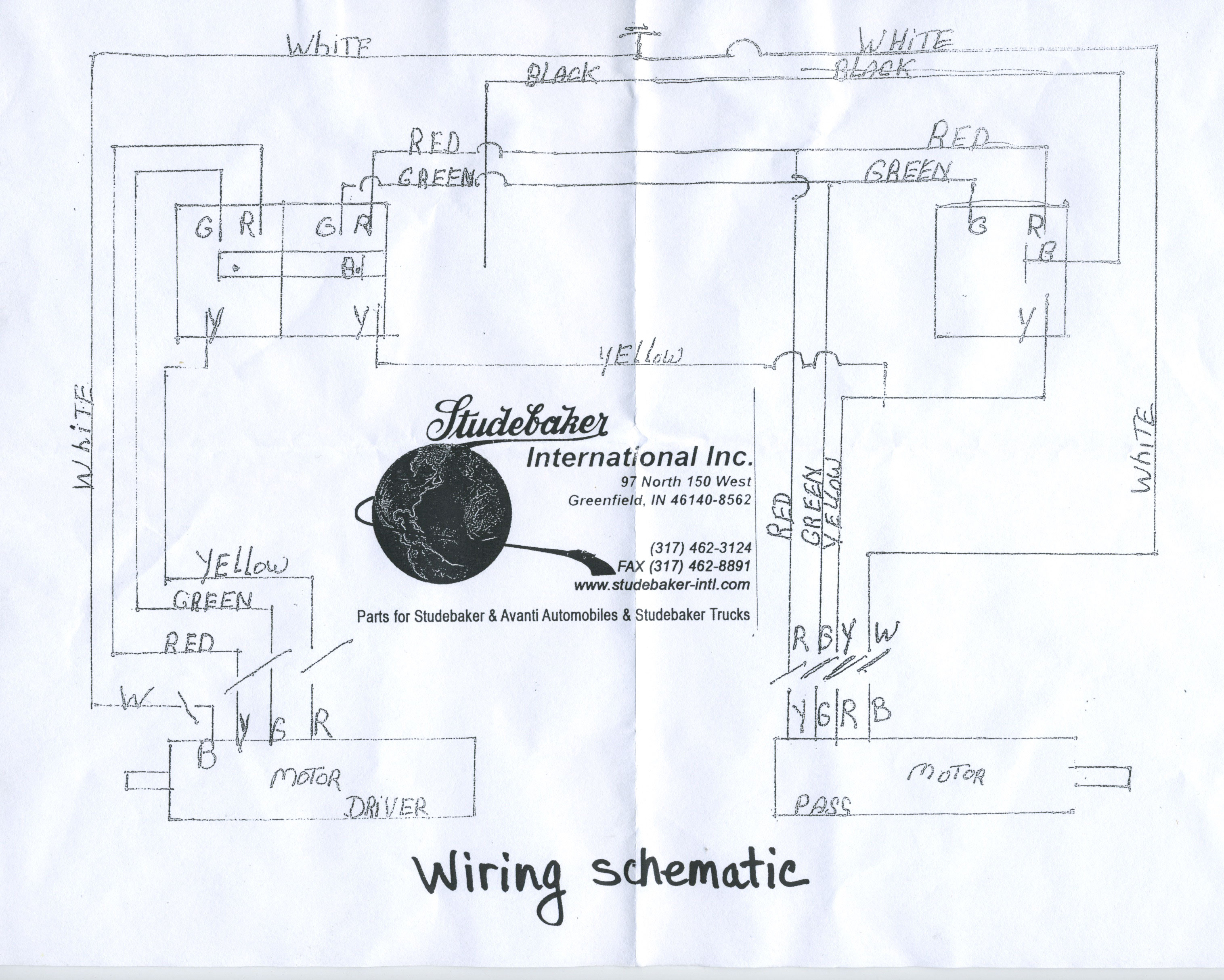

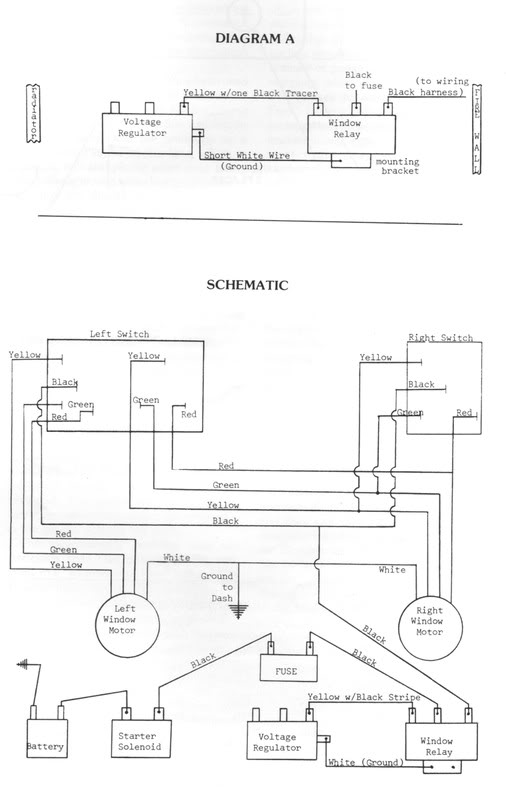

- 1963-64 Avanti Power Windows
On a 1963-1964 Avanti window motor, there is the white for ground, black for power, then a yellow and a green for up and a red and green for down. Just make sure it's grounded and make sure the green is connected along with the red or yellow. If you neglect the green wire, you'll fry the motor very quickly, as it is instrumental in reversing the polarity of the windings to provide the direction
HOW TO WIRE AN AVANTI WIPER SWITCH.
The wiper switch has five terminals, two of them are double spade.
The switch terminals are marked F1, F2, P, A, and B
The wires connect as follows; F1 Red, F2 Yellow, P Blue, A Black, B Purple - 1963-64 Another Avanti Power Windows Diagram

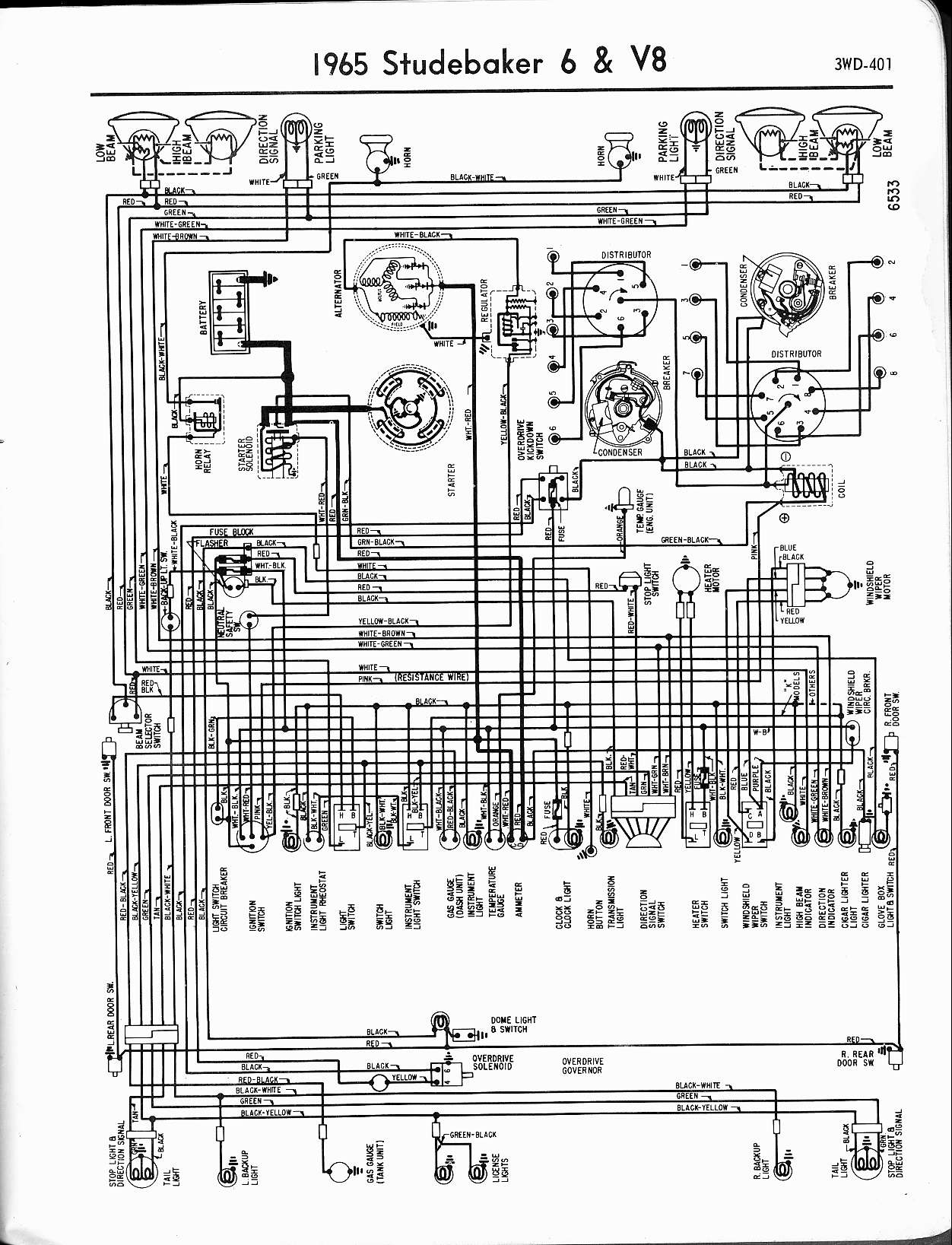

- 1965 6 Cylinder And V8

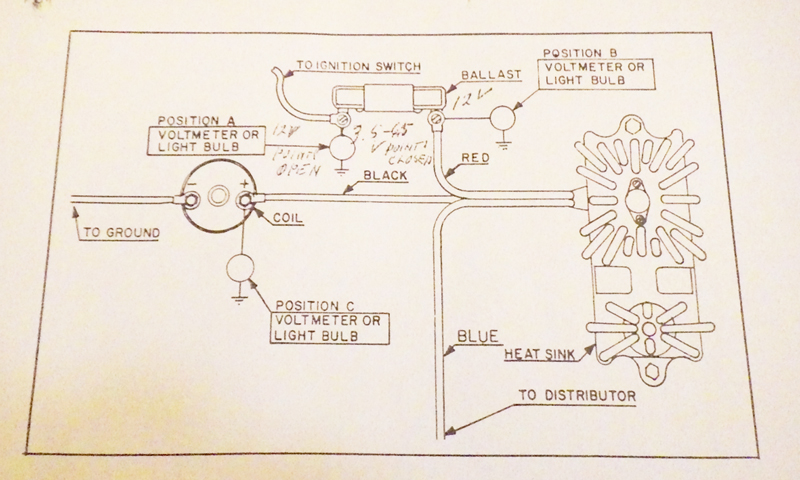

- 1965-1966 Transistor Ignition Wiring

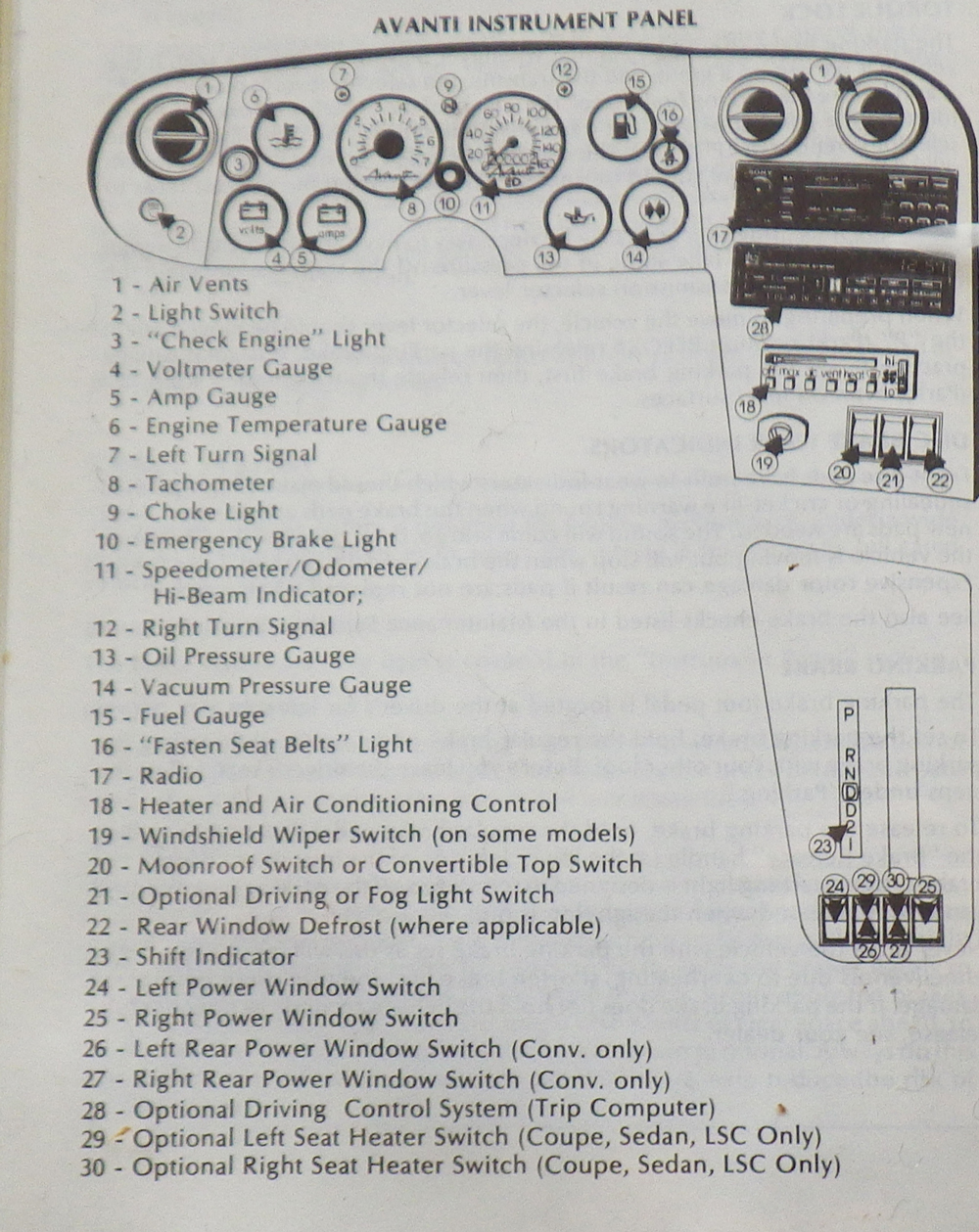

- 1988 Avanti Dash

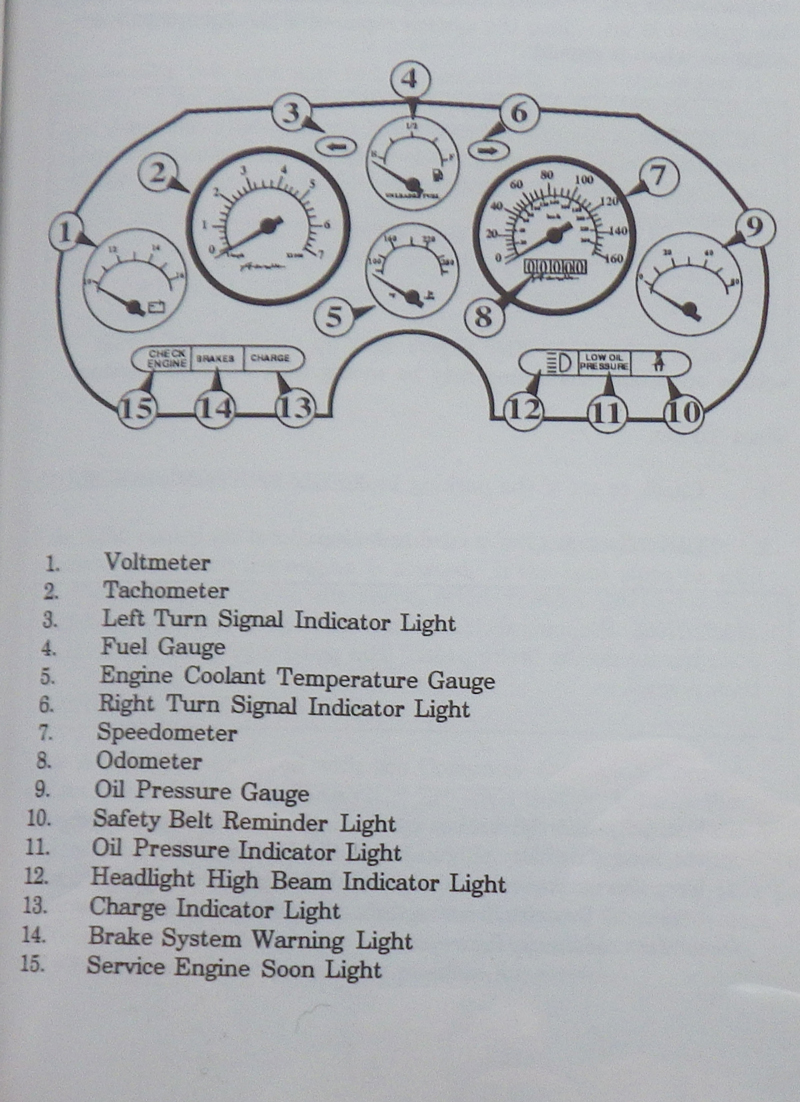

- 1990 Avanti Dash
- Lark Works Website For Custom Wiring
