STUDEBAKER SELF ADJUSTING BRAKES
THIS IS A CLOSE UP PICTURE OF THE FRONT SIDE ASSEMBLED
THIS IS A CLOSE UP OF THE REVERSE SIDE OF THE SHOE ASSEMBLED

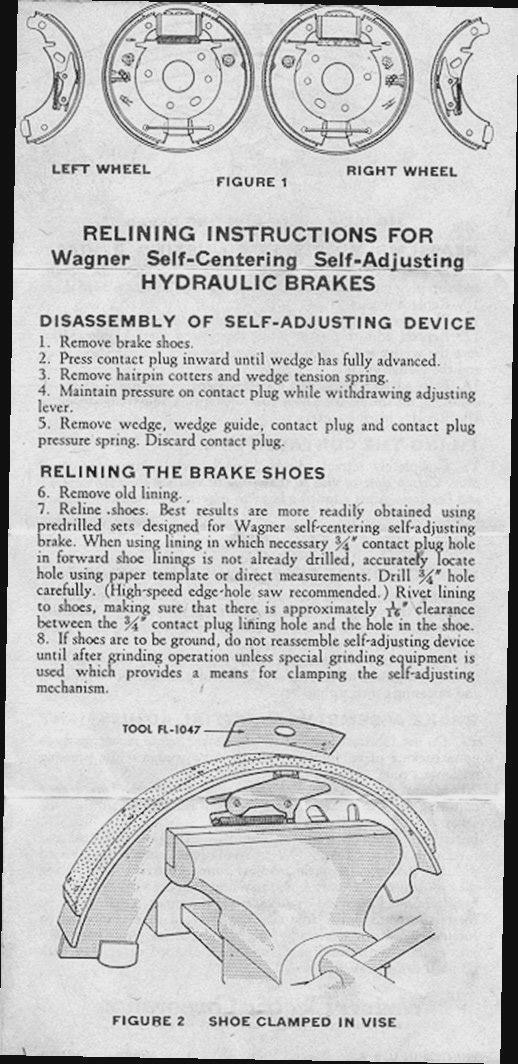

THIS IS WAGNERS RELINING INSTRUCTIONS FOR THESE BRAKES
NOTE TOOL FL-1047 IS A THIN PIECE OF STEEL .005" THICK, 1.550" WIDE, 4." LONG WITH A .750 (3/4") HOLE CENTERED ON THE LENGTH AND WIDTH.

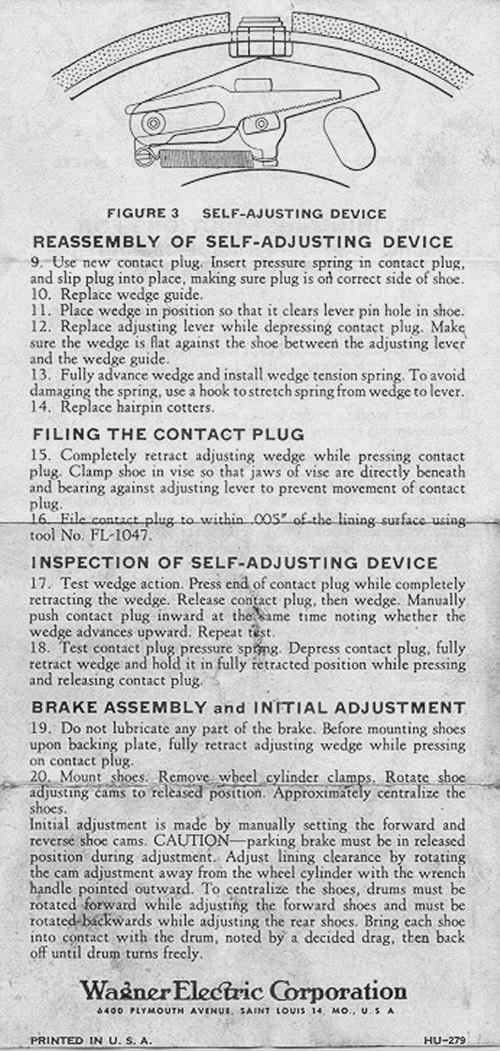

THIS IS WAGNERS SELF ADJUSTING ASSEMBLY INSTRUCTIONS
